Chapter 5 _______________________________________________________________ Calibration

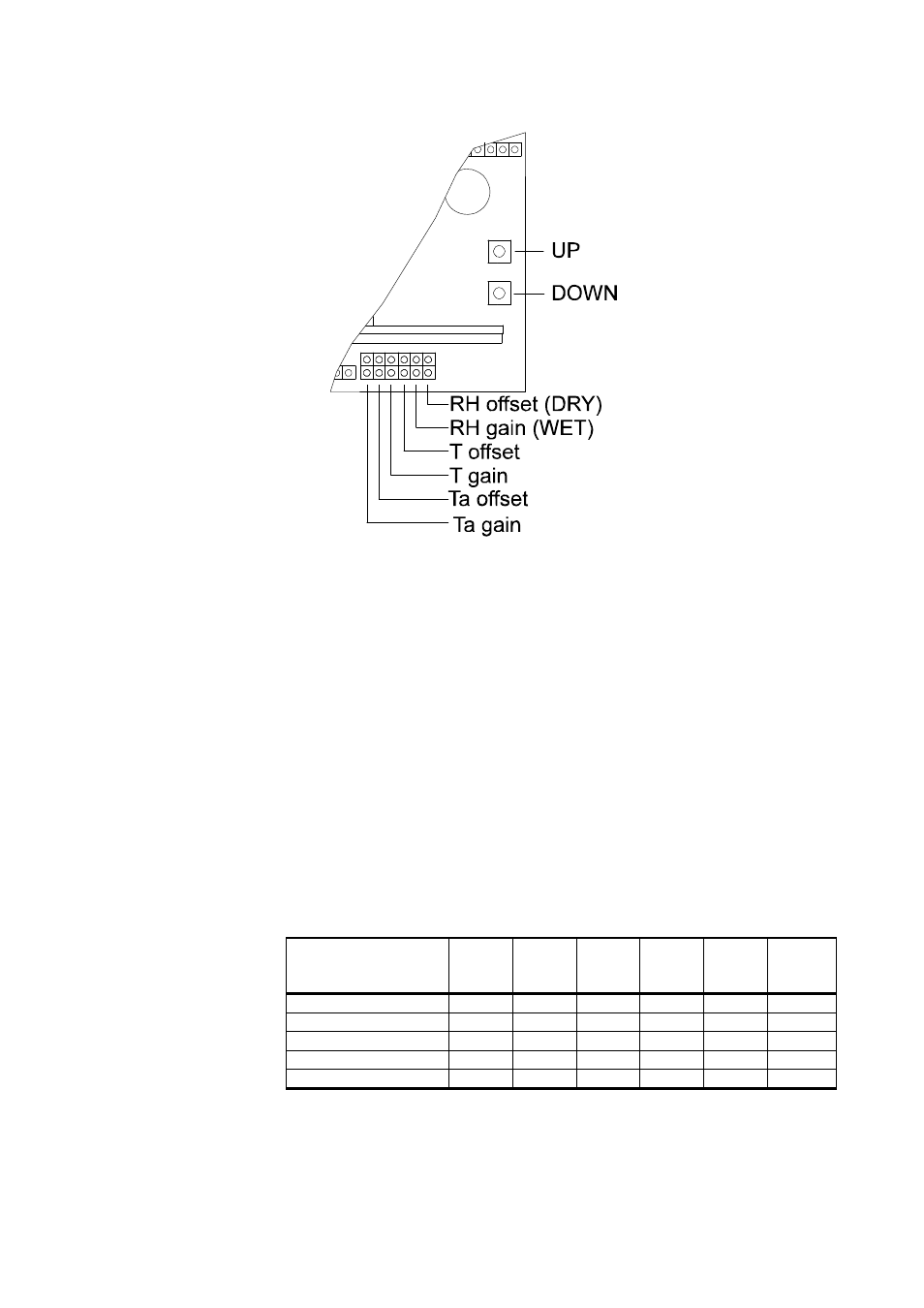

Figure 5
Calibration Pins and Pushbuttons
With the jumper connected to the RH gain pins, each pressing of the UP
or DOWN button changes the value approximately 0.05 %RH at
75 %RH. With the jumper connected to the RH offset pins, each pressing
changes the value approximately 0.05 %RH.
With the jumper connected to the T offset pins, each pressing of the UP
or DOWN button changes the value 0.05 °C or 0.05 °F in all
temperatures. With the jumper connected to the T gain pins, each
pressing changes the value 0.05 °C or 0.05 °F in the temperature
currently prevailing in the process.
Calibration Table
Table 5
Greenspan's Calibration Table with Output Values
According to the Chosen Scale
Temperature
LiCl
°C
°F
%RH
15
59
*)
20
68
11.3
25
77
11.3
30
86
11.3
35
95
11.3
4 ... 20 mA
mA
5.81
5.81
5.81
5.81
0 ... 20 mA
mA
2.26
2.26
2.26
2.26
0 ... 1 V
V
0.113
0.113
0.113
0.113
0 ... 5 V
V
0.565
0.565
0.565
0.565
0 ... 10 V
V
1.13
1.13
1.13
1.13
