3.3 Grounding
Open the lid and mount the cable bushing set 18941HM. Do the grounding
according to Figure 3.3. When connecting the signal cable to the transmitter
housing, fold the cable braid between the brass disk in order to achieve the
best possible EMC performance. Do not leave the bare shield of the
connected wires so that it can shortcircuit the electronics!
(If the cable diameter is less
than 7mm, use a shrinking
tube or an adhesive tape)
cable
braid
flexible wires 0.5 mm²
(AWG 20), stranded wires
recommended
D = Ø 7...10mm
3
brass
disks
25
rubber
ring
nut
brass disks
140
165
shielding tube
braid

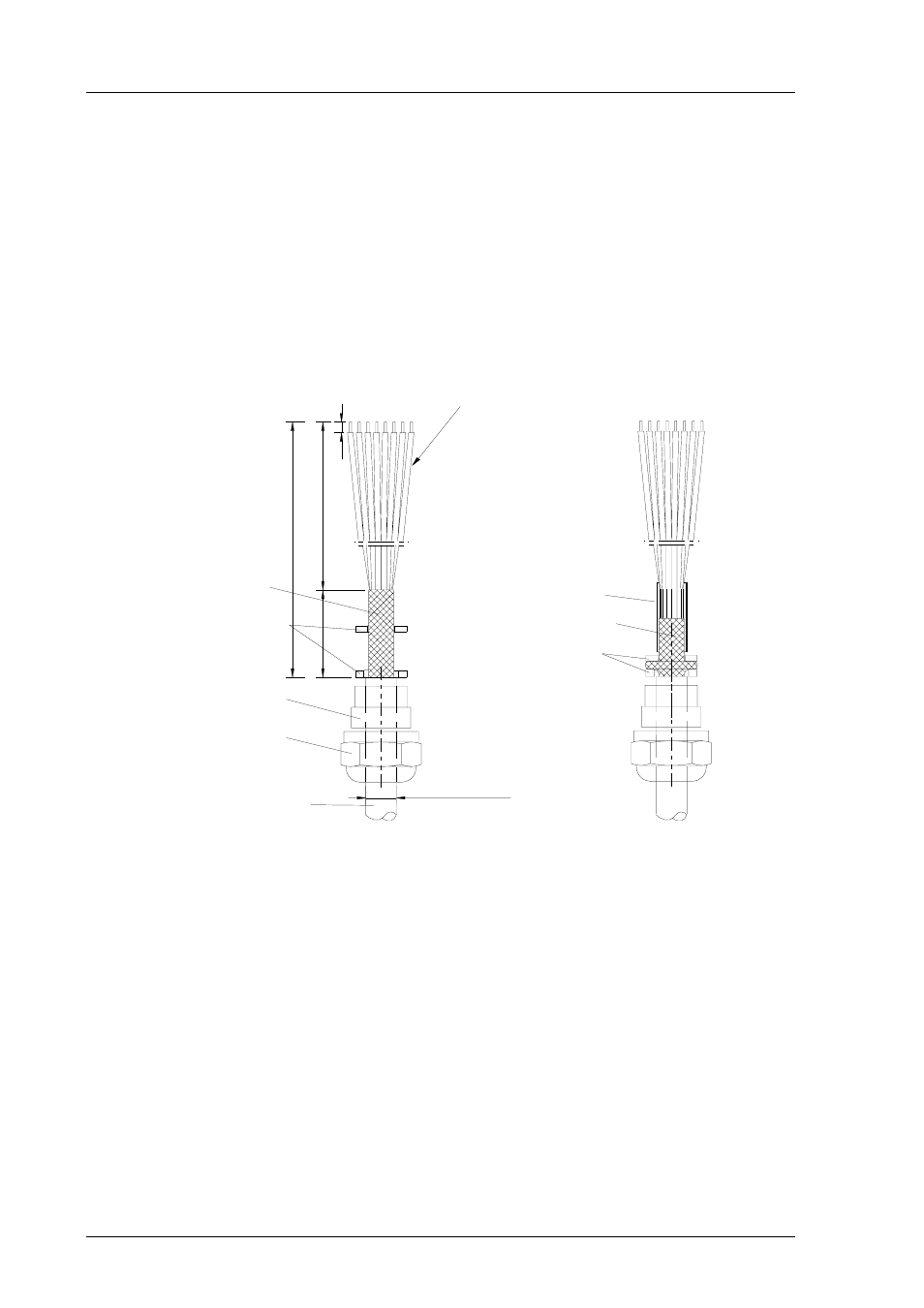

Figure 3.3 Signal cable grounding with bushing 18941HM
