State GTS-710-PIEA - Manual (Page 23)

- 23 -
The dark squares indicate the direction
the dipswitches should be set to.
D) Normal Control (Default setting): No.6 and No.7 OFF:
Feature: This mode provides no special pump control. The pump operation can only be
turned ON and OFF by the remote controller.
Function: If a pump is connected to the pump control terminal and both No.6 and No.7 are
OFF, the pump will be made to run all the time as long as there is a power supply to the
water heater. The pump will stop when the remote controller is turned off. Water in the loop
will be maintained at set temperature.

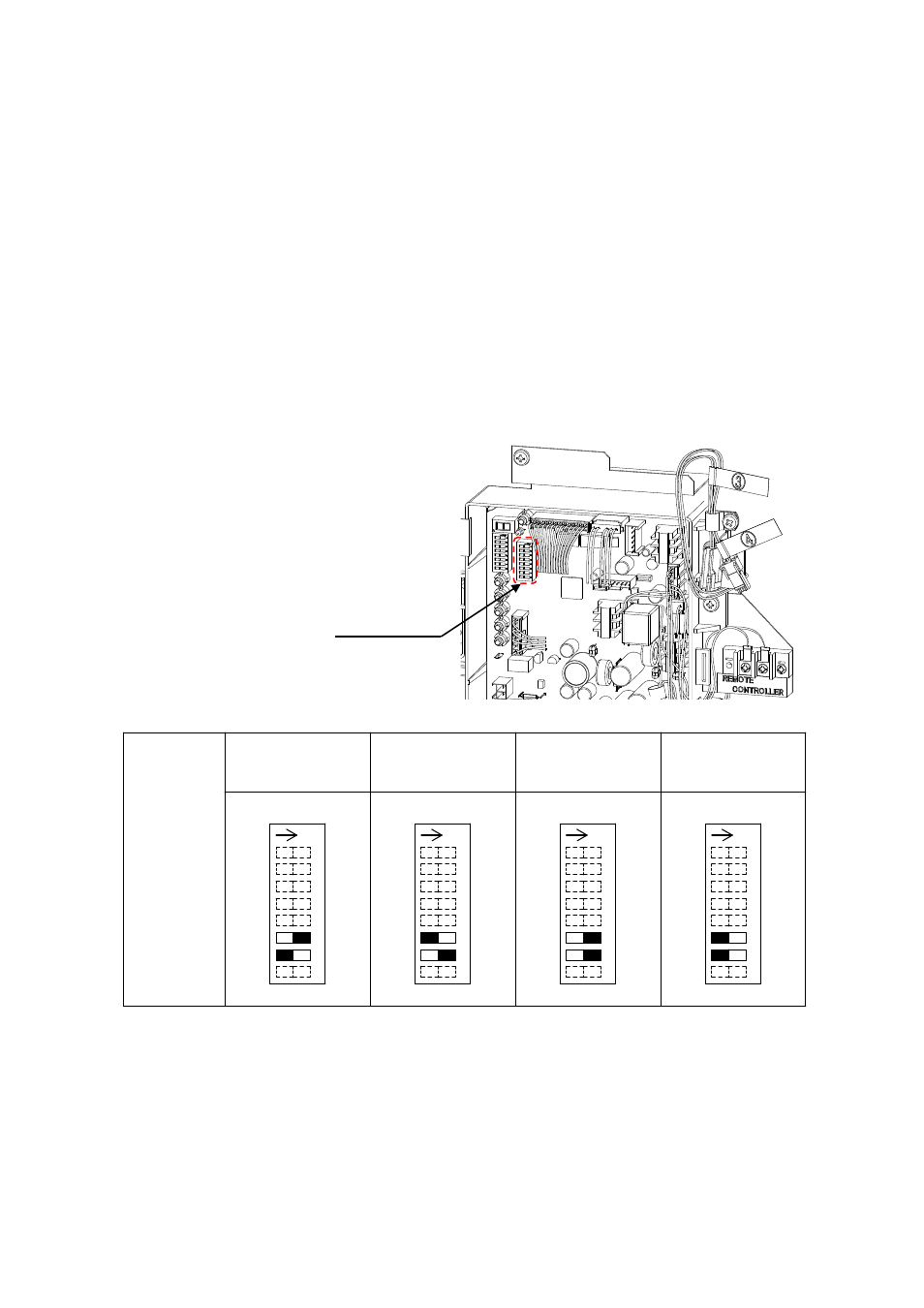

Dipswitch settings for the Pump control mode
A) Recirculation
Control
R
ight bank
of dipswitches
B) Storage Tank
Circulation
Control
C) Energy
Conserving
Recirculation
D) Normal
Control
(Default)
1
O N
23
45
7
8
6
1
O N
23
45
7
8
6
1
O N
23
45
7
8
6
1
O N
23
45
7
8
6
Right bank of
dipswitches
