6

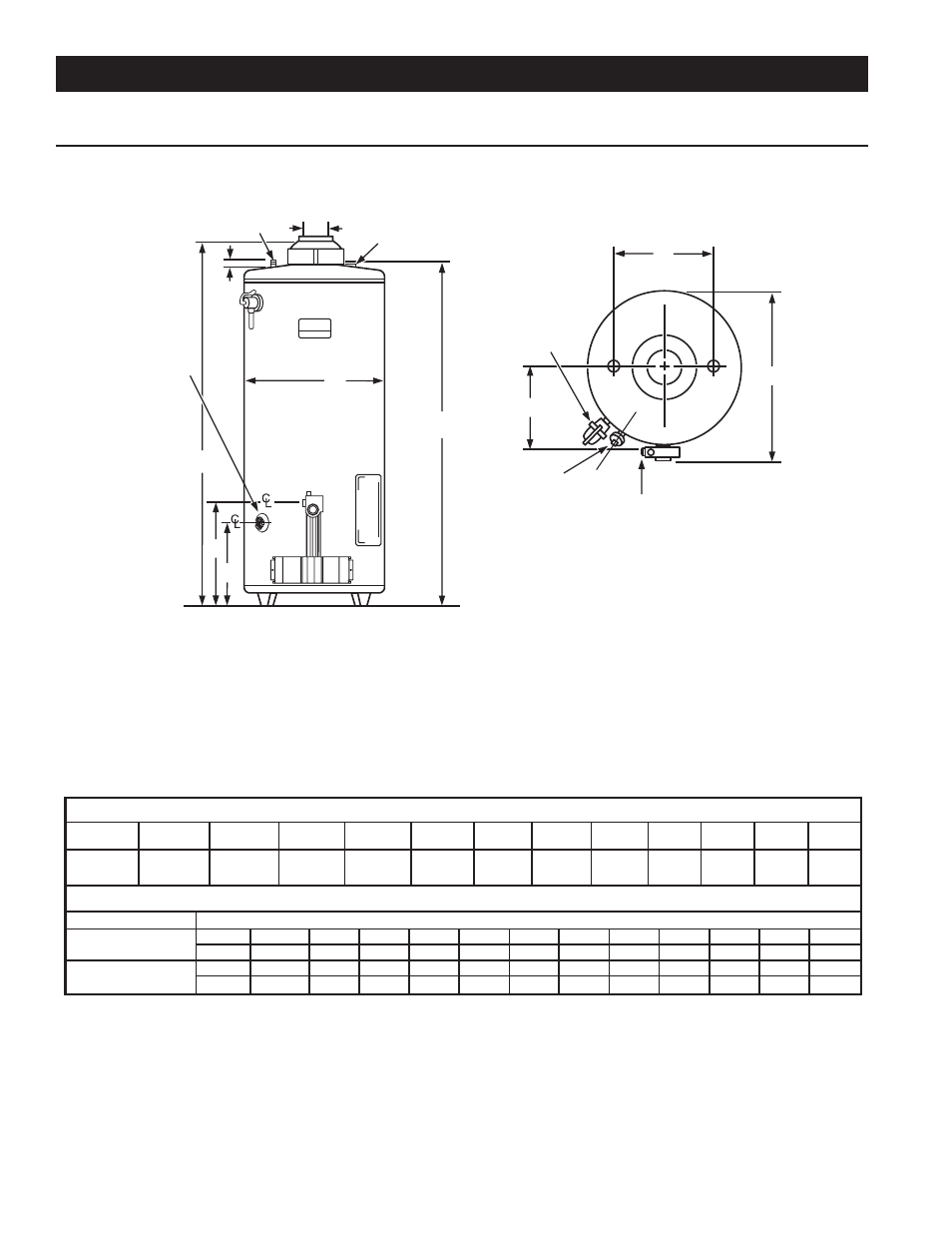

rouGh In dIMensIons
InstallatIon consIderatIons
fIGure 1.
K
HOT WATER
OUTLET
DRAIN
VALVE
HOT COLD
TOP VIEW
L
GAS INLET
INSTALL IN ACCORDANCE WITH LOCAL CODES
DRAIN VALVE
K
COLD WATER
INLET
F
H
J
B
D
A
E
M
C
TEMPERATURE
AND PRESSURE
RELIEF VALVE
C
recoverY ratInGs
dIMensIons
taBle 1.
Input rate recovery in us Gallons/hr or liters/hr at Indicated temperature rise in fahrenheit or celsius
75,100 BTU/H
°f 30 40 50 60 70 80 90 100 110 120 130 140
GPH 246 184 148 123 105 92 82 74 67 62 57 53
22 kW
°c 17 22 28 33 39 44 50 56 61 67 72 78
lPH 927 695 557 462 397 347 309 278 252 233 214 198
Recovery ratings based on 81% thermal efficiency.
units a B c d e f G h j K l M
Inches
cM
70 1/2
179.07
66 1/2
168.9
30 15/16
78.59
27 3/4
70.5
15 3/16
38.6
4
10.2
15 3/4
40.0
16
40.6
1 1/4
3.2
1 1/4
NPT
1/2
NPT
11 15/16
30.3
