State GPH-90N User Manual
Page 56
0610
56
319172-000 Rev. 00
Secure the exhaust elbow with the two screws.
Carefully reconnect the two wires to the High-temperature
Switch.
Connect the drain tubing to the condensate trap.
Reposition the venting into the vent coupler.
Tighten the upper gear clamp to secure the venting
system to the vent coupler.
Reassemble the right side panel.
Reassemble the casing top (front).
Close and lock the door.
Reconnect the electrical power to the water heater.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Restart the water heater following the “Lighting
Instructions” found in the Operating Manual.
12.

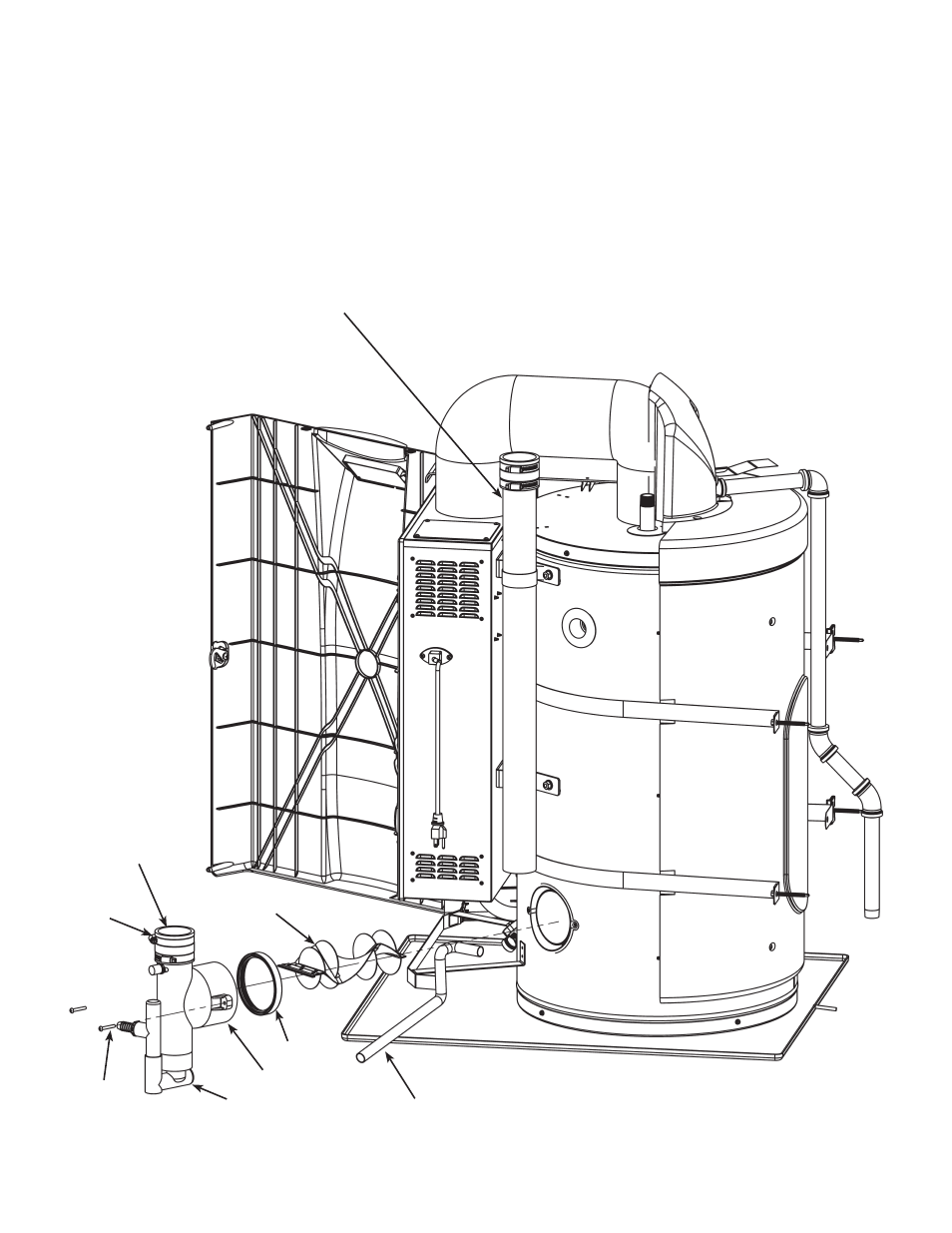

Venting System
Condensate Trap
Condensation
Baffl e
Condensate Tube
Screw
Vent Coupling
Exhaust Elbow
Gasket
Gear
Clamp
