Sol Transit Shelter Security Lighting - Manual (Page 8)

8 rev. 0212 MKTG-IM-TSSL-001
Installation and Owner’s Manual | TSSL
9 rev. 0212 MKTG-IM-TSSL-001
B
(Key Switch/PV Harness)
White & Black
C
(Battery/LED Harness)
LED Connector
Battery Connector
(Connect to Controller)
A
(Jumper) Blue
A
(Jumper) Blue
PV Plug
(Connect to PV
Harness)
PV Connector
PV Plug
(From PV Array)
+ 6V - + 6V -
+ 12V -
+ 6V - + 6V -
+ 12V -
A
C
B

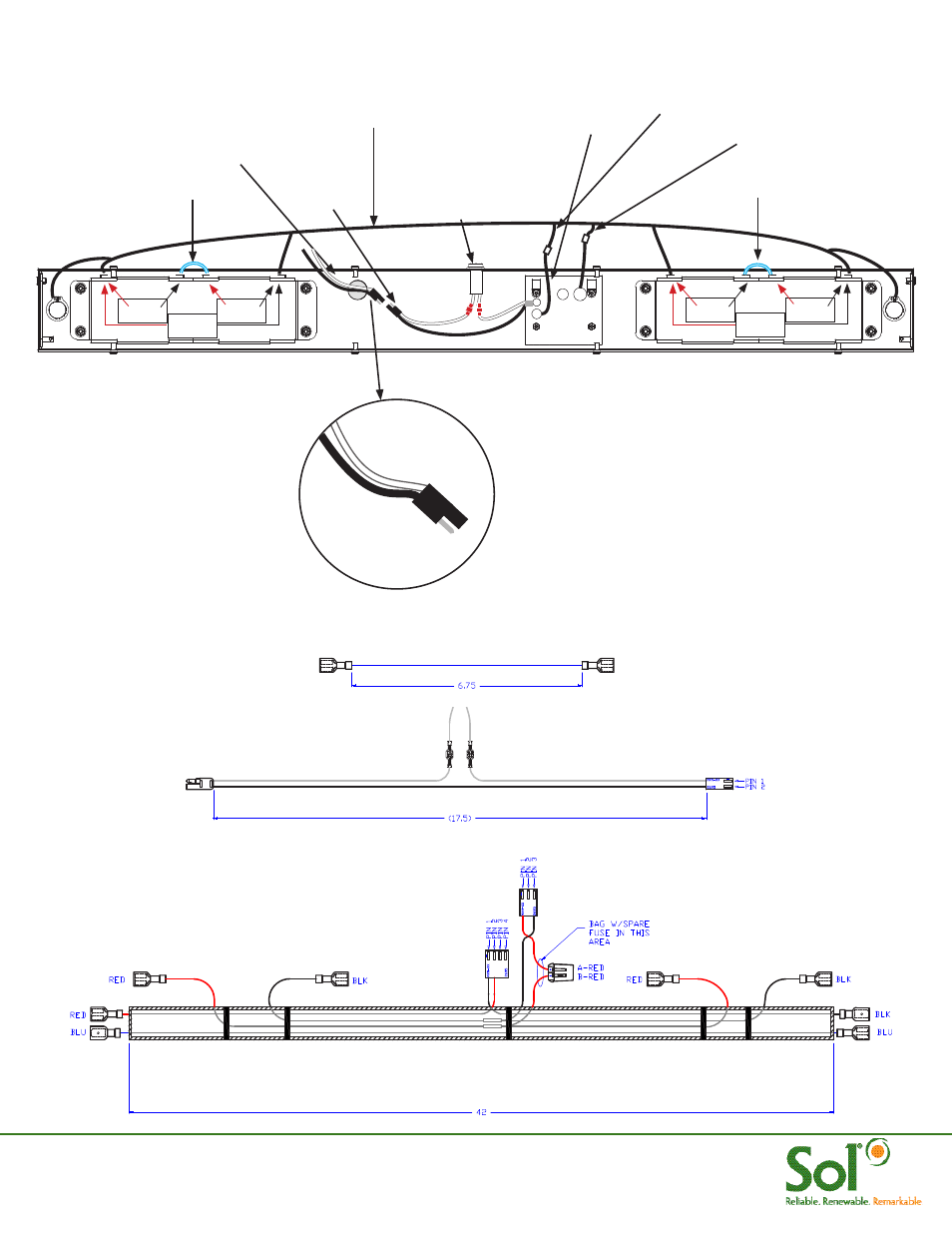

TSSL Wiring Diagram
Battery voltage (for the pair) can vary from 11.0V to 14.0V
depending on charging status and state of charge.
When the controller begins to charge the battery, the
PV voltage will measure close to battery voltage.
-
18v – 21v
(open circuit) +
