3

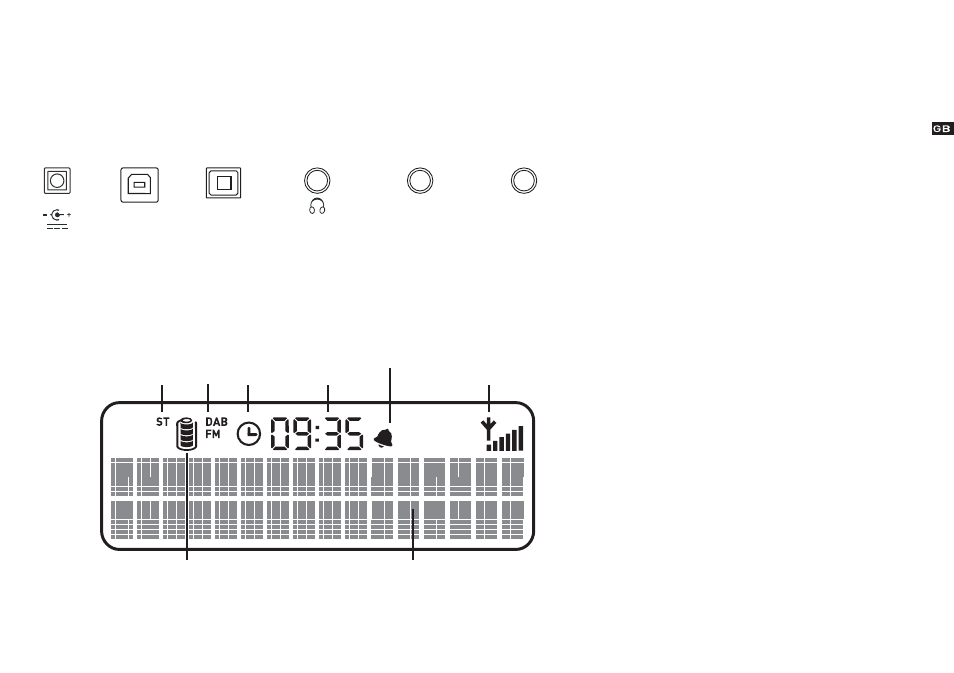

Rear panel - connectors
LCD screen
Signal strength
for current station
(6 levels, full shown)
Clock
time from
DAB signal
DAB/FM
current
mode
Timer
timer
active
ST
Stereo
station
Battery
battery charge monitor (6 levels, full shown,
lowest level flashes)
Animated when charging ChargePAK
TM .
Text area
16 x 2 character
text display area.
Alarm
alarm set
9V DC
Connect
to mains
adapter USB
Connect to
a PC for
software
upgrades Headphones
Connect to
headphones
(mutes speakers) Digital Out
S/PDIF optical
digital out
(DAB only) Line Out
Analogue output
to external amplifier
or recorder Aux In
Analogue stereo input
from auxiliary device such as
iPod, CD player, MiniDisc etc.
Line Out Aux In
USB
9V DC
Digital Out
