ADV/FX/PG2---------------------

choose category:

PG1 GRID GEN PG3

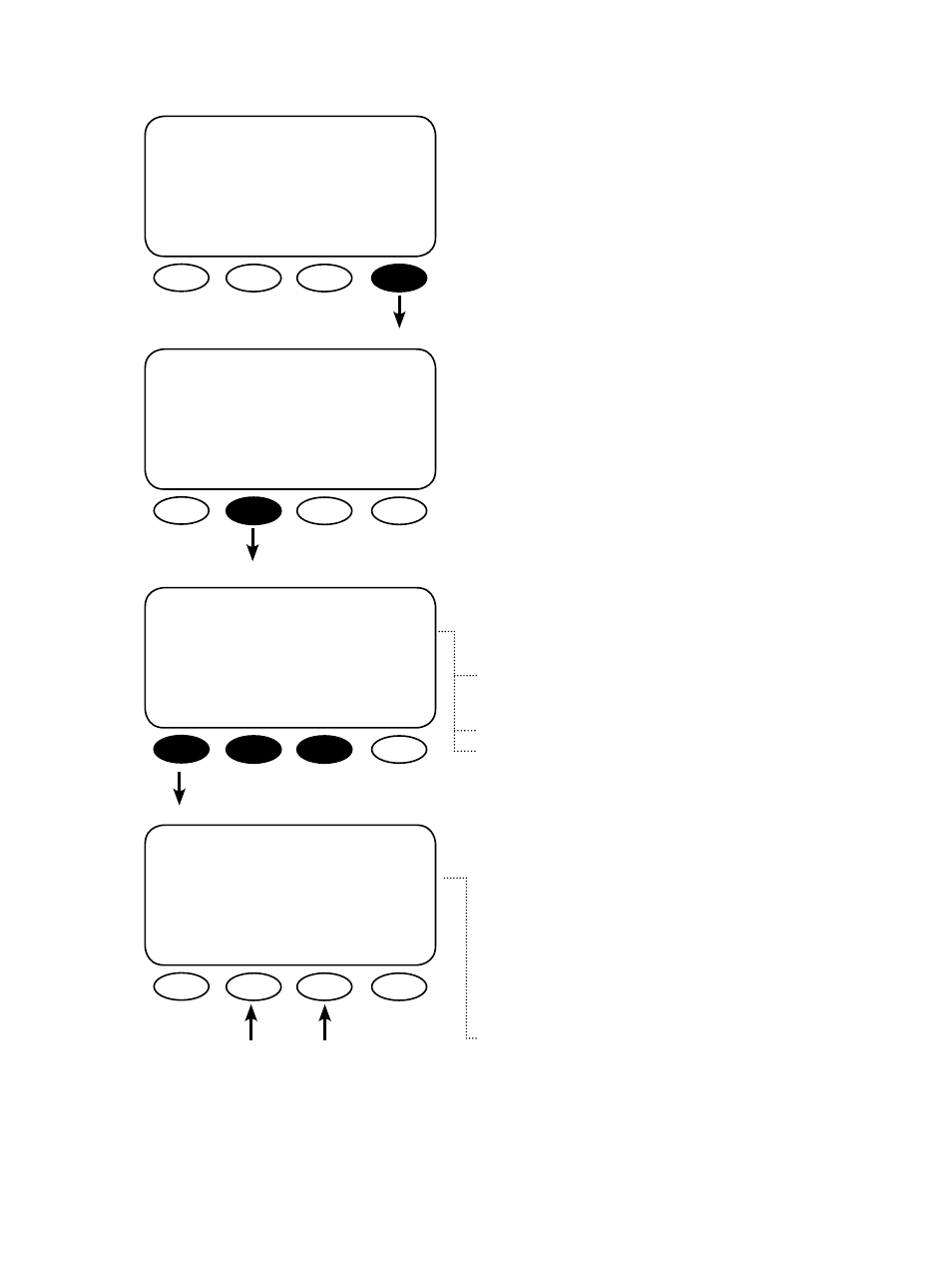

• Press the soft key which leads to the ADV/

FX/PAGE3 screen.

ADV/FX/PAGE3-----------------

choose category:

PG2 AUX STACK PG4

• On the ADV/FX/PAGE3 screen, press the

soft key to adjust the AUX output set points and
operation.

ADV/FX/AUX---------------P00

aux output AUTO
control

DOWN INC DEC PORT

Selecting the or soft keys changes

the mode of the AUX.
AUTO allows the AUX to perform a selected AUX
OUTPUT FUNCTION, determined in the following
screens.
OFF disables the AUX.
ON activates the AUX regardless of the selected
function.

Press the soft key to select on an auX

OutPut FunCtIOn


ADV/FX/AUX--------------P00

aux output Cool Fan

function

DOWN INC DEC PORT

There are nine AUX OUTPUT FUNCTIONS:
• Cool Fan
• Divert DC
• Divert AC
• AC Drop
• Vent Fan
• Fault
• GenAlert
• Load Shed
• Remote

Pressing either the or soft key will

bring up another AUX OUTPUT FUNCTION

Pressing the or soft keys
changes the aux output function.
