aC On

• With the programming completed, turn the AC

output breakers ON with the AC BYPASS on the AC
breaker panel switched to NORMAL.

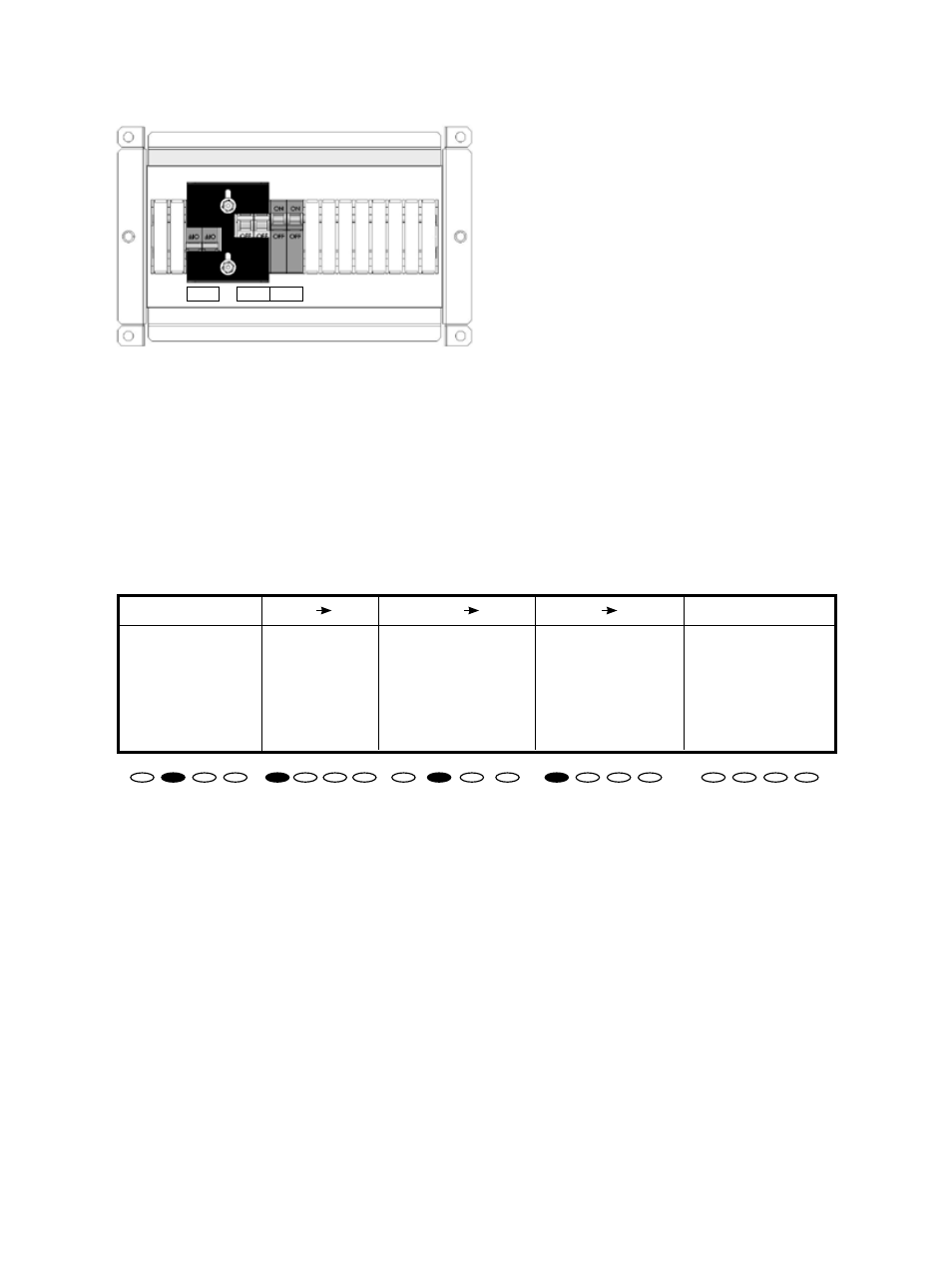

Verify the AC voltage output through the MATE following path:

PATH

MAIN-------

SETUP------------ STATUS/FX/PAGE1---------- Float P00

STATUS/FX/METER--P00

12.15:30p

choose device:

choose category:

inv 0.0Kw zer 0.0kw

output 117 vac

chg 0.0kw buy 0.0kw

voltage

SUM STATUS SETUP ADV FX CC DC MAIN MODES METER BATT PG2 DOWN STATUS PORT

DOWN UP TOP PORT

Note:

If you are using the FW-X240 Auto Transformer for step-up functioning, turn on its breaker now.

Otherwise, go to the next step.

BYPASS

OUTPUT INPUT

15
