GPI and the electric gear pump are registered trademarks of Great Plains Industries, Inc.
© 2009 GREAT PLAINS INDUSTRIES, INC., Wichita, KS
Rev. A 921589-08 Printed in U.S. A. 05/09
5252 East 36th Street North
W ichita, KS USA
67220-3205
TEL: 316-686-7361
FAX: 316-686-6746
����������������
LISTED MOTOR
limited warranty Policy

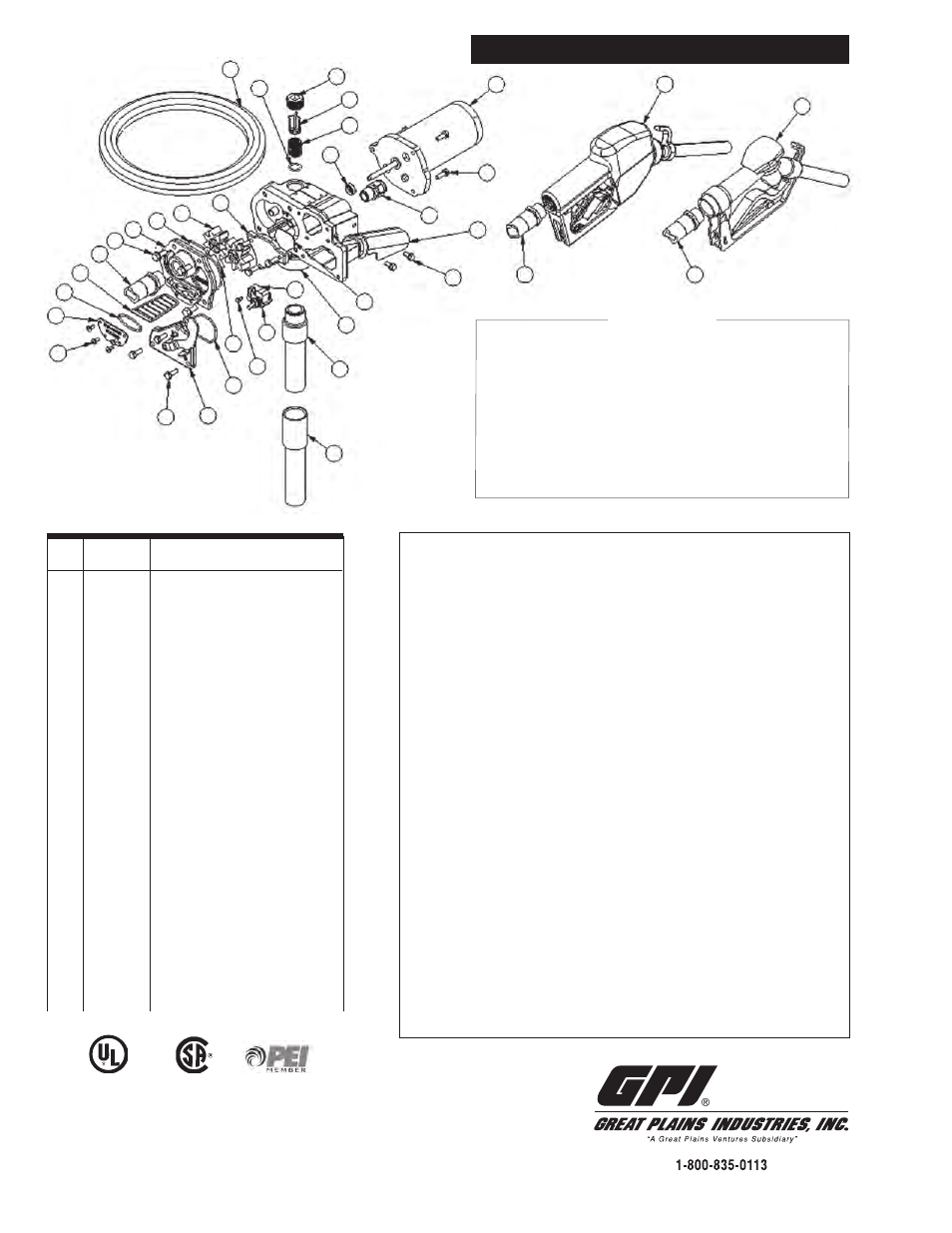

ILLUSTRATED PARTS LIST
33 9
10
29
15
21
26
16
18
13
4
28
19
17
12
5
7
3
11
22
34
1
31
32
27
24
30
20
14
25
8
23
6
4 4
2
Item No.
No. Part No. Description req’d.
1 110121-8 Nozzle, Automatic 3/4 in.,
Unleaded (UL) ...............................1
2 110155-1 Nozzle, Manual 3/4 in., Unleaded ......1
3 110182-1 Inlet Fitting .........................................1
4 110187-2 Hose, 3/4 in. x 3/4 in. x 10 ft. ............1
5 110195-02 Coverplate, Electrical ........................1
6 110264-1 Suction Pipe, Top .............................1
7 110264-2 Suction Pipe, Bottom ........................1
8 110265-02 Power Cord ........................................1
9 110276-01 Switch Coverplate Assembly .............1
10 110026-6 Switch Coverplate O-ring ..................1
11 110285-01 Electrical Coverplate Gasket .............1
12 110006-2 Gear ...................................................2
13 110009-1 Inlet Strainer ......................................1
14 110010-1 Bypass Poppet ..................................1
15 110017-6 Motor Shaft Key .................................1
16 110024-1 Coverplate, Strainer ...........................1
17 110026-1 Gear Coverplate O-ring .....................1
18 110026-4 Strainer Coverplate O-ring.................1
19 110067-2 Gear Coverplate ................................1
20 110131-2 Spring, Bypass Poppet .....................1
21 110277-05 Switch Assembly, M-150S .................1
22 902006-31 Motor Protector ................................1
23 118017-3 O-Ring ...............................................1
24 119000-1 Motor, 12-volt (M-150) .......................1
25 904001-42 Plug, Pipe, 3/4-14NPT .......................1
26 904002-22 Sems Screw .......................................4
27 904002-23 Sems Screw, 1/4-20 x 3/4 in. ............3
28 904002-24 Sems Screw .......................................4
29 904003-84 Tapping Screw ...................................1
30 11002502 Motor Shaft Seal ................................1
31 110360-02 Nozzle Cover .....................................1
32 904002-17 Strain Relief Sealing Grip ...................1
33 904002-23 Sems Screw & Washer Assembly ......6
34 904006-86 Tapping Screw ...................................2
110500-02 25 amp Fuse Kit
110504-1 Fuel Pump Overhaul Kit - Includes 2 Gears, Drive Key & O-rings
110906-1 Wet Seal Kit - Includes O-rings & Motor Shaft Seal
110907-1 Gear Kit - Includes 2 Gears & Drive Key
110913-2 Spare Key Kit - Includes Spare Drive Key
110910-02 Switch Kit - Includes Switch
110908-1 Poppet Seal Kit - Includes Poppet O-ring
110524-1 Armature Assembly Kit - Includes Armature Assembly
110525-1 Brush Card Assembly Kit - Includes Brush Holder Assembly
110526-1 Motor Housing Kit - Includes Motor Housing Assembly
110527-1 Battery Clamp Kit - Includes 2 Battery Clamps
115527-2 Suction Pipe Extension, 15 inch
906001-4 Pre-vent Vapor Control Cap (3 psi)
Items Not Shown
Great Plains Industries, Inc. 5252 E. 36 th Street North, Wichita, KS USA 67220-3205, hereby
provides a limited warranty against defects in material and workmanship on all products
manufactured by Great Plains Industries, Inc. This product includes a 2 year warranty from
date of purchase as evidenced by the original sales receipt. A 30 month warranty from prod-
uct date of manufacture will apply in cases where the original sales receipt is not available.
Reference product labeling for the warranty expiration date based on 30 months from date of
manufacture. Manufacturer’s sole obligation under the foregoing warranties will be limited to
either, at Manufacturer’s option, replacing or repairing defective Goods (subject to limitations
hereinafter provided) or refunding the purchase price for such Goods theretofore paid by the
Buyer, and Buyer’s exclusive remedy for breach of any such warranties will be enforcement of
such obligations of Manufacturer. The warranty shall extend to the purchaser of this product
and to any person to whom such product is transferred during the warranty period.
This warranty shall not apply if:
A. the product has been altered or modified outside the warrantor’s duly appointed
representative;
B. the product has been subjected to neglect, misuse, abuse or damage or has been
installed or operated other than in accordance with the manufacturer’s operating
instructions.
To make a claim against this warranty, contact the GPI Customer Service Department at
316-686-7361 or 800-835-0113. Or by mail at:
Great Plains Industries, Inc.
5252 E. 36 th St. North
Wichita, KS, USA 67220-3205
GPI will step you through a product troubleshooting process to determine appropriate cor-
rective actions.
GREAT PLAINS INDUSTRIES, INC., EXCLUDES LIABILITY UNDER THIS WARRANTY FOR
DIRECT, INDIRECT, INCIDENTAL AND CONSEQUENTIAL DAMAGES INCURRED IN THE USE
OR LOSS OF USE OF THE PRODUCT WARRANTED HEREUNDER.
The company herewith expressly disclaims any warranty of merchantability or fitness for any
particular purpose other than for which it was designed.
This warranty gives you specific rights and you may also have other rights which vary from
U.S. state to U.S. state.
Note: In compliance with MAGNUSON MOSS CONSUMER WARRANTY ACT – Part 702 (governs
the resale availability of the warranty terms).
