FOR INSTALLATION ON DRIVER'S SIDE ONLY

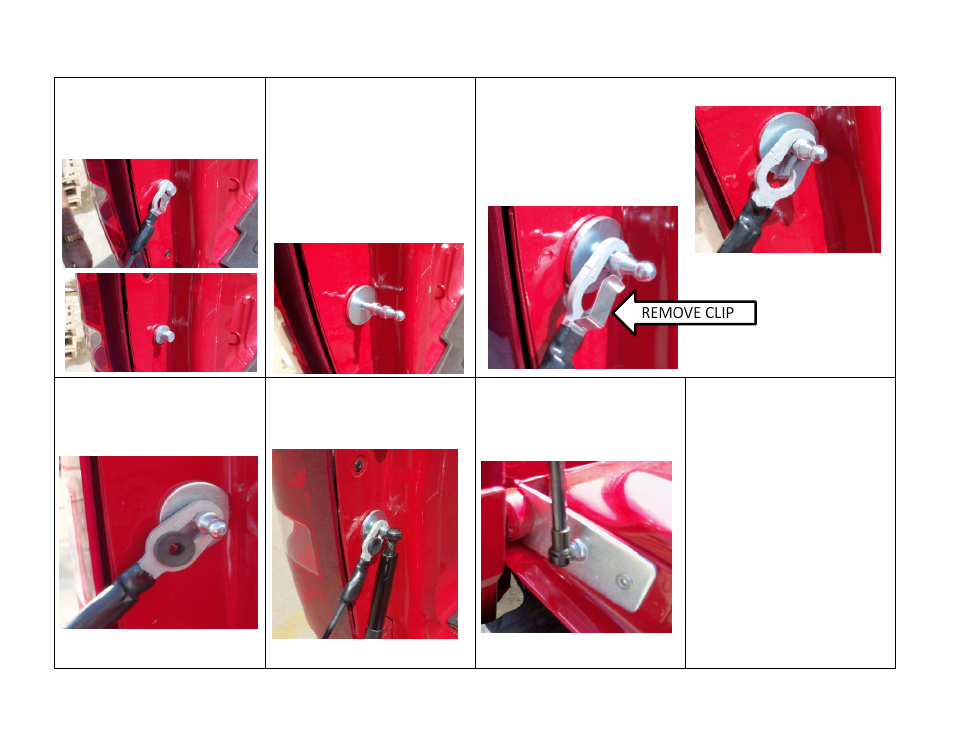

STEP 4) STEP 5) STEP 6)
Remove the tailgate cable Apply thread lock to the threads Using a pair of pliers, remove
and use a 13mm wrench/socket on the ball mount. the retaining clip from the cable
to remove the cable bolt. Install the ball mount and end. It may be necessary to
washer into the hole the cable cut the plastic around it.
bolt was removed from. Install the cable on the mount
The flat side of the washer after the clip is removed.
should be towards the front
of the vehicle.
Tighten with an 11mm wrench.
STEP 7) STEP 8) STEP 9)
Insert the grommet into the Install the larger part of the Install the narrow end of the
hole on the cable mount. shock on the ball mount. shock on the ball mount plate
previously installed.
DZ 43101 9/25/2013
