Dee Zee DZ500977 - Manual (Page 4)

BULL BAR
1998-2011 FORD RANGER
Page 4 of 4 10/12/2011REV1(DP)

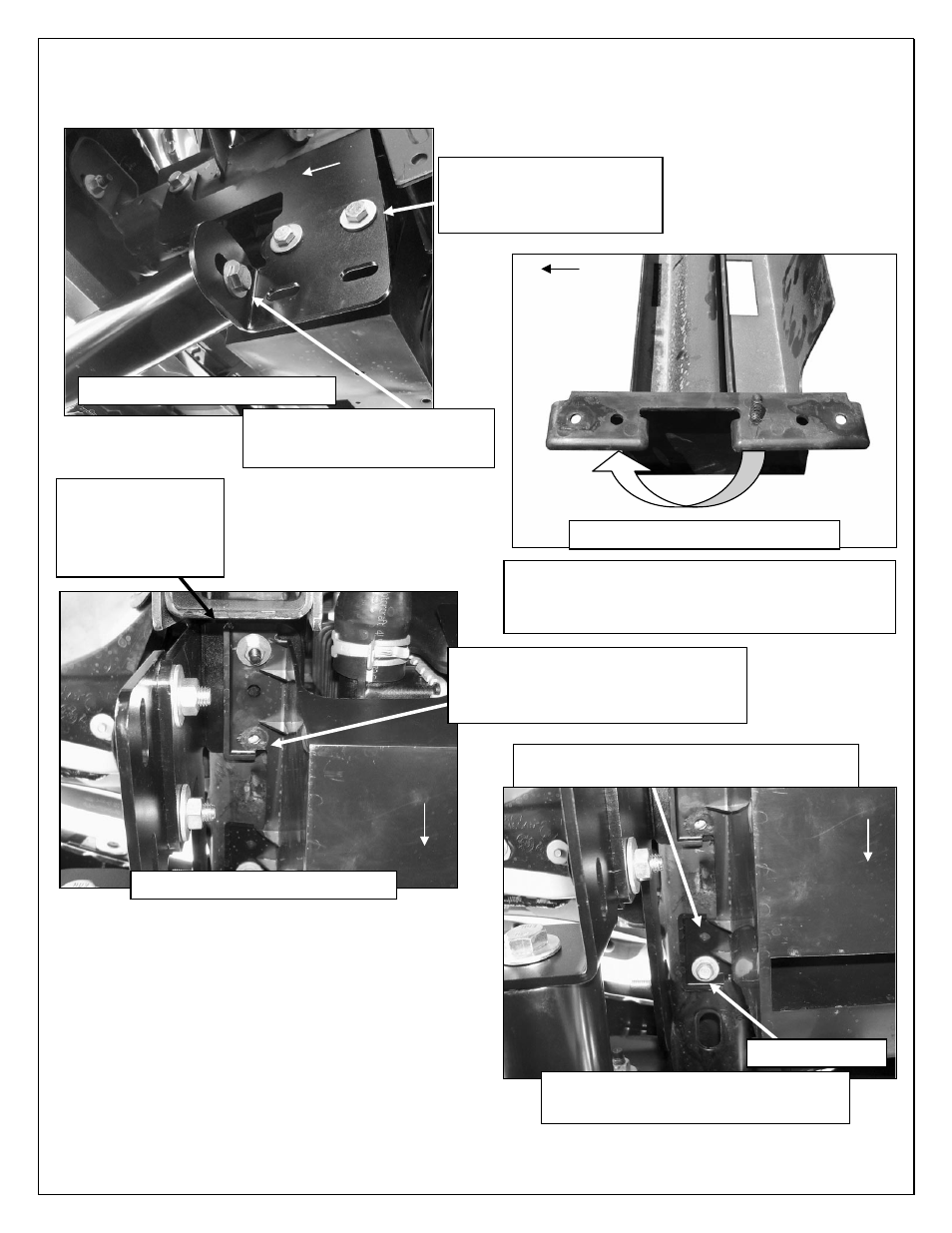

Driver Side Installation Pictured
Relocate factory plastic fastener from this hole to
this one on air box if bottom of frame is equipped
from factory with hole in this position, (See Fig 10)
Front
(Fig 8) 2010-2011 models w/airbox
(Fig 10) 2010-11 models w/airbox driver
side pictured from below vehicle
(Fig 9) 2010-2011 models w/airbox
Front
Front
8mm x 50mm Double
Sided Stud
8mm Flat Washer
8mm Lock Washer
8mm Hex Nut
8mm Self Tapping Flange Bolt (not
visible under air box flange). Reinstall
plastic airbox onto Double Sided Stud
and over Self Tapping Hex Bolt.
Factory plastic fastener (or discard fastener
if there is no hole in frame as pictured)
Factory hex bolt
12mm x 50mm Hex Bolt
12mm x 32mm STD Flat Washer
12mm Lock Washer
Front
(Fig 7) 2010-2011 model pictured
(2) 10mm x 35mm Hex Bolts
(4) 10mm Flat Washers
(2) 10mm Lock Washers
(2) 10mm Hex Nuts
