Dee Zee DZ500977 - Manual (Page 3)

BULL BAR
1998-2011 FORD RANGER
Page 3 of 4 10/12/2011REV1(DP)

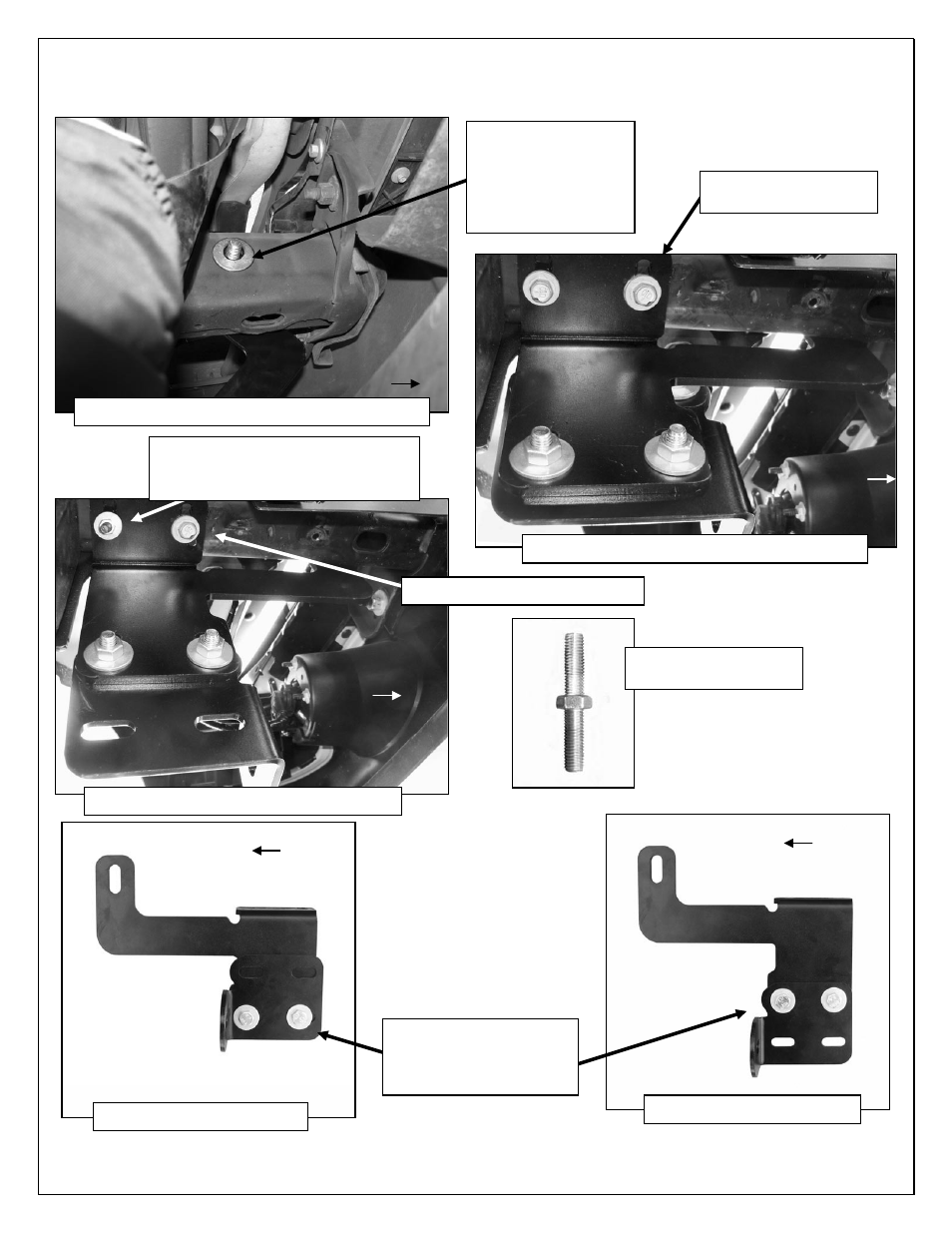

Driver Side Installation Pictured
(Fig 3) Inside of driver side frame rail pictured
12mm x 44mm Large
Flat Washer
12mm Lock Washer
12mm Hex Nut
(not pictured)
Front
Front
(Fig 4) 1998-2009 without airbox or skid plate
8mm x 50mm Double Sided Stud
8mm Flat Washer
8mm Lock Washer
8mm Self Tapping Flange Bolt
(Fig 6A) 1998-2009 models
10mm x 35mm Hex Bolts
10mm Flat Washers
10mm Lock Washers
10mm Hex Nuts
(Fig 6B) 2010-2011 models
(Fig 5A) 2010-11 with airbox or skid plate
(2) 8mm Self Tapping
Flange Bolts
Front
Front
Front
(Fig 5B) 8mm x 50mm
Double Sided Stud
