3” BULL BAR
2011-13 F-150 WITH ECOBOOST
Page 3 of 3 7/1/13 Rev1 (DP)

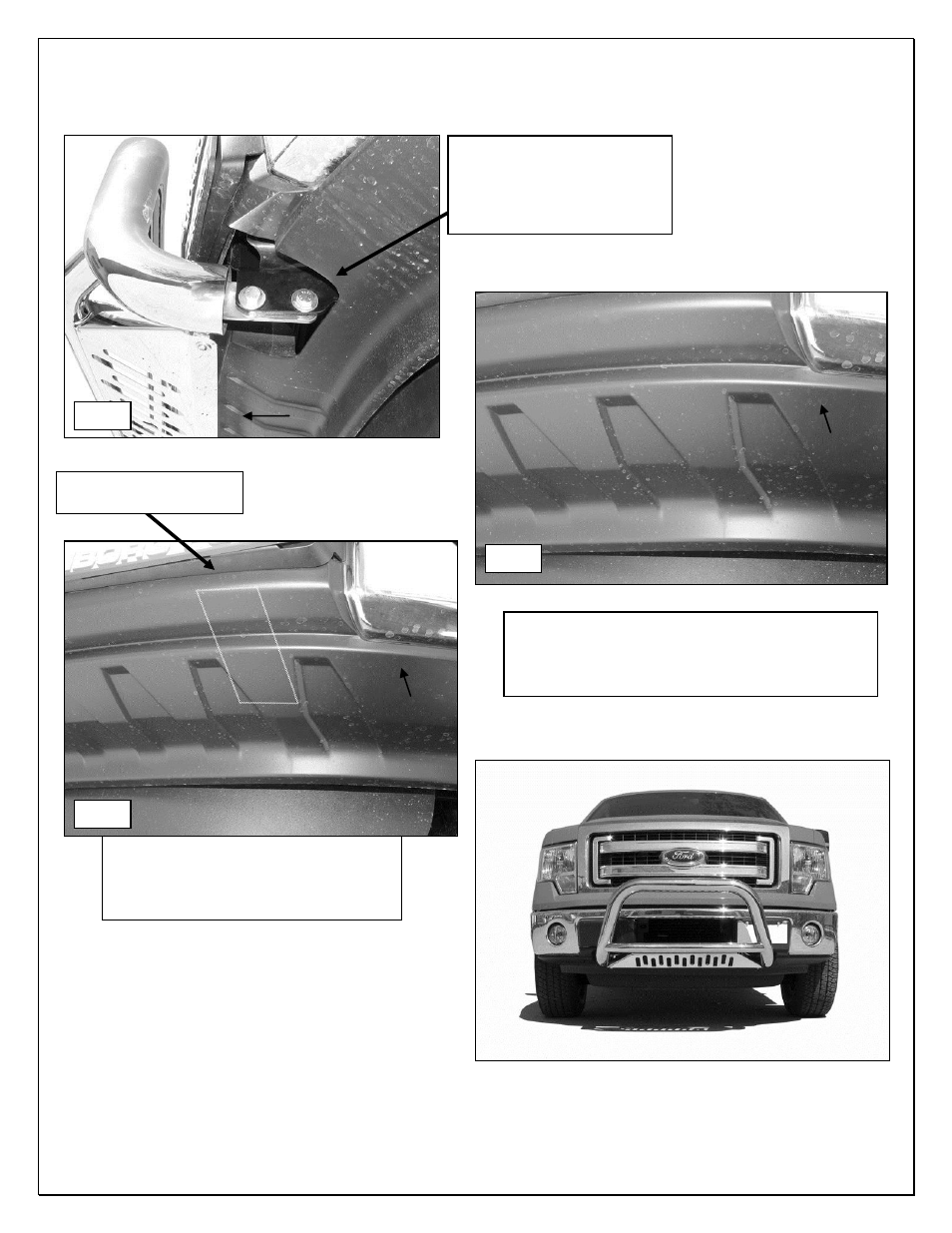

Driver Side Installation Pictured
(2) 12mm x 35mm Hex Bolts
(4) 12mm x 32mm Large Flat
Washers
(2) 12mm Lock Washers
(2) 12mm Hex Nuts
Fig 5
Fig 3
Fig 4
Front
Front
Front
Complete Installation
NOTE: Outline illustrated for example
only. Only remove enough plastic for
Bracket clearance. Do not cut through
the front or rear edge of the cover.
Do not cut through the
front edge of the cover
Models without tow hooks: Install and adjust
Brackets and Bull Bar. Temporarily remove the
Bull Bar. Hold plastic cover up against Brackets.
Mark outline of Brackets onto back of cover
