GRILLE GUARD
06-08 DODGE RAM 1500
Page 3 of 5 6/11/09 Rev2(DP)

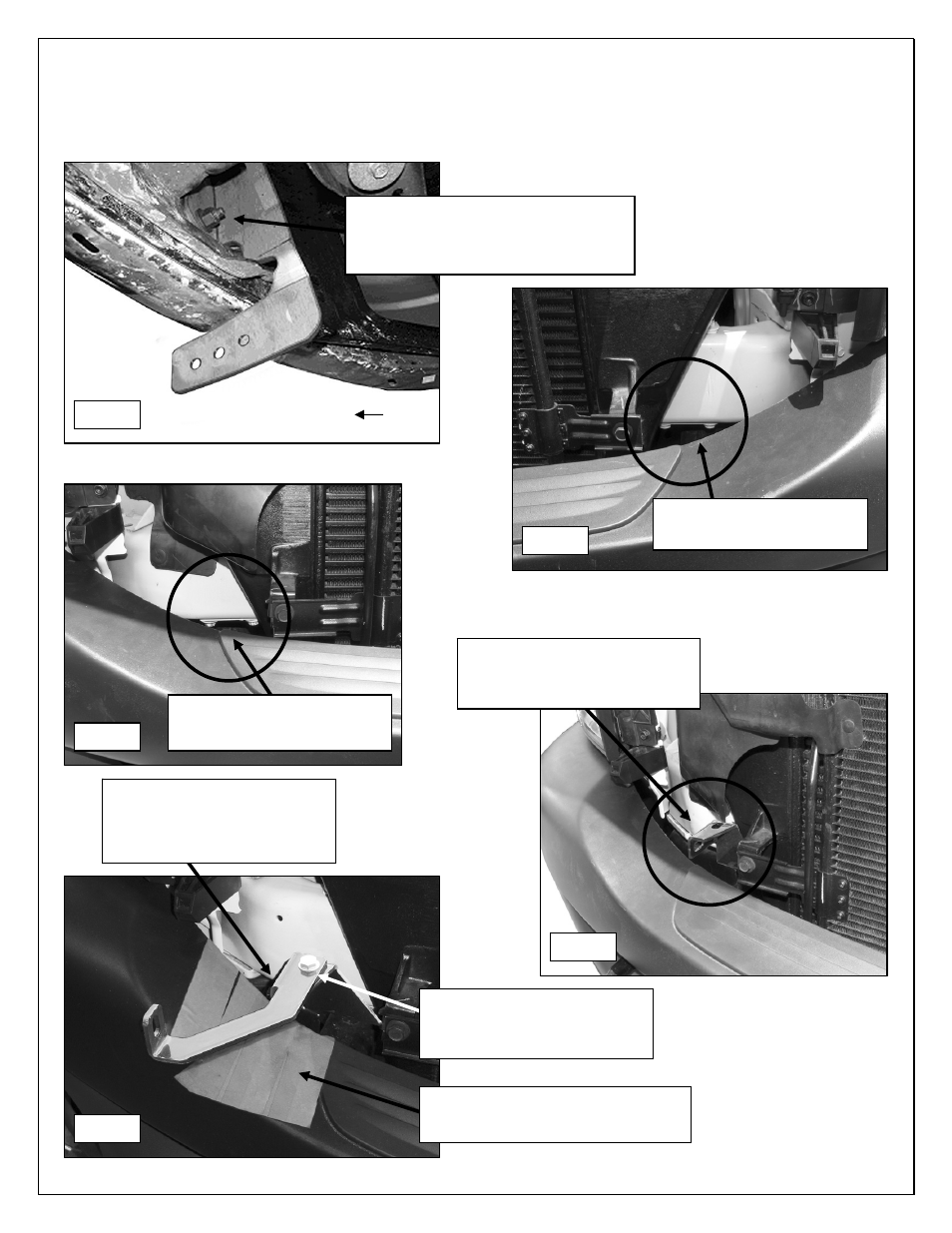

Passenger Side Installation Pictured
Passenger side Top Bracket
mounting location pictured
Fig 1
Fig 2B
Remove the (2) factory hex nuts from
behind the bumper. Install the driver
side Frame Mounting Bracket and
secure with the factory hex nuts
Use the 8mm factory hex bolt
to attach the Top Mounting
Bracket to the crossmember
(1) 10mm x 35mm Hex Bolt
(2) 10mm Flat Washers
(1) 10mm Nylon Lock Nut
12-1.75mm x 35mm Hex Bolts
12mm x 24mm OD x 2.5mm
Flat Washers
12mm Nylon Lock Nuts
Fig 4
Fig 3
Front
Fig 2A
Driver side Top Bracket
mounting location pictured
Masking tape used to protect
bumper cover during installation
