Dee Zee DZ506515 - Manual (Page 7)

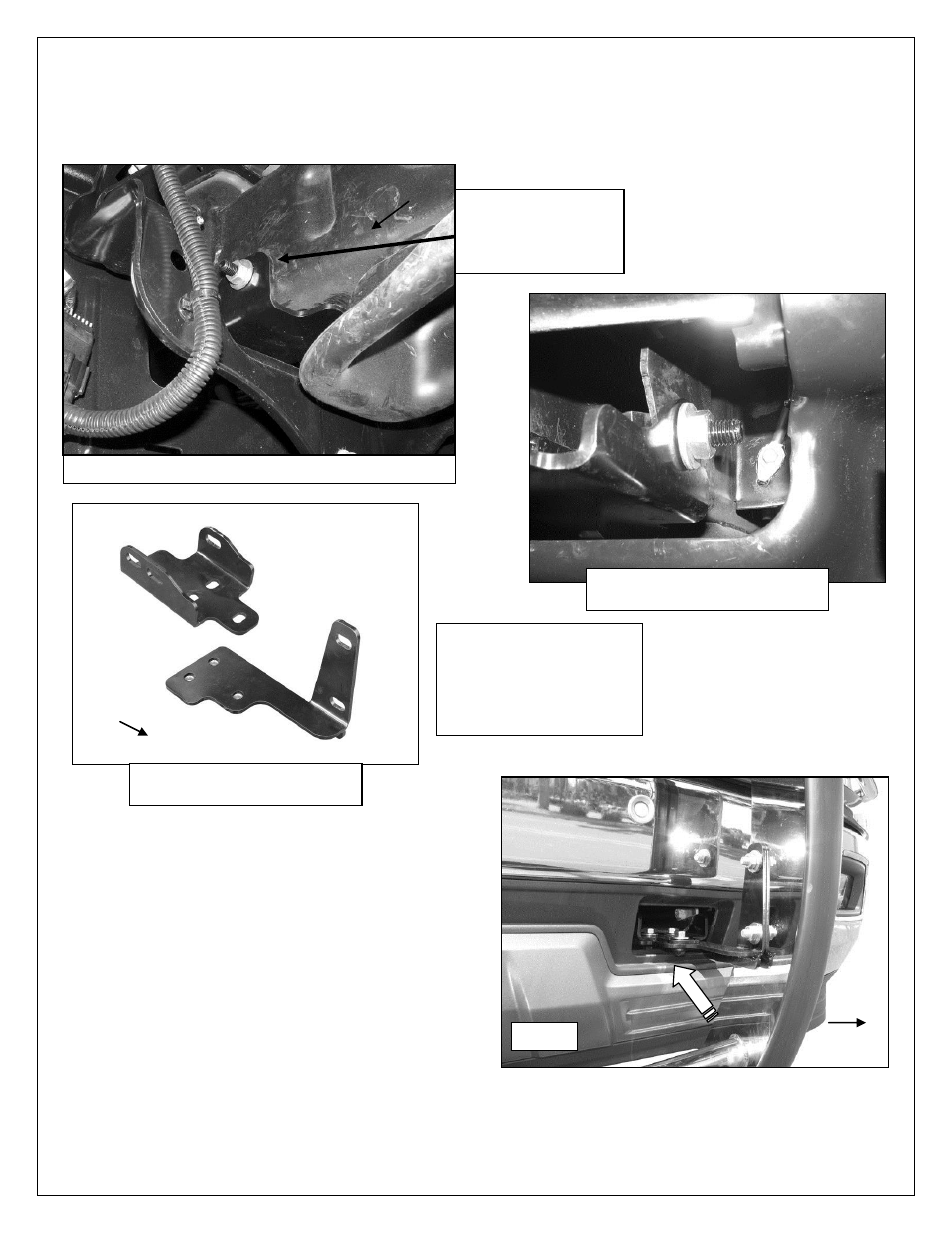

GRILLE GUARD
2014 SILVERADO 1500
Page 6 of 8 9-18-13(DP)
Driver Side Installation Pictured
Fig 10
(Fig 9) Driver side Mounting
Brackets pictured
(Fig 8B) Driver side Bracket installation pictured
Bolt the Mounting
Bracket to the bottom of
the Frame Bracket with:
(3) 8mm 30mm Hex Bolts
(3) 8mm Lock Washers
(3) 8mm Flat Washers
Front
12mm Bolt Plate
12mm Flat Washer
12mm Lock Washer
12mm Hex Nut
Front
(Fig 8C) Driver side Bracket
installation pictured from front
Front
