GRILLE GUARD
2014 SILVERADO 1500
Page 1 of 8 9-18-13(DP)
PARTS LIST:
Qty Description Qty Description
1 Grille Guard Assembly 6 12-1.75mm Hex Nuts
2 Frame Brackets 4 10-1.50mm x 30mm Hex Bolts
1 Driver/Left Mounting Bracket 8 10mm x 27mm OD x 3mm Flat Washers
1 Passenger/Right Mounting Bracket 4 10mm Lock Washers
1 Driver/Left Top Bracket 4 10-1.50mm Hex Nuts
1 Passenger/Right Top Bracket 2 8-1.25mm x 25mm Button Head Allen Bolts
1 Driver/Left Top Inner Support Bracket 6 8-1.25mm x 30mm Hex Bolts
1 Passenger/Right Top Inner Support Bracket 10 8mm x 16mm OD x 1.6mm Flat Washers
2 Top Support Rear Backing Plates 6 8mm Lock Washers
2 12-1.75mm x 30mm Double Bolt Plates 2 8-1.25mm Nylon Lock Nuts
2 12-1.75mm x 35mm Single Bolt Plates 8 6-1.0mm x 25mm Hex Bolts
6 12mm x 24mm OD x 2.5mm Flat Washers 8 6mm x 18mm OD x 1.6mm Flat Washers
6 12mm Lock Washers 8 6mm Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY. DO NOT ATTEMPT INSTALLATION ALONE; PERSONAL INJURY OR DAMAGE TO
THE VEHICLE MAY RESULT. CUTTING MAY BE REQUIRED. ASSISTANCE IS HIGHLY
RECOMMENDED.
2. Start installation from under the front of the vehicle. Determine if the vehicle is equipped with tow hooks.
Tow Hook equipped vehicles:
a. Remove the factory tow hook from the end of each frame channel, (Figure 1). NOTE: The driver
side tow hook removal and the reinstallation of both tow hooks with the Grille Guard is difficult and
assistance is highly recommended.

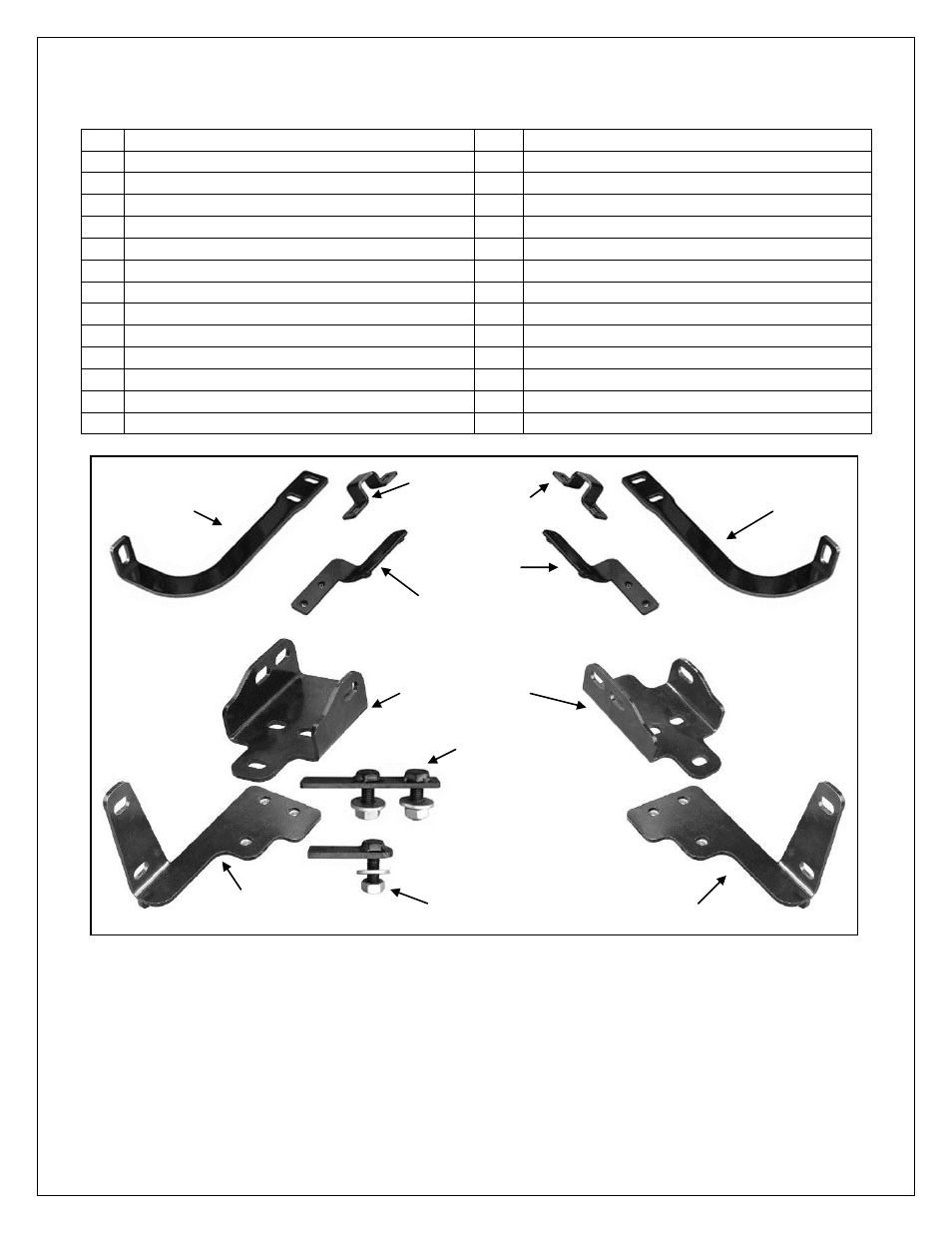

Driver/Left
Mounting Bracket
(2) Frame Mounting
Brackets
Driver/Left
Top Bracket Passenger/Right
Top Bracket
(2) 12mm x 35mm
Single Bolt Plates
Passenger/Right
Inner Top Bracket
(2) 12mm x 30mm
Double Bolt Plates
Passenger/Right
Mounting Bracket
Driver/Left Inner
Top Bracket
(2) Top Support
Backing Plates
