Dee Zee DZ501895 - Manual (Page 5)

GRILLE GUARD
07-12 TOYOTA TUNDRA / 08-12 SEQUOIA
Page 4 of 5 5/3/12 Rev E (DP)

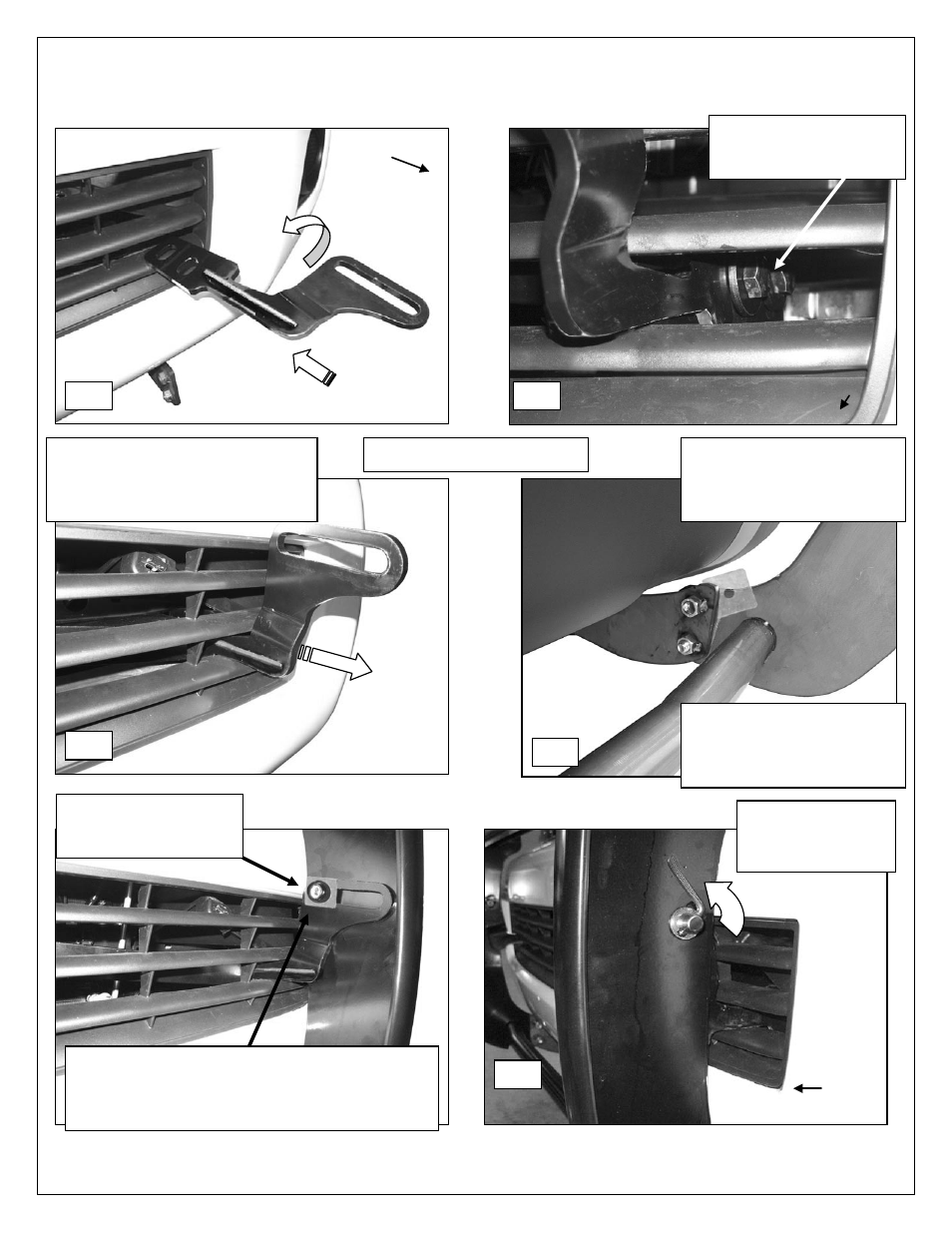

Driver/Left Side Installation Pictured
10mm x 35mm Hex Bolts
10mm Lock Washers
10mm Flat Washers
Top Bracket
(4) 12mm x 35mm Hex Bolts
(4) 12mm Lock Washers
(4) 12mm Flat Washers
(4) 12mm Plastic Washers 07-On Sequoia Pictured
Fig 5 Fig 6
Fig 7
Fig 8
Fig 10
Top Bracket
3/8" Quick Release
(open position)
3/8" Flat Washer
(2) 3/8 Plastic Washers
(1) 3/8" Flat Washer
(1) 3/8 Nylock Nut
Insert a Plastic Washer
between the Grille Guard
and the Frame Mounting
Bracket on each Hex Bolt (4)
(Fig 9) Insert a Plastic Washer between the Grille
Guard and the Top Bracket and under the Flat
Washer on each Quick Release Bolt. (2) Plastic
Washers are required for each Quick Release
Pull the Top Bracket as the
hardware is tightened to provide
maximum clearance between
Grille Guard and vehicle
Front
Front
Front
