Dee Zee DZ501895 - Manual (Page 4)

GRILLE GUARD
07-12 TOYOTA TUNDRA / 08-12 SEQUOIA
Page 3 of 5 5/3/12 Rev E (DP)

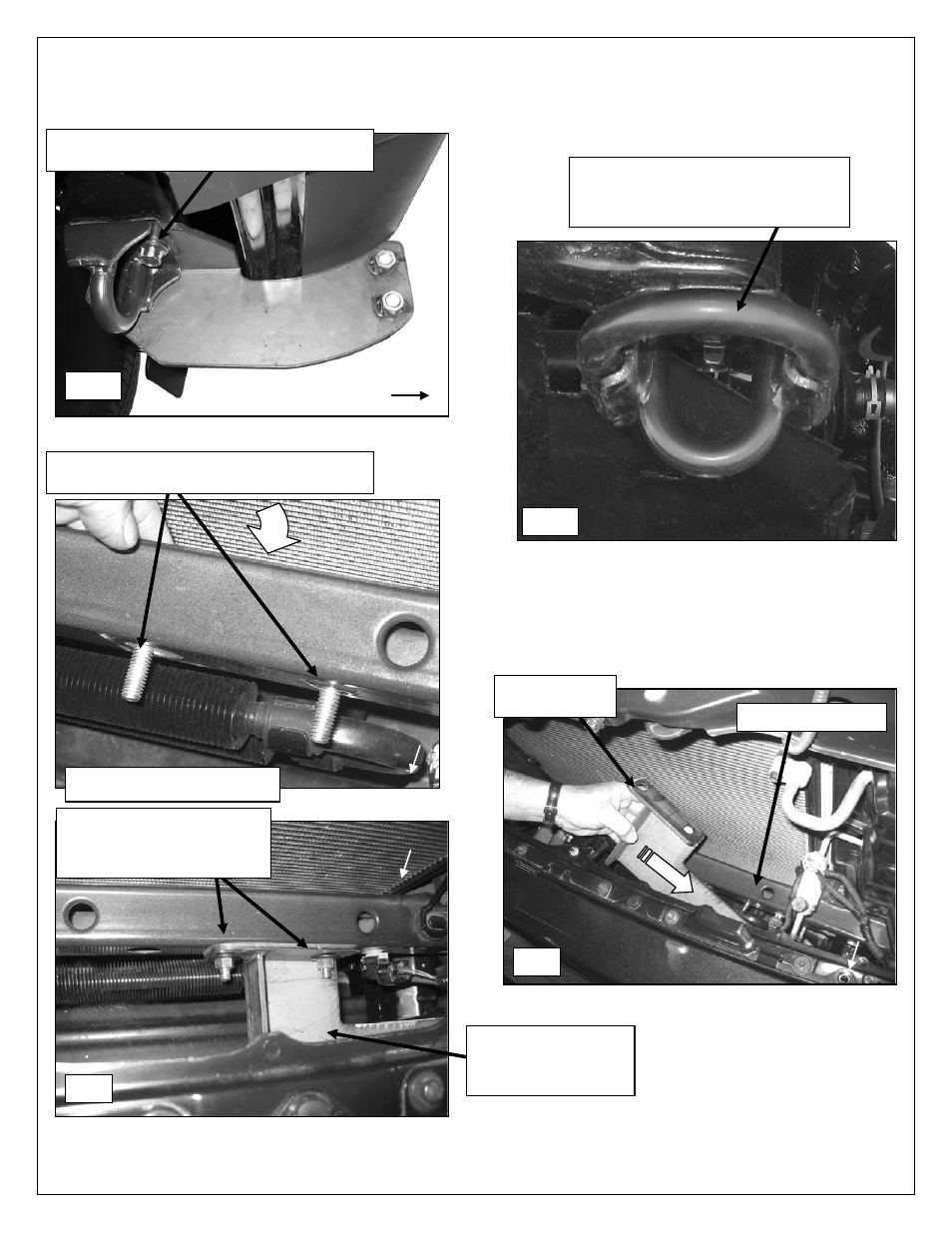

Driver/Left Side Installation Pictured
Frame Mounting Bracket installed with
small factory tow hook and hardware
Insert Double Bolt Plate through the back
of radiator core support cross member
Top Mounting
Bracket
(1) Double Bolt Plate
(2) 10mm Nylon Lock Nuts
(2) 10mm Flat Washers
Fig 1A
Fig 3
Fig 4
(Fig 2) Viewed from above
Front
Fig 1B
The heavy duty factory tow hooks
cannot be reinstalled and will not
clear the Frame Mounting Brackets
Double Bolt Plate
Front
Front
Front
Driver side Top
Mounting Bracket
(viewed from above)
