GRILLE GUARD
07-12 TOYOTA FJ CRUISER
Page 4 of 4 4/30/12 Rev 1 (DP)

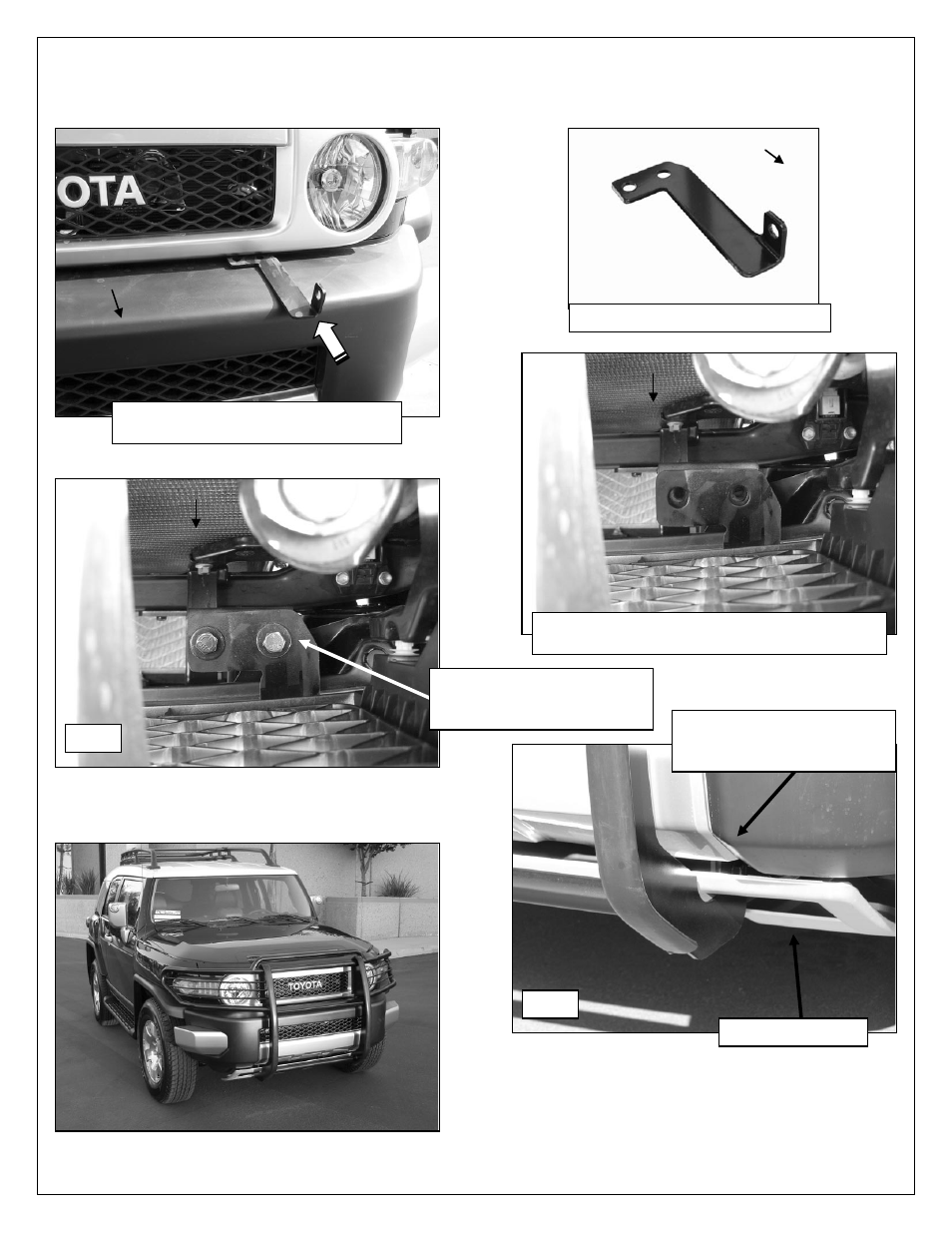

Driver Side Installation Pictured
(Fig 6A) Insert Driver side Top
Bracket through gap above bumper
(Fig 7) Driver side Top Bracket installation
through opening at top of grille
Front
(2) 12mm x 30mm Hex Bolts
(4) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
(2) 8mm x 25mm Hex Bolts
(2) 8mm Flat Washers
(2) 8mm Lock Washers
(Fig 6B) Driver side Top Bracket
Fig 8
Fig 9
Front
Front
Front
Factory skid plate
