Using tin snips, cut the gasket provided into 2 equal pieces (approximately 24").

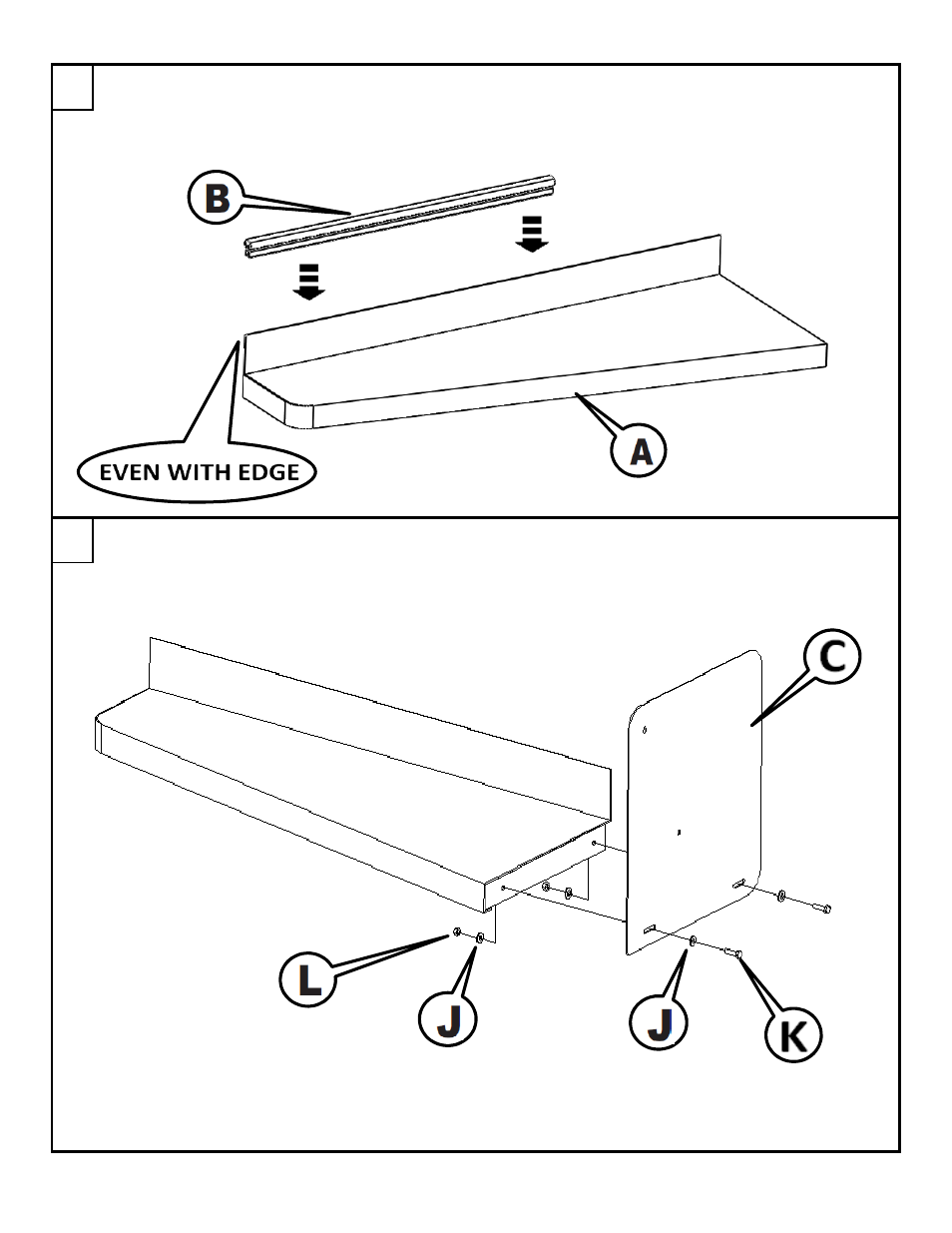

Place bulb-seal gasket [B] onto the back lip of the running board. The gasket will not
run the entire length of the board back lip.
Attach the mudflap [C] to the running board using two 1/4" bolts [K], four 1/4" washers [J], and two
1/4" nuts [L]. Line the outside and bottom of the flap up with the running board and tighten
in place using a 7/16" wrench and socket.
4
5
in place using a 7/16" wrench and socket.
DZ 3378 7 OF 10 12/15/2011
