Dee Zee DZ371539 - Manual (Page 5)

4" OVAL SIDE BARS WITH BENT ENDS
02-11 SILVERADO/SIERRA CREW CAB
Page 4 of 4 1/12/09 Rev 1(DP)

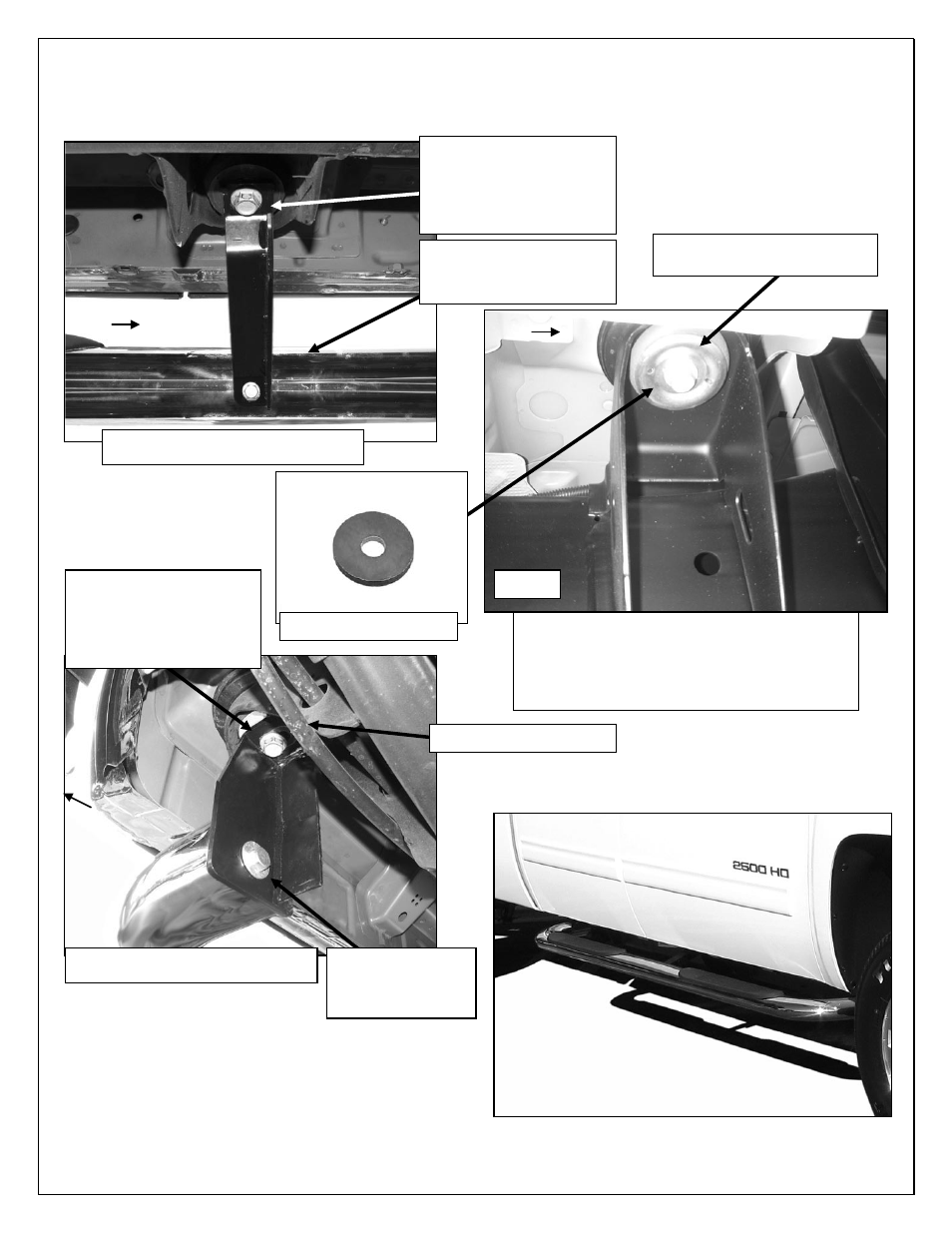

Driver side installation pictured
1/2” x 2” Hex Bolt
1/2” Lock Washer
1/2” Flat Washer (Fig 5) Rear Mounting Location
Rear
10mm x 25mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
(Fig 3) Center Mounting Location
Front
Factory hex bolt or use
the supplied:
12mm x 120mm Hex Bolt
12mm Lock Washer
12mm Flat Washer
Fig 4A
(Fig 4B) Spacer Plate
Rear
Complete Installation
Factory hex bolt or use
the supplied:
12mm x 120mm Hex Bolt
12mm Lock Washer
12mm Flat Washer
Stepped factory steel
washer over rubber bushing
Install Spacer Plate between factory stepped
steel washer and rear Mounting Bracket
only. Spacer Plates are not required on
vehicles equipped with flat steel washer
covering the factory rubber bushing
Spacer Plate if required
