4" OVAL SIDE BARS WITH BENT ENDS
02-11 SILVERADO/SIERRA CREW CAB
Page 2 of 4 1/12/09 Rev 1(DP)

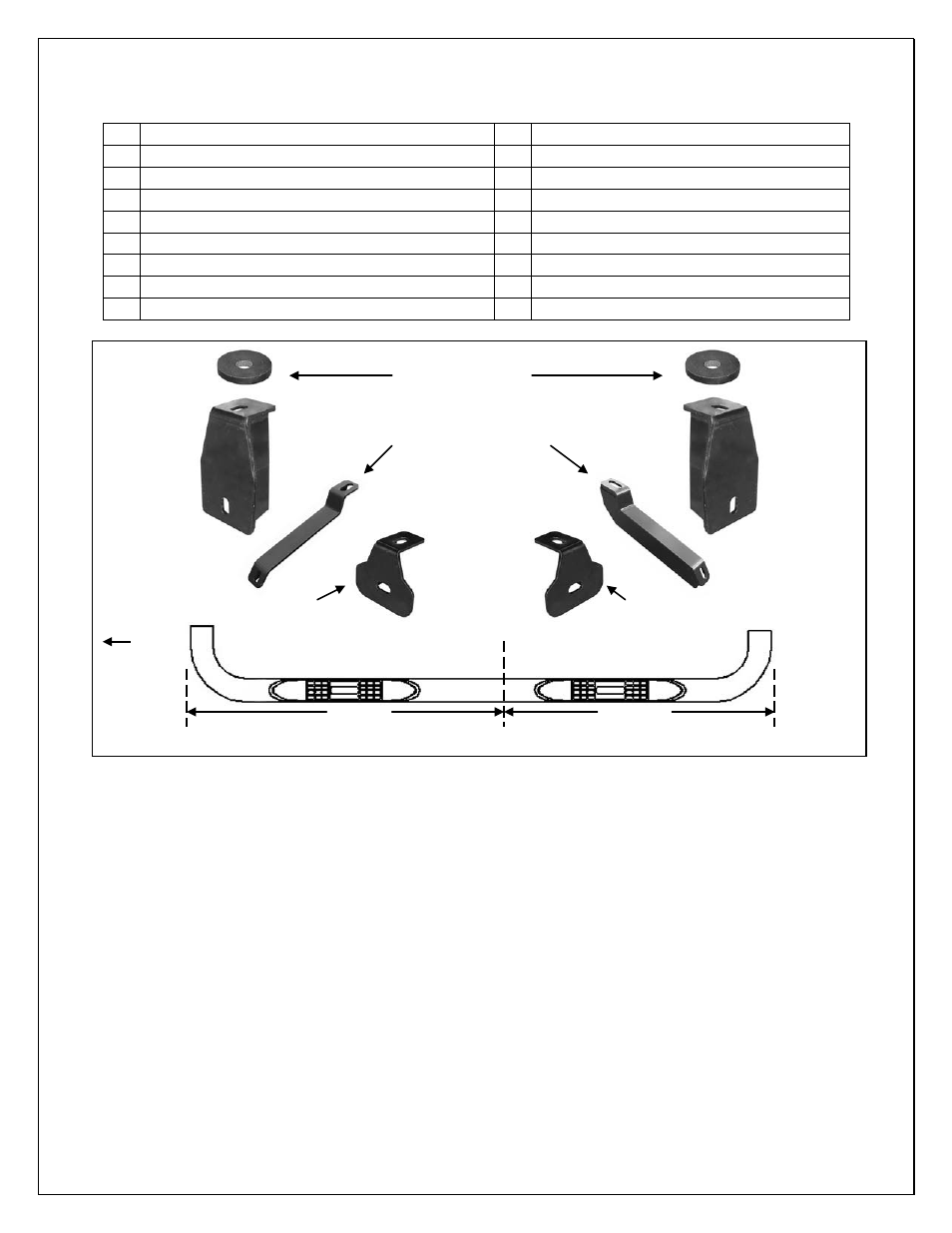

PARTS LIST:
1 Driver/Left Sidebar 4 1/2” Lock Washers
1 Passenger/Right Sidebar 4 1/2” ID x 1-1/2" OD x 1/8" Flat Washers
1 Driver Side/Left Front Mounting Bracket 6 12-1.75mm x 120mm Hex Bolts
1 Passenger Side/Right Front Mounting Bracket 6 12mm x 24mm OD x 2.5mm Flat Washers
2 Center Mounting Brackets 6 12mm Lock Washers
1 Driver Side/Left Rear Mounting Bracket 2 10-1.50mm x 25mm Hex Bolts
1 Passenger Side/Right Rear Mounting Bracket 2 10mm Lock Washers
2 Spacer Plates 2 10mm ID x 20mm OD x 2mm Flat Washers
4 1/2” x 2” Hex Bolts
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ "FACTORY BODY
BOLT REMOVAL INSTRUCTIONS" AND INSTALLATION INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
1. Start installation on the front, driver side of the vehicle. Remove the driver side front body mount bolt,
(Figure 1).
2. Select the driver side front Mounting Bracket. Insert the factory body mount bolt through the Mounting
Bracket and into the steel washer, (if equipped), and rubber bushing. Hang the Mounting Bracket in
position by partially threading the factory body mount bolt up into place, (Figure 2). Snug but do not
tighten hardware at this time.
a. NOTE: Up to 2003 vehicles. Use the supplied 12mm x 120mm Hex Bolts, 12mm Flat Washers
and 12mm Lock Washers to replace the factory body mount bolts if the washer is not removable
from the factory bolt or if the factory bolt is too short for proper installation.
3. Repeat Step 2 for Center Mounting Bracket installation, (Figure 3).
4. Move toward the rear of the vehicle. Remove the factory body mount bolt as described in Step 1.
Select the driver side Rear Mounting Bracket. Bolt the rear Mounting Bracket in place as described in
Step 2. NOTE: On some 2007 and newer vehicles, the factory body mount washer over the rubber
Driver/Left
rear Mounting
Bracket
Driver/Left front
Mounting Bracket
(2) Center Mounting
Brackets
Passenger/Right front
Mounting Bracket
Passenger/Right
rear Mounting
Bracket
(2) Spacer Plates
Driver Sidebar illustrated. Dashed lines represent locations of threaded inserts to identify Sidebars
46-1/2" 46-1/8"
Front
