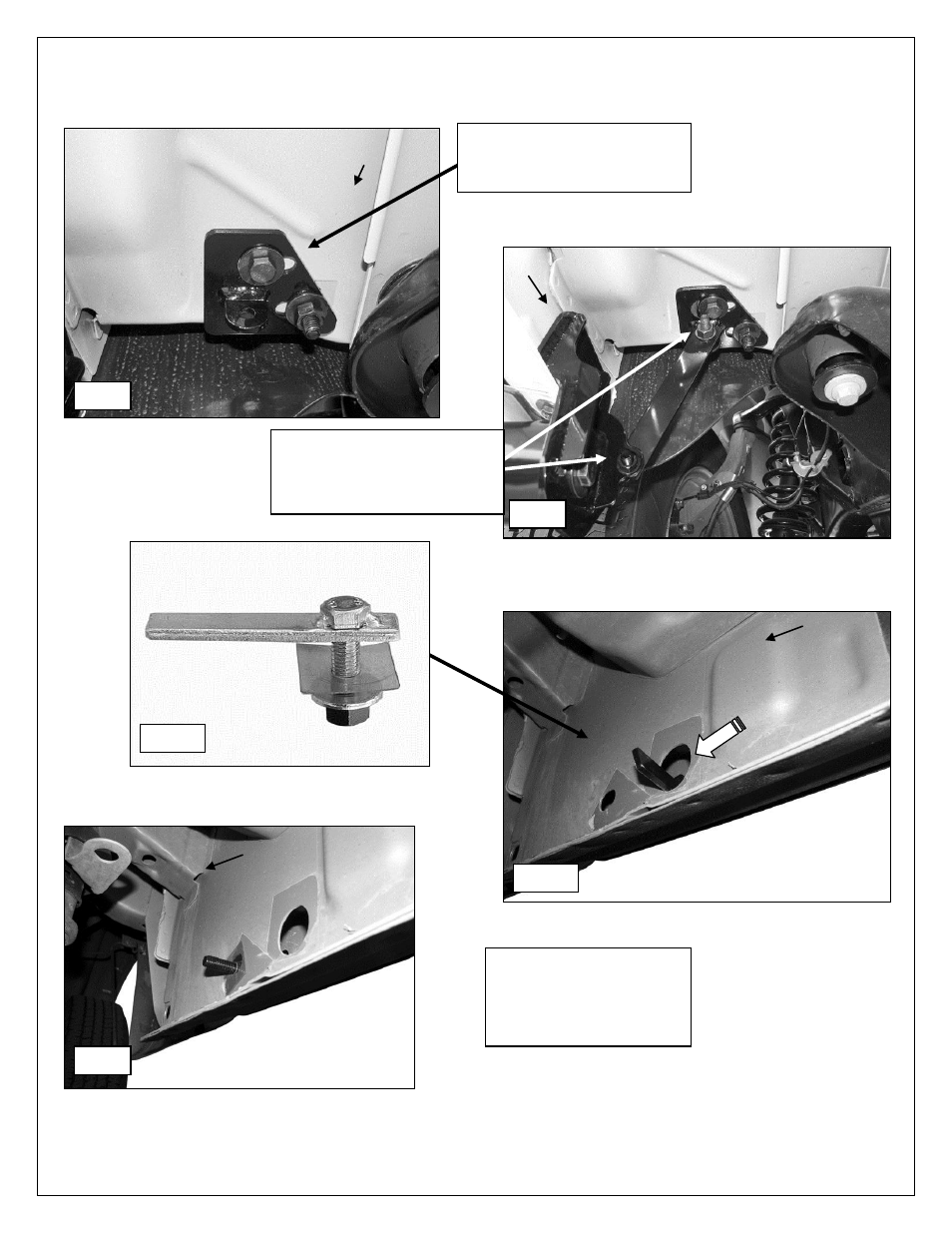

BENT END SIDEBARS
09-13 FORD F-150 SUPER CAB
Page 4 of 5 12/5/12 Rev2(DP)
Driver Side Installation Pictured
(1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Large Flat Washer
Front
Fig 5
(1) 10mm x 35mm Hex Bolt
(2) 10mm Small Flat Washers
(1) 10mm Lock Washer
(1) 10mm Hex Nut
Fig 6
Fig 7A
Fig 7B
Front
Rear
Insert Bolt Plate into large
hole and out smaller hole
toward rear. Thread
Plastic Retainer onto Bolt
Plate to hold in place
Fig 8
Rear
