BENT END SIDEBARS
09-13 FORD F-150 SUPER CAB
Page 3 of 5 12/5/12 Rev2(DP)

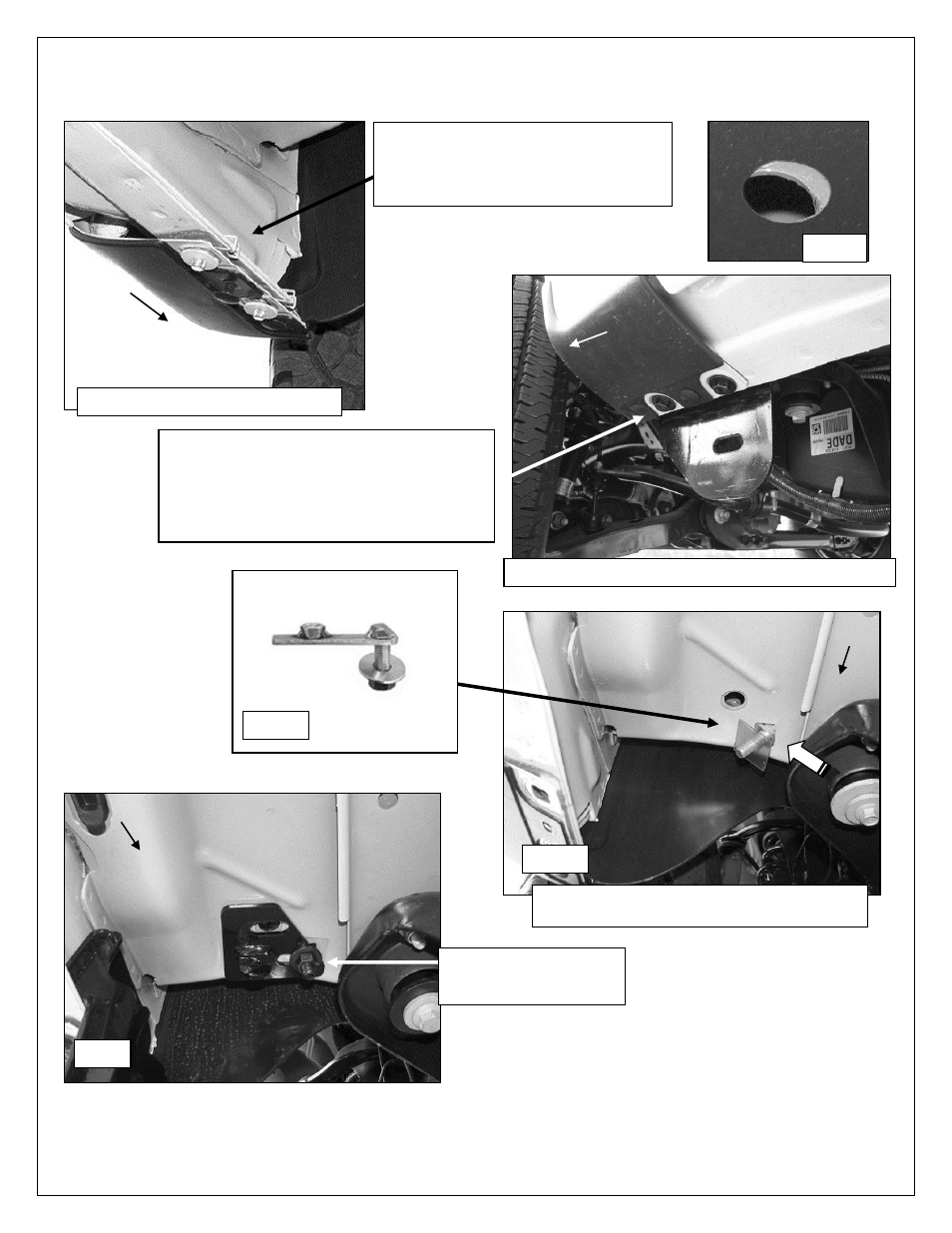

Driver Side Installation Pictured
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm x 24mm Large Flat Washers (outer)
(2) 8mm x 16mm Small Flat Washers (inner
against Bracket)
(2) 8mm Hex Nuts
Remove these two hex bolts and metal
clip nuts. Drill a 3/8" hole through the
pinch weld to clearance holes if
misaligned ONLY if necessary
(Fig 2) Driver side front Mounting Bracket pictured
(Fig 1A) Driver side front pictured
Front
Front
Insert the Nut and Bolt Plate into square
hole and line up the nut with the round hole
Fig 1B
Fig 3B
Fig 3A
Front
(1) 12mm Flat Washer
(1) 12mm Lock Washer
(1) 12mm Hex Nut
Fig 4
Front
