Dee Zee DZ372247 - Manual (Page 5)

SIDEBAR (BENT END)
DODGE RAM 2500/3500 MEGA CAB 10-12
Page 4 of 4 1/21/10 (DP)

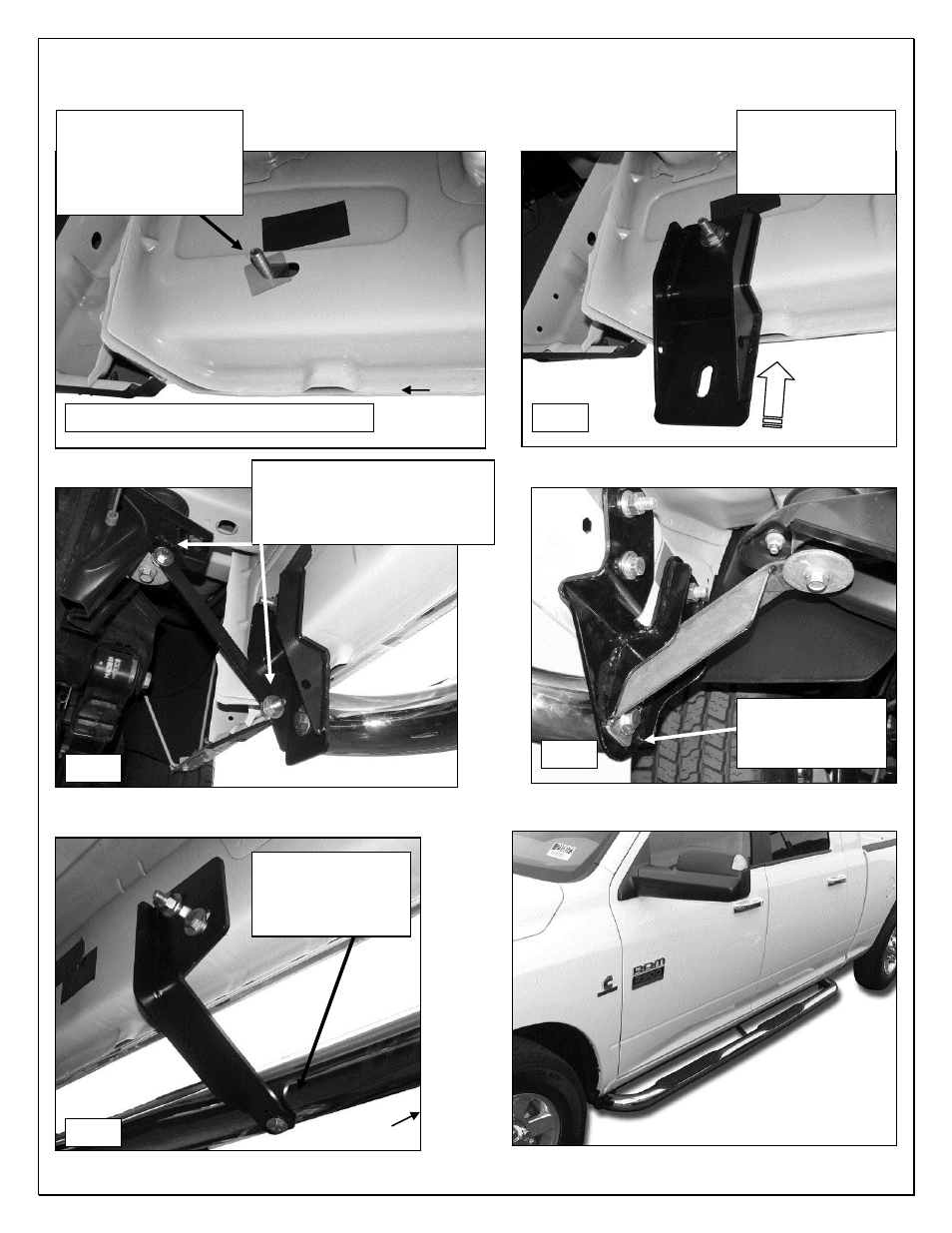

DRIVER SIDE INSTALLATION PICTURED
Fig10
Rear
1/2" x 2" Hex Bolt
1/2" Flat Washer
1/2" Lock Washer
(2) 10mm x 35mm Hex Bolts
(2) 10mm Lock Washer
(4) 10mm x 20mm Flat Washer
(2) 10mm Hex Nut
(1) Bolt Plate w/12mm
retainer
(1) 12mm Lock Washer
(1) 12mm Flat Washer
(1) 12mm Hex Nut
(Fig 6) Rear mounting position pictured
Front
Fig 9
Fig 8
Fig 7
8mm x 25mm Hex
Bolt
8mm Flat Washer
8mm Lock Washer
Complete Installation
Push rear Mounting
Bracket up against
the body as you
tighten hardware
