Dee Zee DZ372247 - Manual (Page 4)

SIDEBAR (BENT END)
DODGE RAM 2500/3500 MEGA CAB 10-12
Page 3 of 4 1/21/10 (DP)

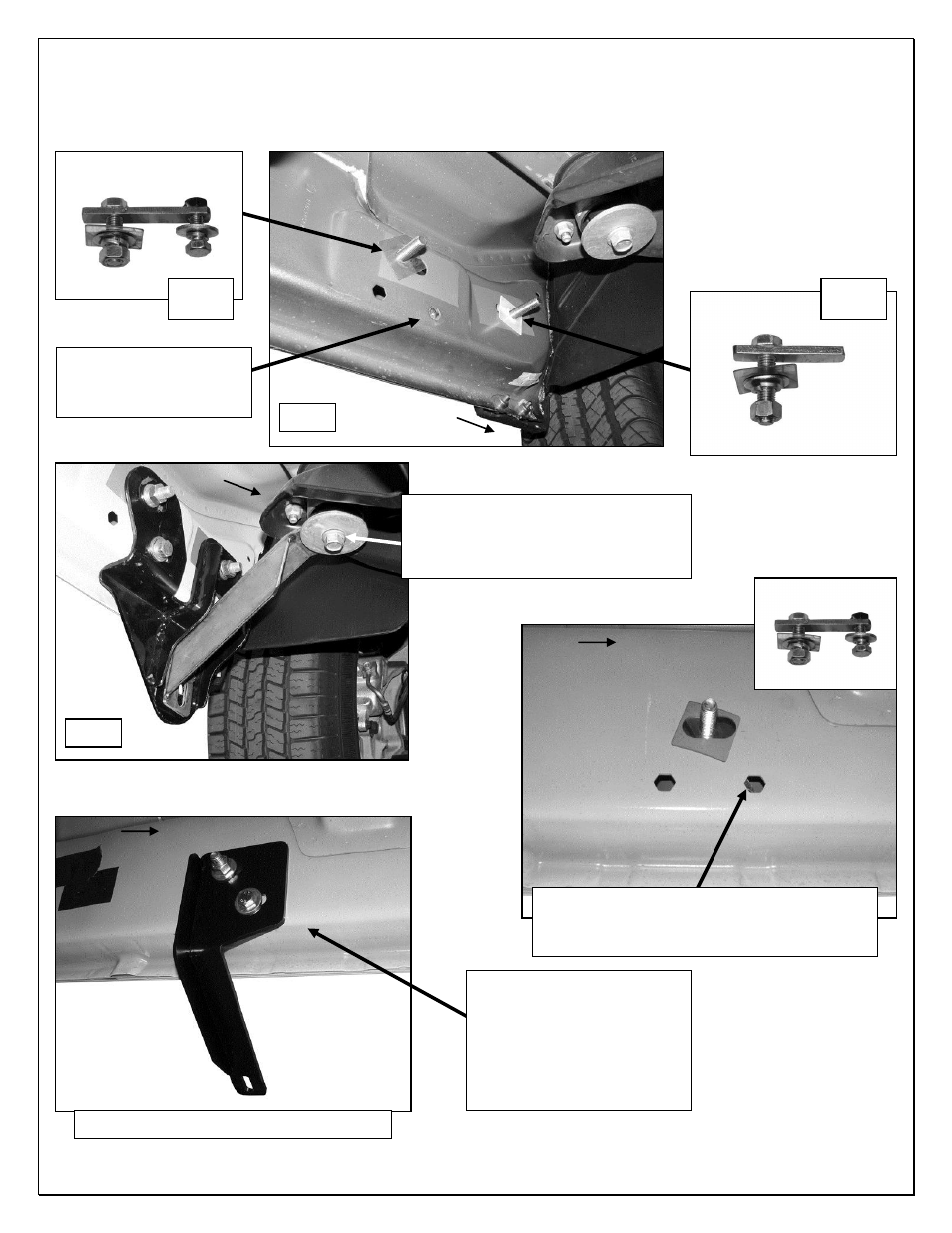

DRIVER SIDE INSTALLATION PICTURED
Fig 1B Fig 1A
Fig 3
Fig 2 Front
Rotate Bolt and Nut
plate to line up Nut with
this hole in body panel
(Fig 4) Rotate Bolt and Nut plate to line up
Nut with this hole in body panel. Center
Mounting Bracket location pictured.
(1) Bolt and Nut Plate
(1) 12mm Hex Nut
(1) 12mm Lock Washer
(1) 12mm Flat Washer
(1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Flat washer
Remove the factory body mount bolt
and washer, line up the slot in the
driver side Support Bracket and
reinstall the factory bolt and washer.
(Fig 5) Center Mounting Bracket pictured
Front
Front
