Dee Zee DZ371641 - Manual (Page 3)

SIDEBAR
07-13 WRANGLER 4DR
Page 2 of 3 2/27/12 Rev3 (DP)
6mm x 18mm Small Flat Washers, (against pinch weld), (2) 6mm x 22mm OD Large Flat Washers,
(inside against the bracket), and (2) 6mm Nylon Lock Nuts, (Figure 3A). Leave loose at this time.
5. Repeat Steps 2 – 4 for Center and Rear Mounting Bracket installation. Use the instructions to correctly
identify the Brackets, (Figures 3B, 3C, 3D & 4).
6. Once all three Mounting Brackets are securely in position, place the passenger Sidebar onto the
Mounting Brackets and secure it with the included (6) 8mm x 25mm Hex Bolts, (6) 8mm Lock Washers
and (6) 8mm Flat Washers, (Figure 5). NOTE: Mounting cradles on Brackets should be inline and
pointing toward the rear of the vehicle for proper installation. Snug all hardware but do not tighten at
this time.
7. Adjust and level the Sidebar and tighten all hardware.
8. Repeat Steps 2 - 7 for driver/left Sidebar installation.
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer
over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be
used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean Sidebar.

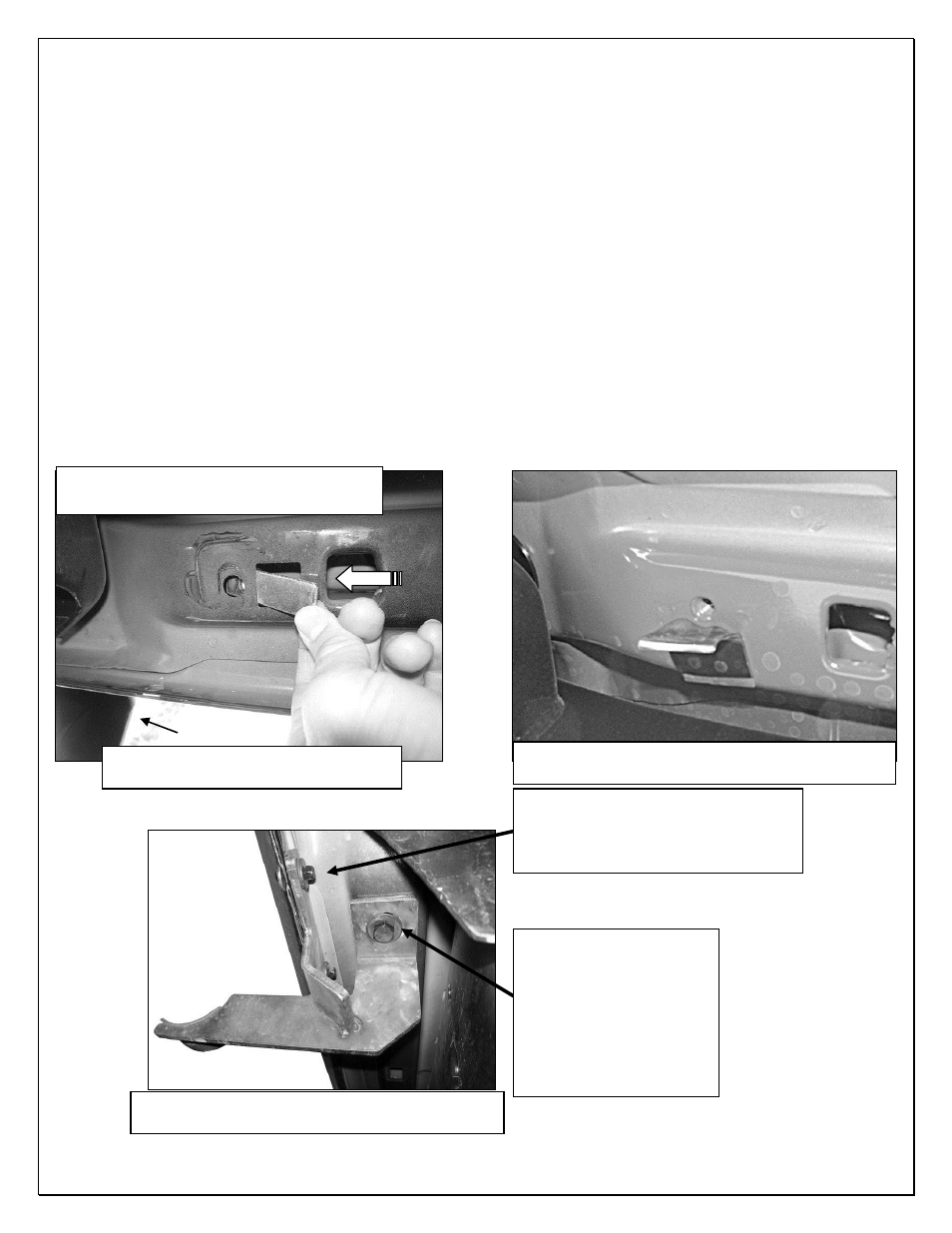

Passenger Side Installation Pictured
(Fig 1) Opening in floor frame channel
(passenger side-front pictured)
(2) 6mm x 25mm Button Head Bolts
(2) 6mm Small Flat Washers (outside)
(2) 6mm Large Flat Washers (inside)
(2) 6mm Nylon Lock Nuts
Insert 10mm Nut Plate into opening and
line up nut with mounting hole on Bracket
Front
(Fig 2) 8mm threaded hole in floor frame channel
(passenger side-front pictured for example)
10mm Nut Plate
10mm x 35mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
OR
8mm x 35mm Hex Bolt
8mm Lock Washer
8mm x 28mm OD x 3mm
Large Flat Washer
(Fig 3A) Passenger side Front Mounting Bracket
installation pictured ("mid length" bracket)
