ASSEMBLY

3109 01/11

Assembly Section 3-7

ASSEMBL

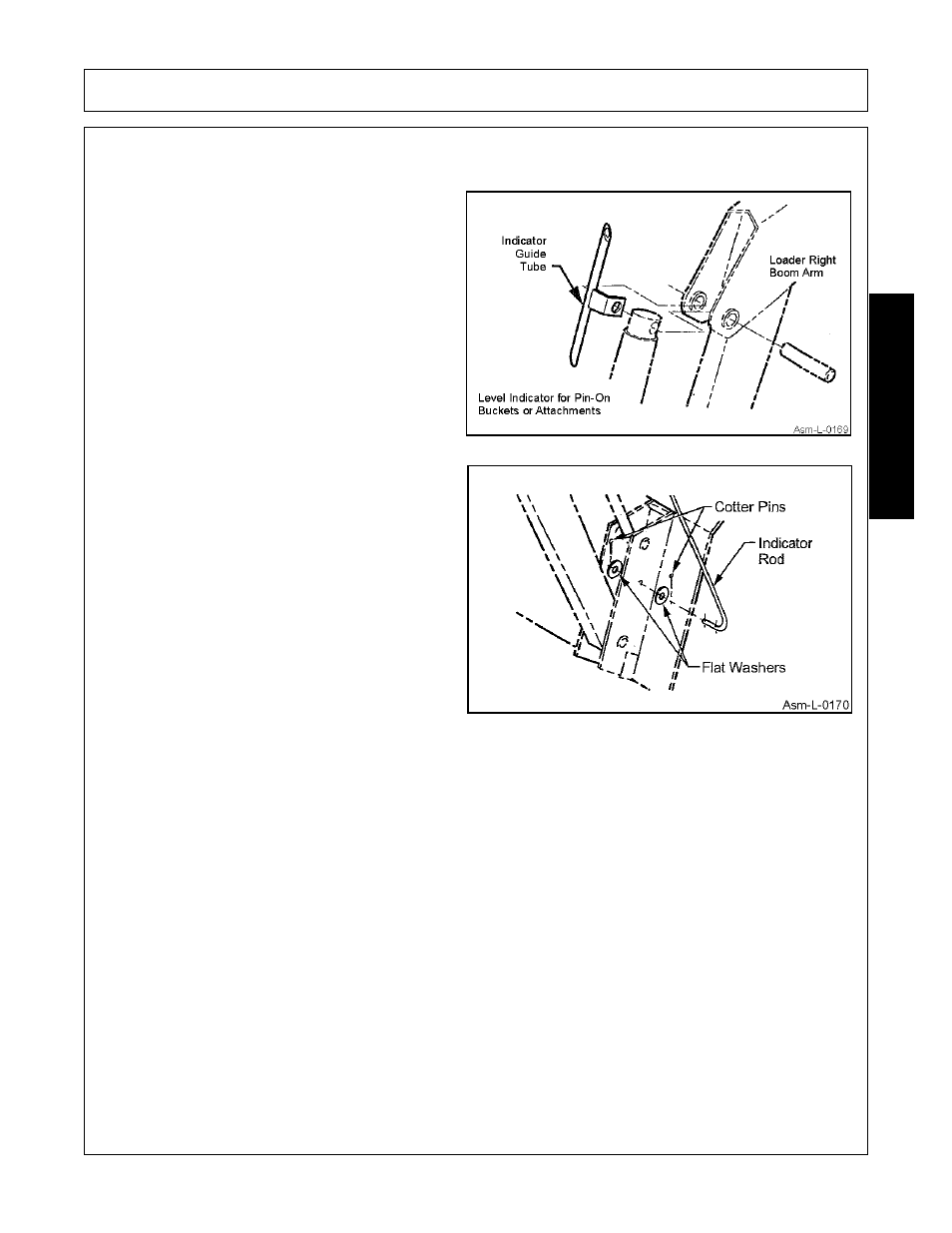

Installing Bucket Level Indicator

1. Attach indicator guide tube to cylinder pin.

Position guide tube to inside of boom, Figure
Asm-L-0169.

2. Slide level indicator rod through guide tube,

Figure Asm-L-0170. Attach other end of rod
with 1/8 x 1” cotter pins and 3/8” flat washers.
Attach lower end of rod to attachment ear.

Locate tractor and loader on level surface. With
bottom of attachment resting on surface, cut off
excess rod flush with end of guide tube or paint
exposed rod a contrasting color.
