top screw
8 of 8

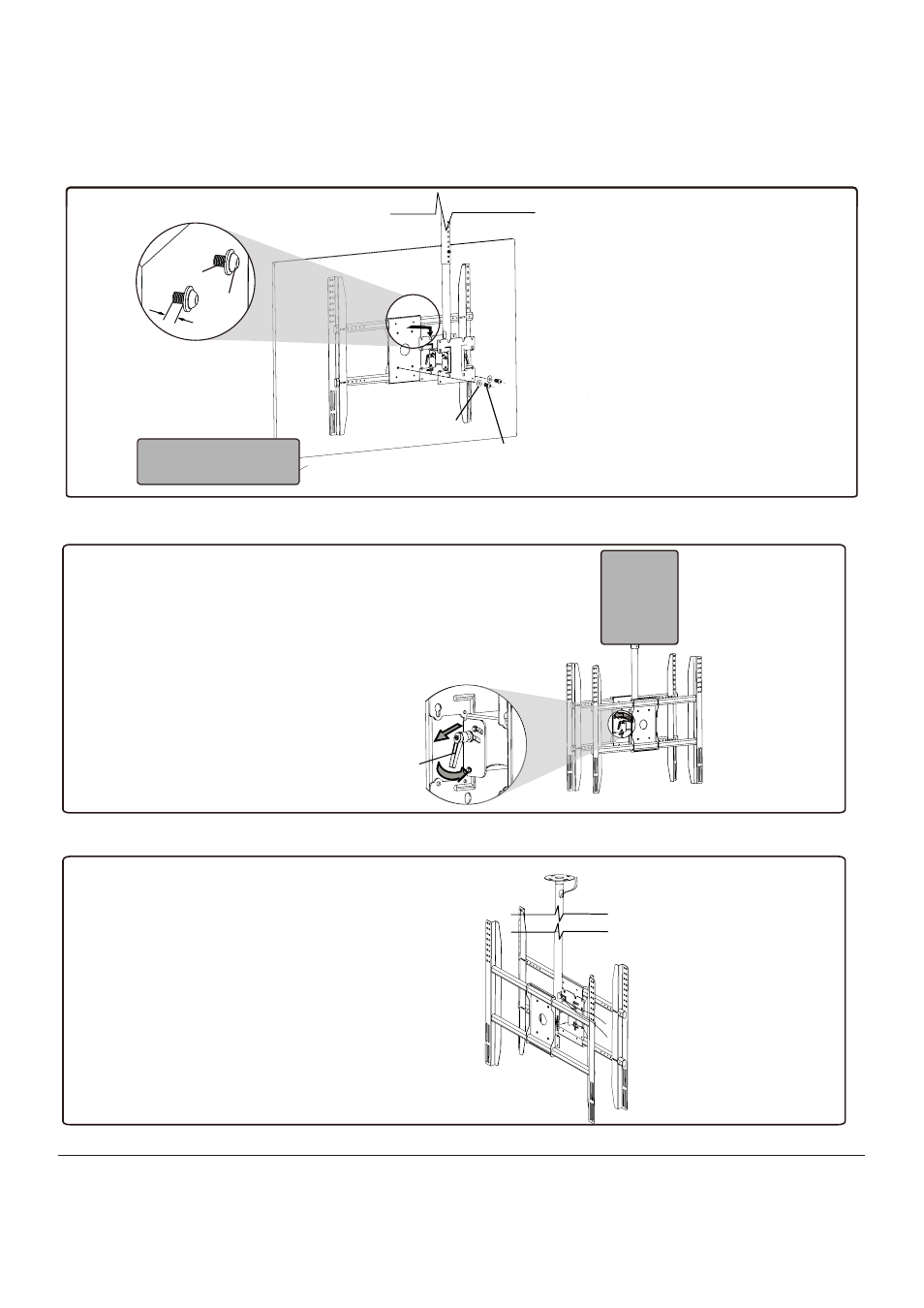

Attach Assembly Adapter Plate to Assembly Arm
.25"
Iron spacer
washers
M8x15mm
screw bolt
M8x15mm
screw
1. Insert two M8x15mm screws
and two metal washers into swivel box
on Assembly Adapter Plate as above
shown.
Leave approx. 1/4" of exposed thread.
NOTE:This procedure will require
two persons.Ensure that the arm is
set to its maximum negative tilt prior
to attaching the display
2. Lift the display and hook it
over the mounting head by lowering
the exposed portion of the top screws
down the open key slots.
3. Once in position, attach the bottom
two M8x15mm screws and two
washers to secure the display to the
mounting head using M5mm Allen
Wrench.
WARNING:
Before removing
your
display,ensure
the display has a
negative Tilt and
Tilt Lever is
LOCKED!
Loosen
Tighten
1.Loosen Tiltlevers(Only enough to
allow controlled adjustment)
2. Adjust Tilt
3. Lock Tilt Levers(Tighten)
4. Once Tilt Levers are locked,the
position of the levers can be adjusted
without loosening ortightening the unit
by pulling the levers outwards and then
repositioning them to a vertical,less
obtrusive position.
pull cables up and through conduit .
Tiltlever
Wire Management
Tilt Adjustment and cord Coves
