Attach threaded end of adjuster tube (AA) to threaded
fitting in ceiling plate
Attach threaded end of adjuster tube (DD
C DD
) to threaded
fitting in ( ) and lock nut ( ).
. Tighten securely aligning
slot in end of adjuster tube (AA ) with one of the holes
in the side of threaded fitting. Insert and tighten one
M4 x 3 mm allen cap screw ( C) to lock adjuster
tube (AA) to threaded fitting.
‡ Installer must verify that the ceiling will safely support
the combined weight of all attached equipment and
hardware.
WARNING
‡ Adjuster tube must be fully threaded (six or seven
full turns) onto threaded fitting in ceiling plate and then
locked with screw (C).
WARNING

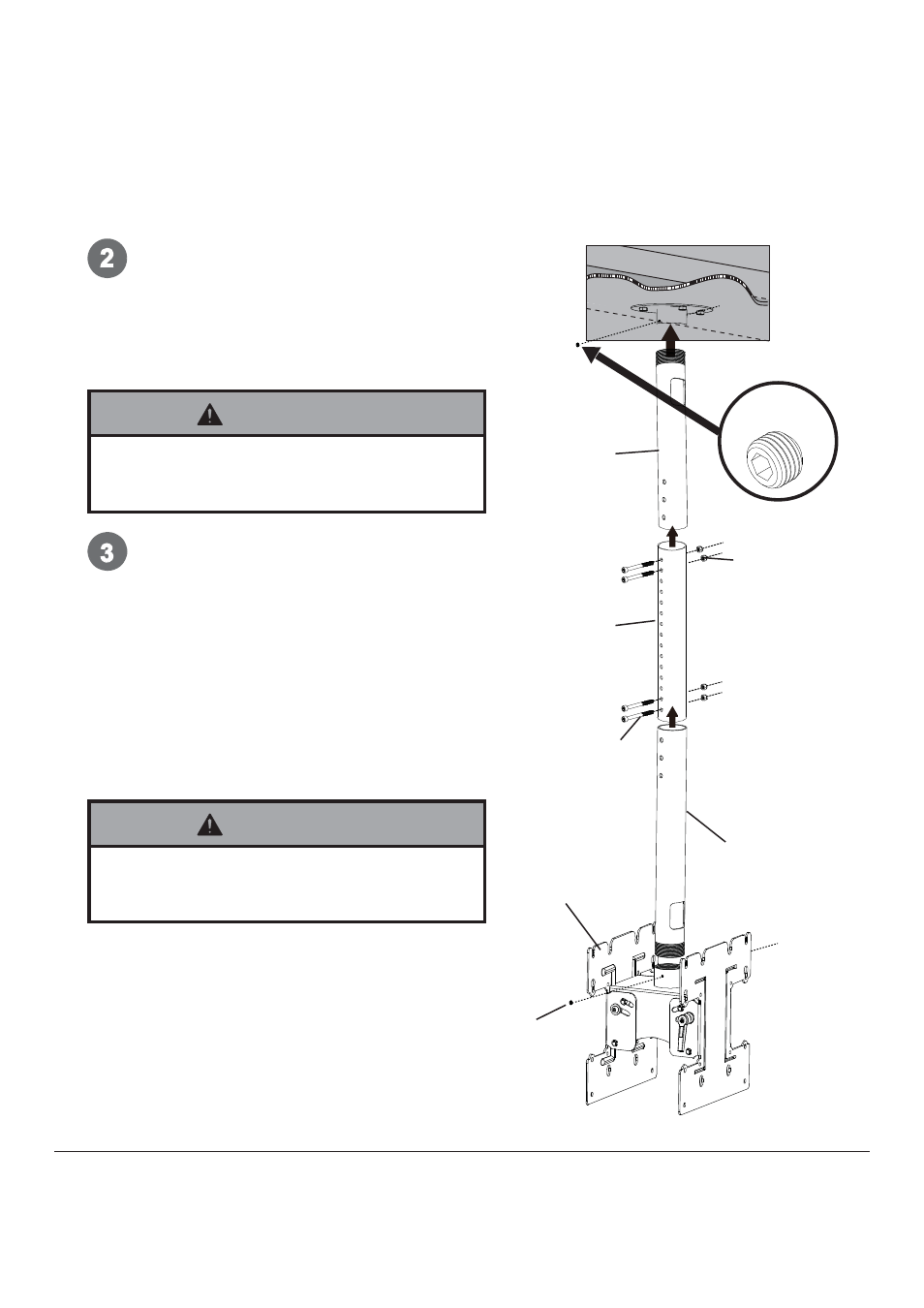

Installation of Extension Column
AA
C
CC
DD
C
A
BB
A
Slide extension pipe (CC ) over adjuster tube (BB)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws( A) and lock nut ( A ).
Slide extension pipe (BB) over adjuster tube ( AA)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws (A) and lock nut ( A ).
