Note:
Recessed Mounting Holes.
If the mounting holes are recessed
into the back of the display, use the
supplied spacers to pack the
recessed hole. If the mounting
screw is M5&M6,use the
Spacers1.(K.1.)If the mounting screw
is M8,use the Spacers 2.(K.2.)
Ensure that the brackets are

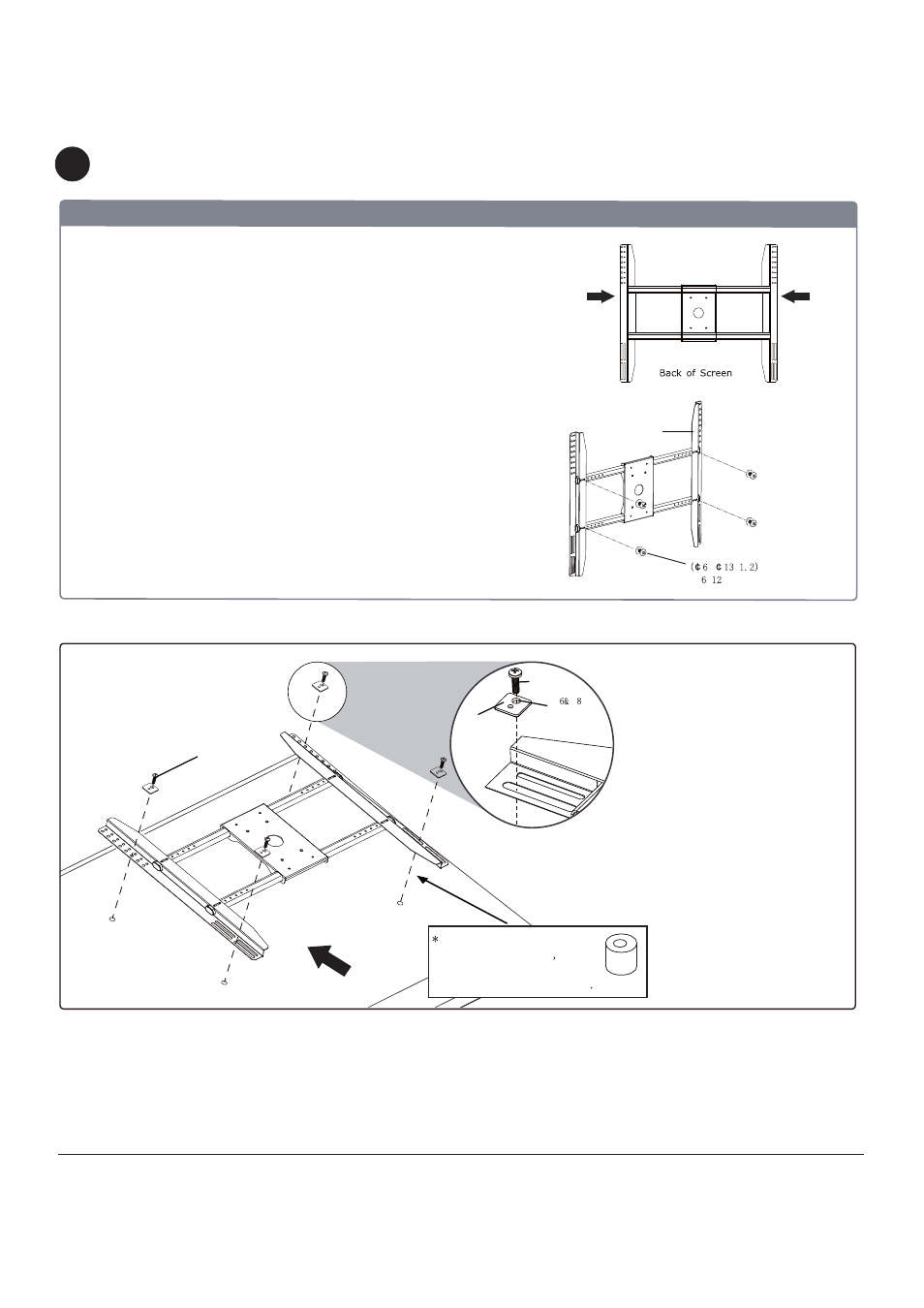

Mounting the Assembly Adapter Plate to screen
Modify the Adapter Plate
Adaptor Modify the Assembled Adapter Plate
Slide the adapter brackets into Assembled adapter plate slightly.
Place the Assembled Adapter Plate on the back of the display with
one Adapter Bracket aligned with a set of vertical mounting
holes.Then,slide the other Adapter Bracket in or out until it aligns
with the second set of vertical mounting holes.The Adapter should
be horizontally centered on the back of the flat panel display.
Adaptor and hooks Use four M6x12 screws (A)and four iron spacers(A)
and tighten it with Phillips Head Screw Driver.
securely fixed to the display.
C
D E F G or H
Adapter
Bracket
M x
Screw
Metal Washer
x x
Top of
Display
For screen with a hole
pattern in a pocket spacers
go between Assembly
Adapter Plate and screen
Spacers
Mounting
Screw
M M
Washer Hole
Square
Washer(J)
