Figa-1.1 figb.1, Installing aa to wood stud wall – Monoprice 6519 MHAI-700 User Manual
Page 5
5 of 7

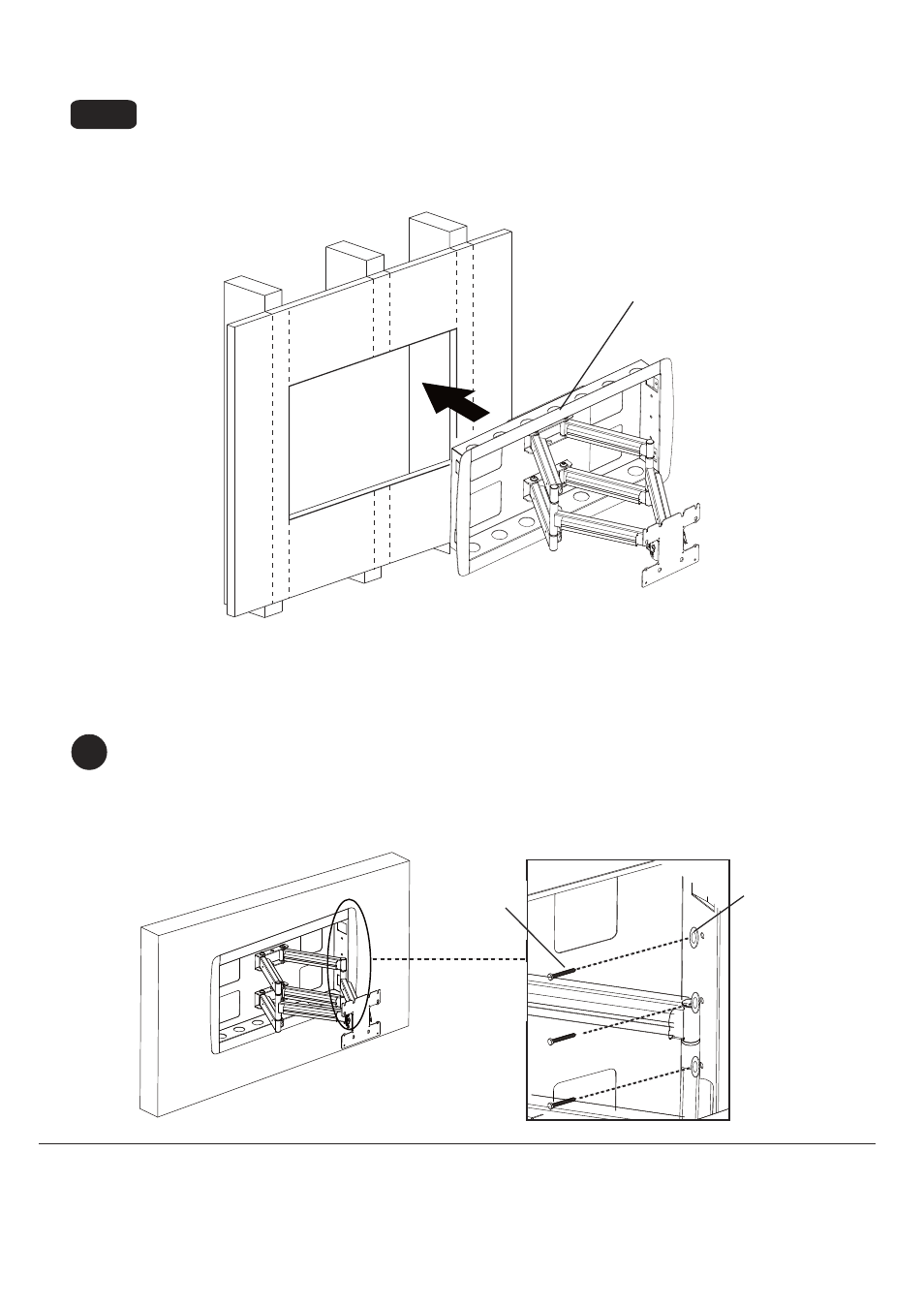

figA-1.1
figB.1
NOTE
When inset AA into Wood Stud Wall ,mark installed holes with pen ,as picture A-1.1 After finishing above
process take out AA . Drill is six 1/4"(6mm) dia. holes are 3"(60mm) deep.
Installing AA to Wood Stud Wall
Insert AA into wall again, install
washer
(C) in marked holes,Make sure
AA is level.This process must be done two or more people.
Install AA into wall as shown in figure B.1 Make sure AA
is level.Fix them with six M8x70 (N)
hexagonal
screws.as shown in figure B.1
B
AA
N
C
