Monoprice 6519 MHAI-700 - Manual (Page 4)

4 of 7

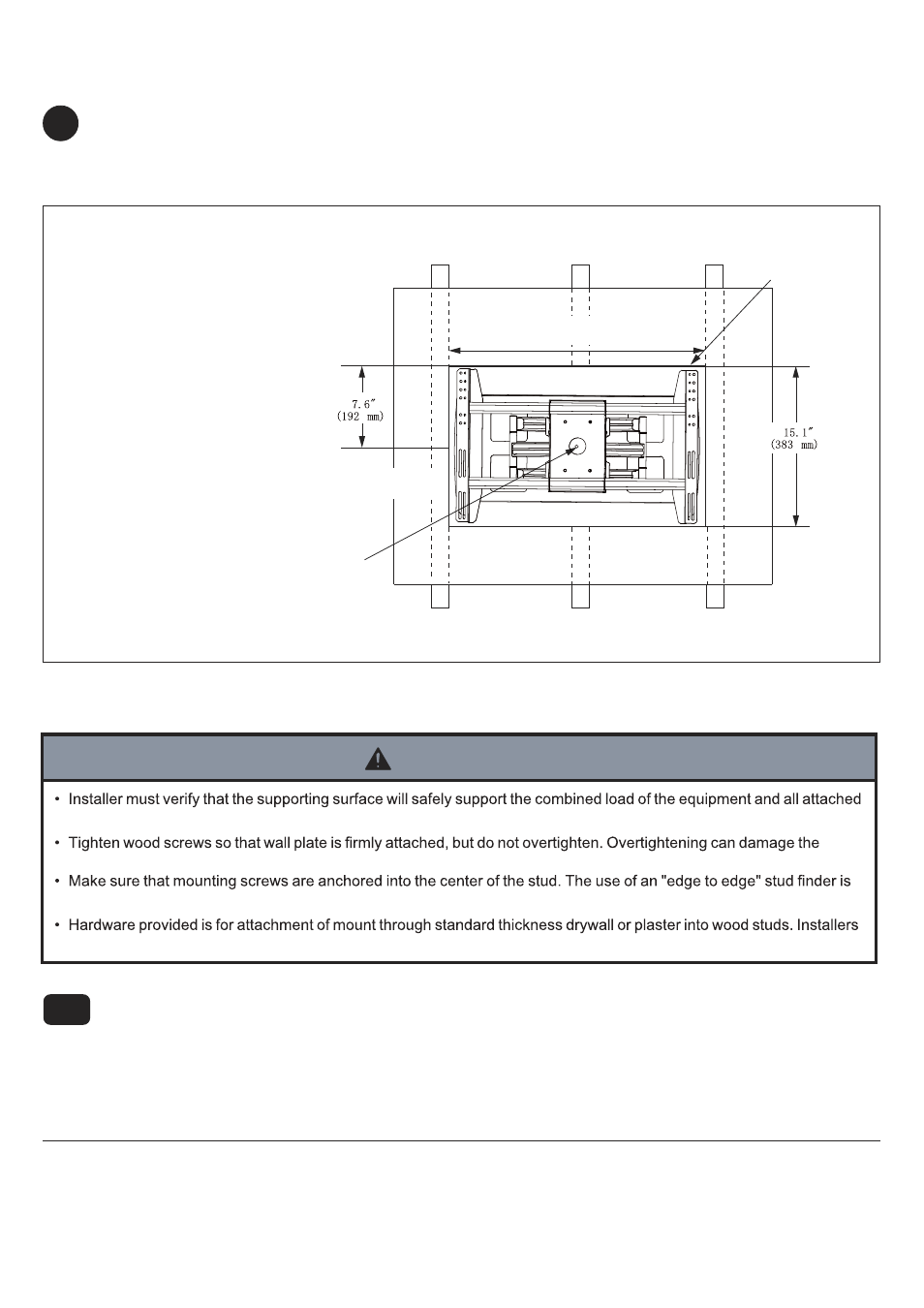

In-wall box (BB) can be installed between two studs 16" off center. Use a stud finder to locate the edges of the stud.
Use of an edge-to-edge stud finder is highly recommended. Based on its edges, draw vertical lines down the inside
edges of stud’s. Mark desired center of screen between studs. Draw a horizontal line above desired center of screen
as indicated in figure A.1 Draw a second horizontal line 15.1" (383 mm) below this line to outline wall
opening between inside edges of studs. Remove drywall inside cut outline.
Installation of Wood Stud Wall
A
Center of adapter plate will be
located 7.6" (192 mm) below the
top cut line.
Note: Center of adapter plate
may not represent screen center.
Placement of in-wall box will
depend on the screen center and
location of screen mounting
holes in relation to adapter plate.
Screen center with models
MHAI700:
30.4"
(771 mm)
CENTER OF
ADAPTER PLATE
CENTER OF
ADAPTER PLATE
TOP CUT LINE
fig. A.1
Installation of Wood Stud Wall (continued)
hardware and components.
screws, greatly reducing their holding power.
highly recommended.
are responsible to provide hardware for other types of mounting situations.
WARNING
Insert ( AA) into cut-out. Level AA, and mark the center of the six mounting holes.
Make sure AA is level, secure it using six M8X70(N) hexagonal screws
as shown in figure A-1.1
A-1
