BBK Performance 1763 User Manual
Page 2
Step 12 Check the throttle body for smooth action by opening and closing the flaps a few times
with your fingers.
You should feel a slight drag from the electric motor, but it should never bind up or stick.
Step 13 Install the throttle body onto the intake manifold using the 2 supplied screws on the top
mounting holes,and the original nuts on the bottom then re-establish the wiring connections.
Step 14 Re-install the intake hose and re-attach the PCV tube.
Step 15 Connect the (–) negative battery terminal

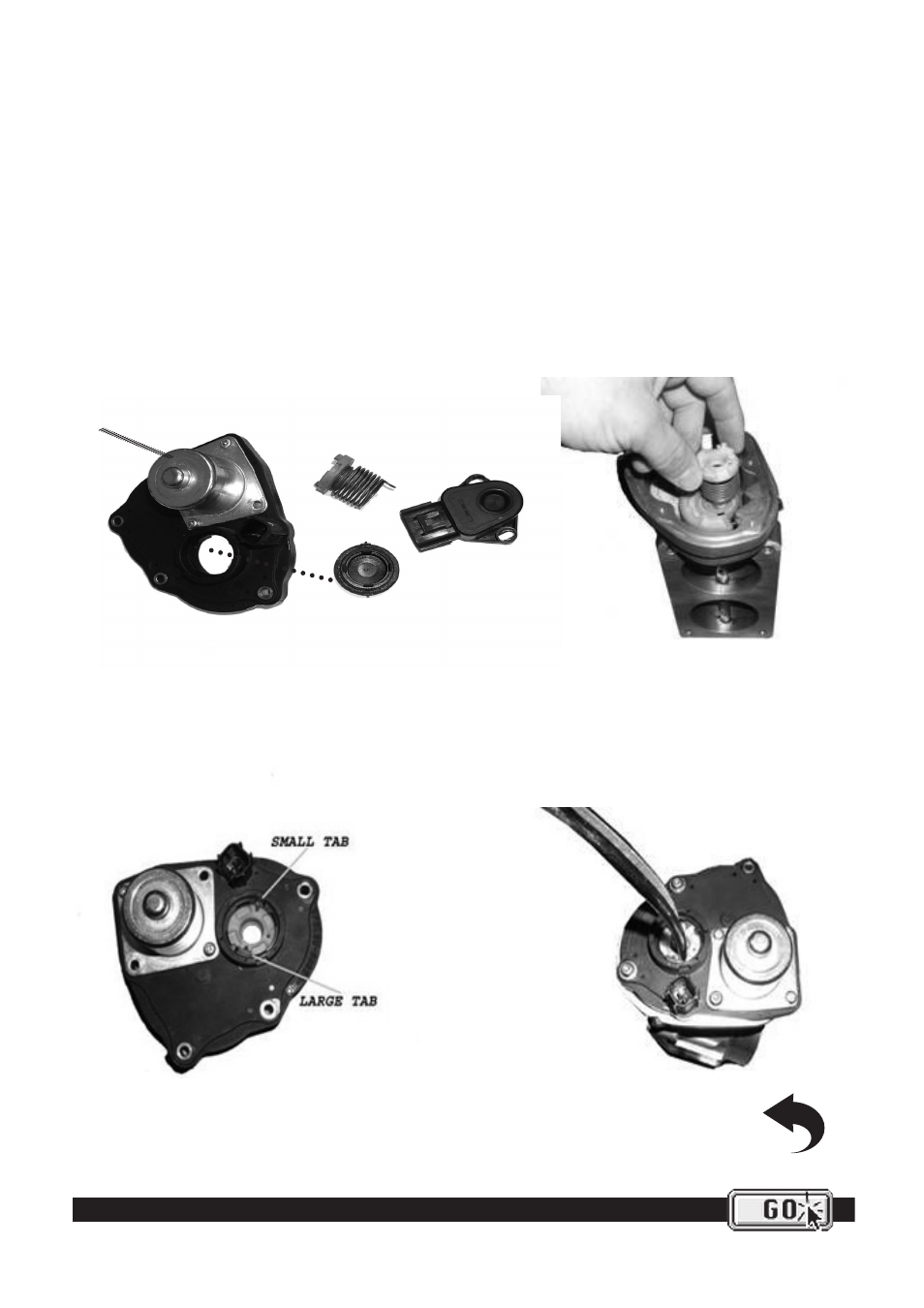

ASSEMBLY PHOTOS
w w w . B B K P E R F O R M A N C E . c o m
IMPORTANT- All appropriate safety equipment(i.e: gloves,tools) must be used during the installation of these product(s).
BBK Performance, Inc. accepts no responsibilty for injuries resulting in the installation of any product(s).
MORE ON
THE BACK
Motor Housing
Plastic capped
spring
Throttle Postion
Sensor
Removable cap
(removed from housing)
DO NOT
REMOVE!
