9
ASSEMBLY INSTRUCTIONS

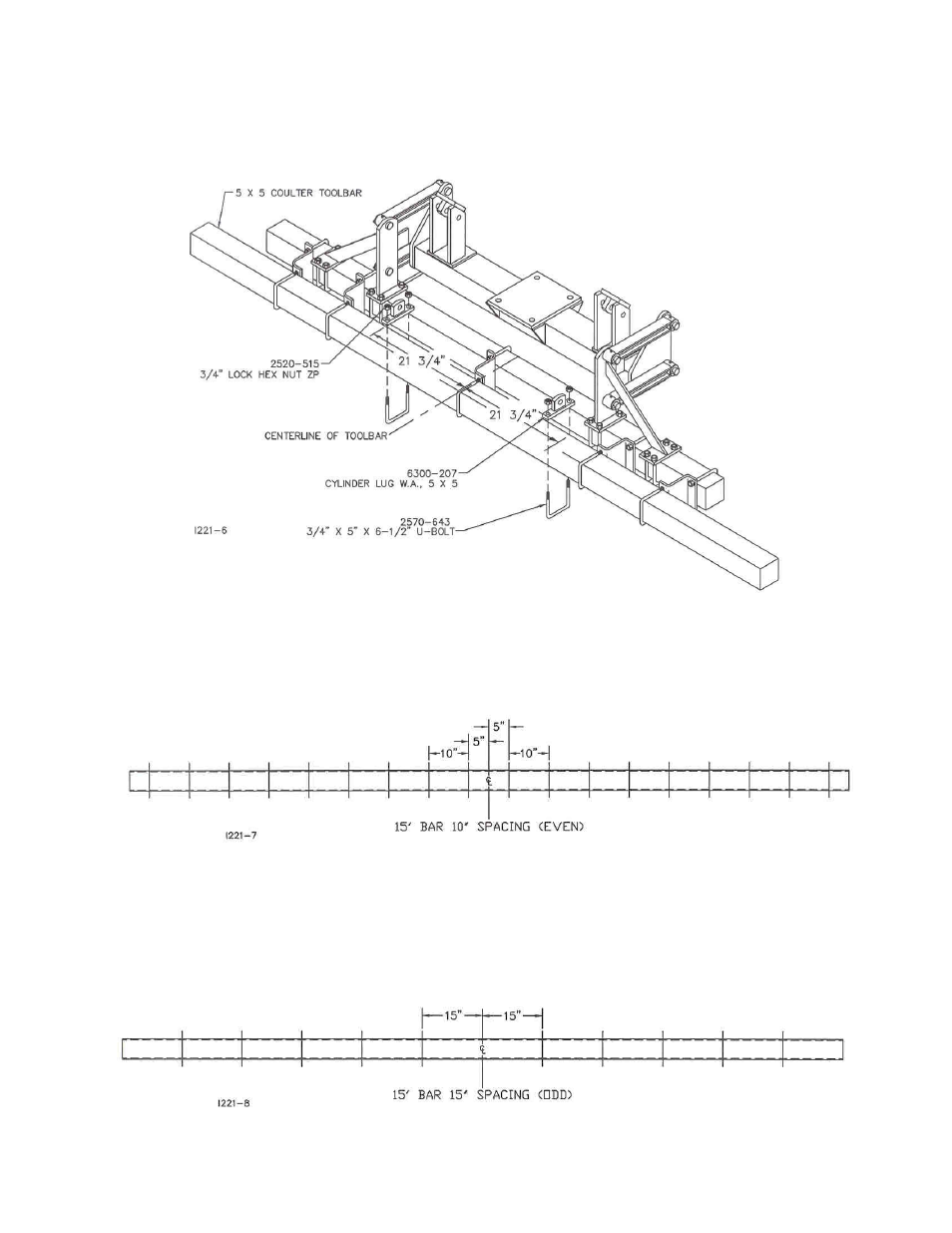

STEP 5. Attach the 2) 6300-207 cylinder lugs to the coulter toolbar using ¾” u-bolts and ¾” lock nuts.
Locate the inside edge of the cylinder lug 21 ¾” from the centerline of the coulter toolbar.
Clamp Kits: Even number of openers
STEP 6A. Determine the location on the 5” x 5” toolbar. If your implement has an even number of
openers, divide the row width by two and chalk mark that distance for the first coulter on each side of the
centerline. Now mark the rest of the toolbar for the coulter location, measuring from the two center coulters.
See example of even number of openers on 10” spacing.
Clamp Kits: Odd number of openers
STEP 6B. Determine the location on the 5” x 5” toolbar. If your implement has an odd number of openers,
start on the centerline of the toolbar and measure each way the distance of the row spacing and mark the
location of each coulter. See example of odd number of openers on 15” spacing.
