Assembly instructions – Yetter 6300 Coulter Cart User Manual
Page 14
14
ASSEMBLY INSTRUCTIONS
Optional Second Toolbar
STEP 1. Hydraulically lower the coulter cart so that the coulters are touching a hard, level surface.

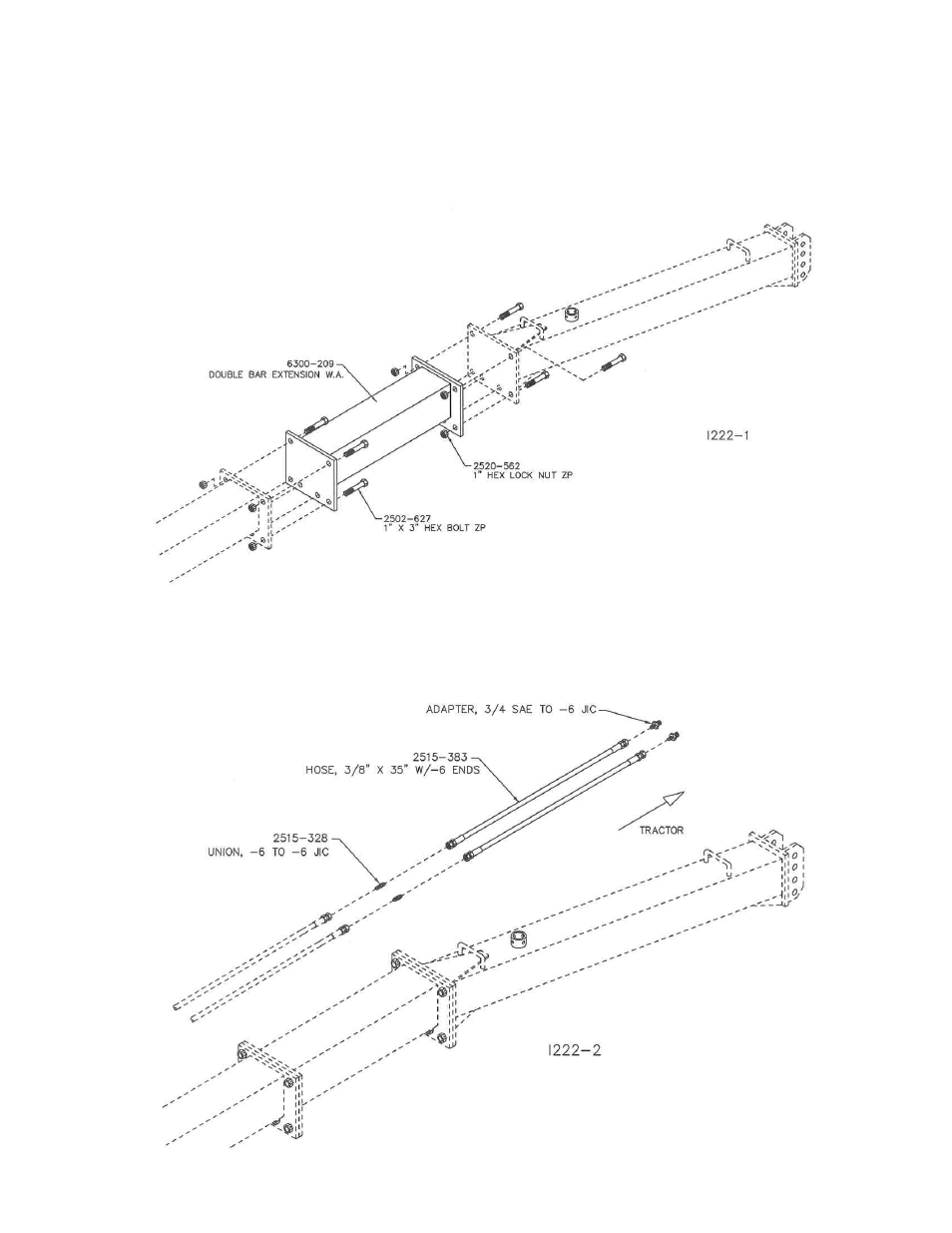

STEP 2. Remove the drawbar 6300-202 from the cart main frame. Bolt in the double bar extension 6300-
209 and reattach the drawbar using the 1” x 3” hex bolts and 1” locknuts. (Torque to 400 ft. lbs.)
STEP 3. Mount the additional hanger assembly on the tongue extension. Refer to STEP 1. of the
assembly instructions for the hanger bar assembly.
STEP 4. Install the 3/8” x 35” hydraulic hoses to the end of existing hoses of the transport lift using the 3/8”
union fittings.
