Telenav for T-Mobile Supported Devices: v5.2 for Samsung T919 Users Guide - Manual (Page 36)

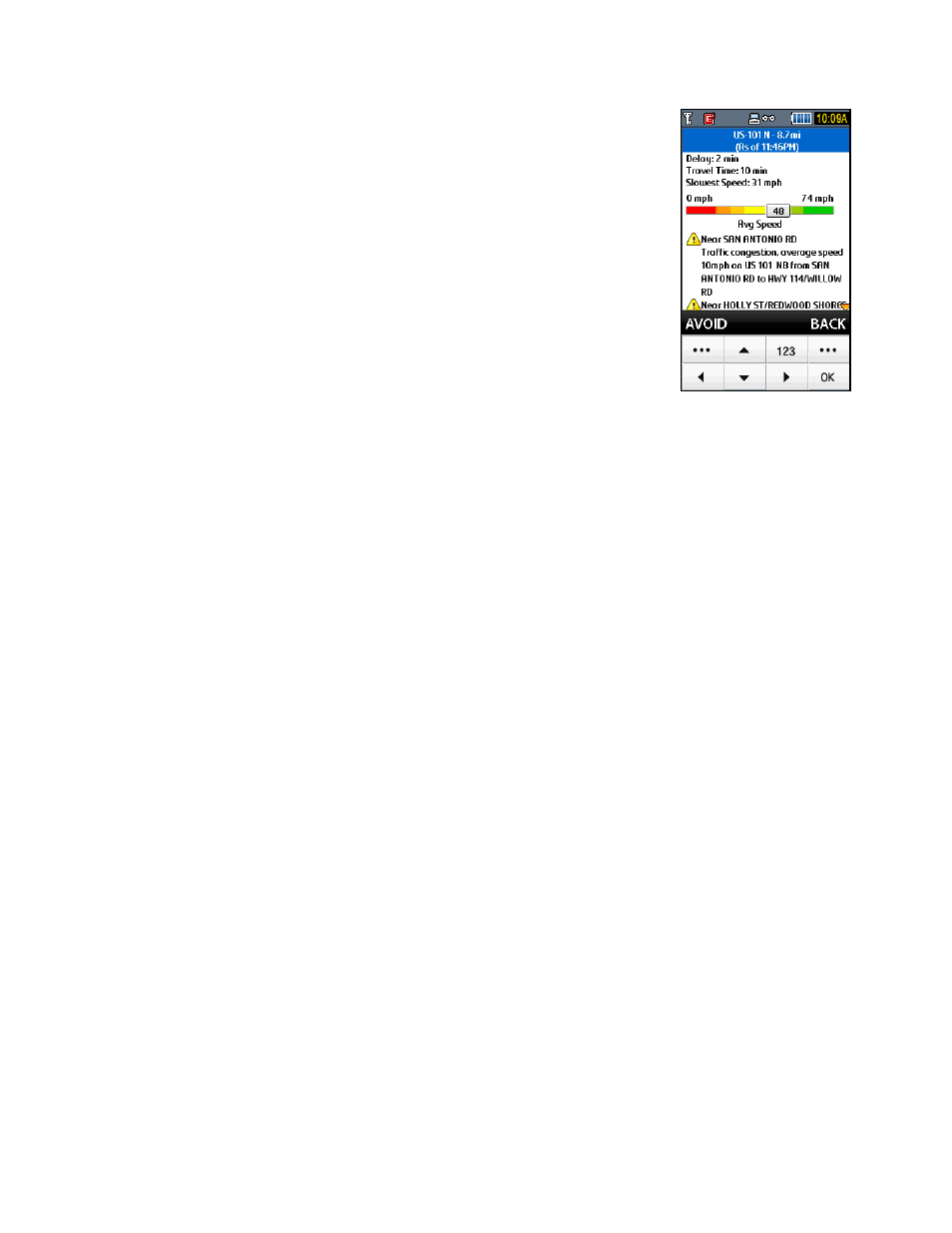

If you click on an incident line, you can view the details. Below is an explanation of
what you will see on the Traffic Details screen:
• Delay - The additional time it will take to travel the segment as compared with
the time it would take if traveling at the posted speed.
• Travel Time - Estimated time it will take to travel the segment.
• Slowest Speed - Slowest speed observed on the segment.
• Average Speed Bar - Average speed of a segment on a scale of 0 to the
maximum-posted speed for that segment.
• Incident Detail - Each incident is displayed with the following:
o Incident icon color-coded by severity
o Location
o Additional comments
NOTE: If there is no flow information for a segment, the Average Speed bar on the
Details page is grayed out.
TIP: Press the AVOID softkey to find a new route that avoids this segment.
© TELENAV, INC. 2003-2008 PAGE 36 OF 60
