Upper Main Cross Member

The upper main cross member has been designed to accommodate either a car
with stock wheel wells or one that has been mini tubbed with the frame rails still
in the factory position. The cross member consists of three parts, 2 side plates
and the 1 center X member.

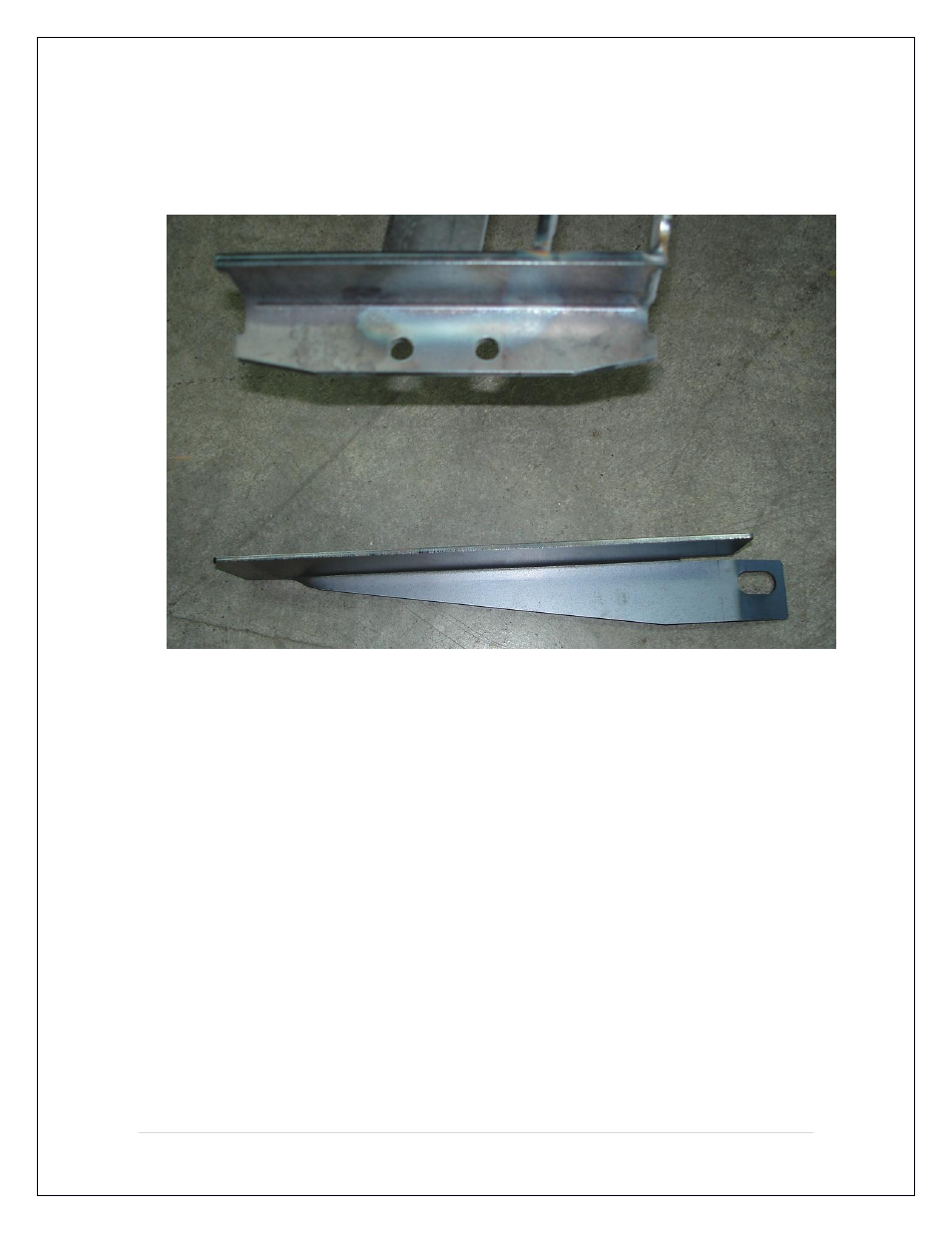

This photo shows the passenger side. FORWARD >>>

4. Position the side reinforcement plate on the inside/ bottom of the frame rail. The
rear of the plate should be 16.75” forward of the original rear leaf spring shackle
mounting hole center line. On the '67-68 Camaro, use the upper bump stop
mounting bolt to align the side brackets through the provided mounting hole in the
bracket. Tack weld brackets in place.
