17 |

P a g e


15. Remove the rear seat. Remove one trailing arm from the rear axle mount and
swing it down on the front pivot. Using the two holes in the spring pockets as a
guide, drill holes up through the floor. Install two 3/8 x 1 ¼“ bolts through the
spring pocket and floor and tighten with the accompanying nuts. Repeat for other
side. Reinstall rear seat.

16. Reinstall all components and tighten all hardware, lubricate all grease fittings
and fill rear end with oil.

17. Check all fasteners and axle pinion angle one last time. Hook up the brakes
and install the wheels. Lower the car down to check your ride height. Adjust
shocks until desired ride height is achieved.

18. It is always a good idea to have the alignment checked by a professional
alignment shop when changing suspension parts.

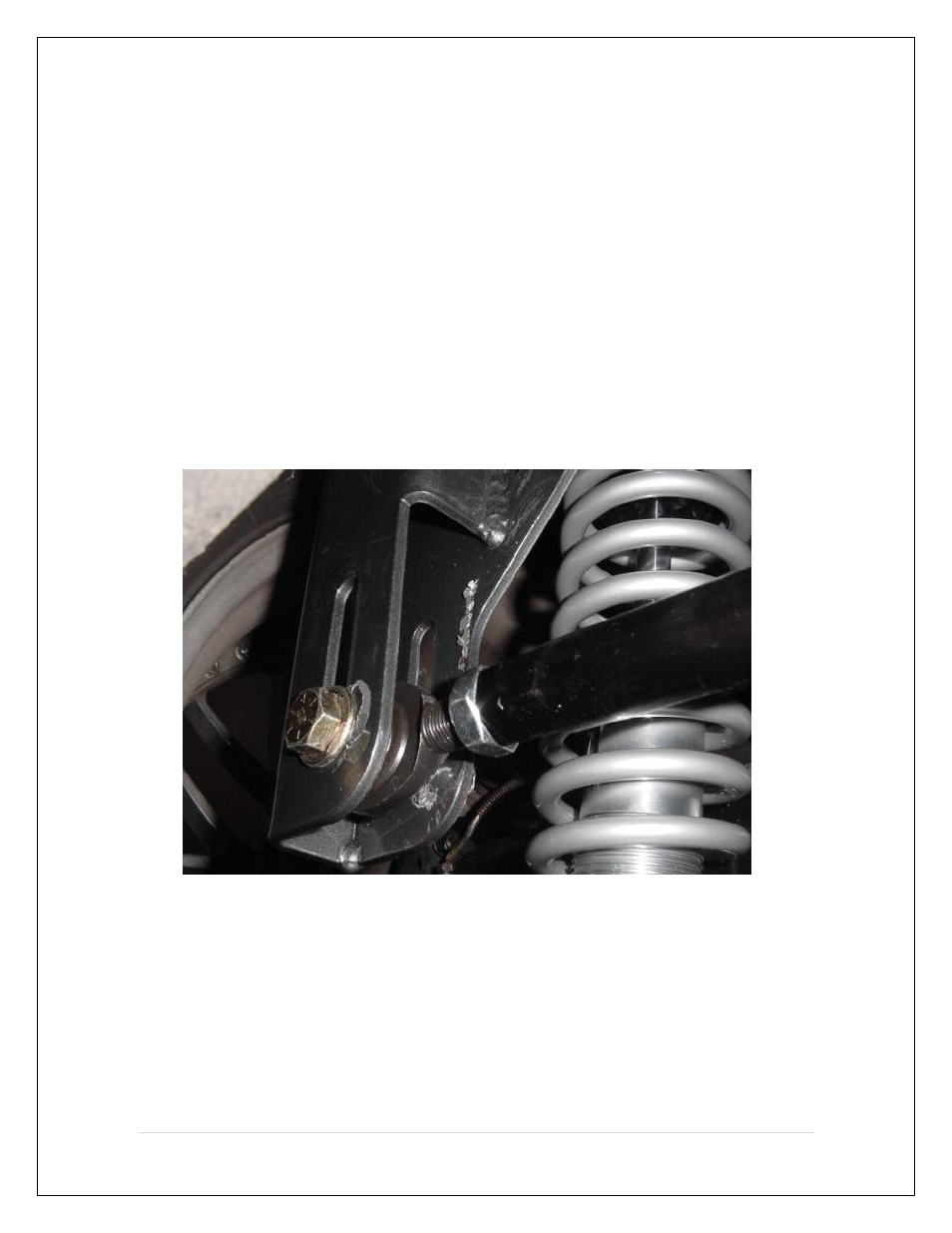

The pan hard bar adjustment includes two heim joints to center the rear end and
help wheel fitment. The driver side pan hard bar height adjustment is for
adjusting the roll center and needs to be set level at ride height with all the
finished weight in the car.
