ADSL 4-Port Ethernet USB Wireless-G Router User Guide

Page 44 of 52

5.6.23

Firmware Upgrade

You can upgrade the ADSL Router’s firmware, clicking on Update Gateway under the Tools

page. To upgrade the firmware, click browse, find the firmware file to download. Make sure this

is the correct file. Click on upgrade firmware. Once the upgrade is complete the ADSL Router

will reboot. You will need to log back onto the ADSL Router after the firmware upgrade is

completed. The firmware upgrade should take about 5 minutes to complete. Note: Do not

remove power from the ADSL Router during the firmware upgrade procedure. See

Fig 1-41.

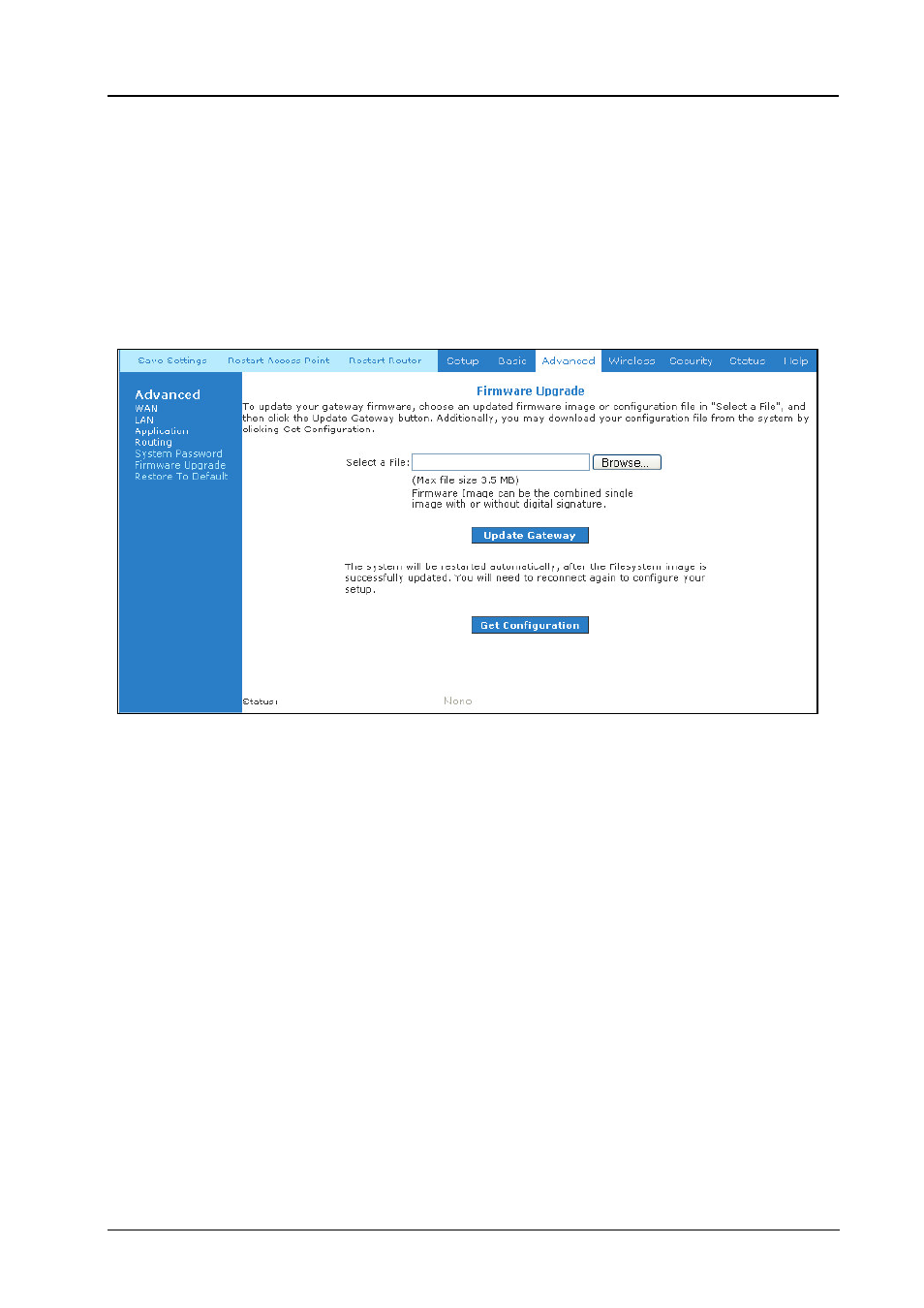

Figure 1-41 : Firmware Upgrade
