ADSL 4-Port Ethernet USB Wireless-G Router User Guide
ADSL 4-Port Ethernet USB Wireless-G Router User Guide Page 37 of 52
Private IP Ranges
Class A: 10.0.0.0 ~ 10.255.255.255
Class B: 172.16.0.0 ~ 172.31.255.255
Class C: 192.168.0.0 ~ 192.168.255.255
4. Auto NetBIOS: It allow proxy server to use any NetBIOS name which the Auto NetBIOS
still allow PC to surf the web with a condition that the router gateway MUST be inPrivate
IP Ranges.

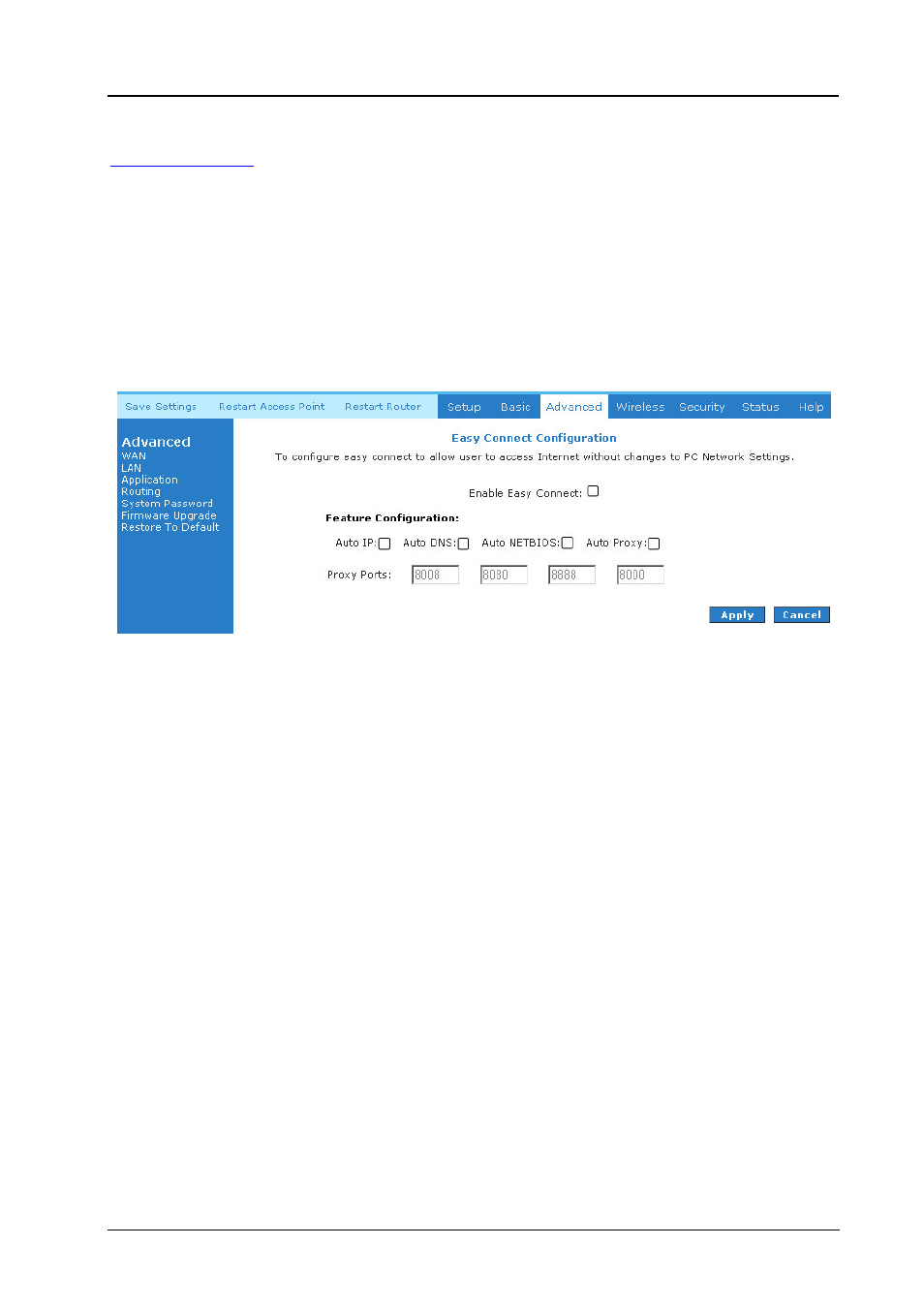

Figure 1-33 : Easy Connect Configuration
5.6.16
Port Forwarding
Using the Port Forwarding page, you can provide local services (for example web hosting) for
people on the Internet or play Internet games. When users send this type of request to your
network via the Internet, the ADSL Router will forward those requests to the appropriate PC.
Port forwarding can be used with DHCP assigned addresses but remember that a DHCP address
is dynamic (not static). For example, if you were configuring a Netmeeting server, you would
want to assign this server a static IP address so that the IP address is not reassigned. Also
remember that if an Internet user is trying to access an Internet application, they must use the
WAN IP address. The port forwarding will translate the WAN IP address into a LAN IP
address.
To configure a service, game, or other application select the external connection (for example the
Internet connection), from the Home screen, click Advanced and under Advanced, select Port
Forwarding. Next select the computer hosting the service and add the corresponding firewall
rule. If you want to add a custom application, select the User category, click New and fill in the
port, protocols and description for your application. For example, if you want to host a
Netmeeting session, from the Home screen, click Advanced and under Advanced, select Port
Forwarding. First select the IP address for your Netmeeting server. Next select the Audio/Video
category and add Netmeeting to the applied rules box. To view the management rules, highlight
Netmeeting and select view; this will display the pre configured protocols and ports that
Netmeeting will use. Now assuming that your WAN connection is correct, you can run
Netmeeting from your server and call users that are on the Internet. If you know your WAN IP
address, users can call you. See Fig 1-34.
