ADSL 4-Port Ethernet USB Wireless-G Router User Guide
ADSL 4-Port Ethernet USB Wireless-G Router User Guide Page 29 of 52

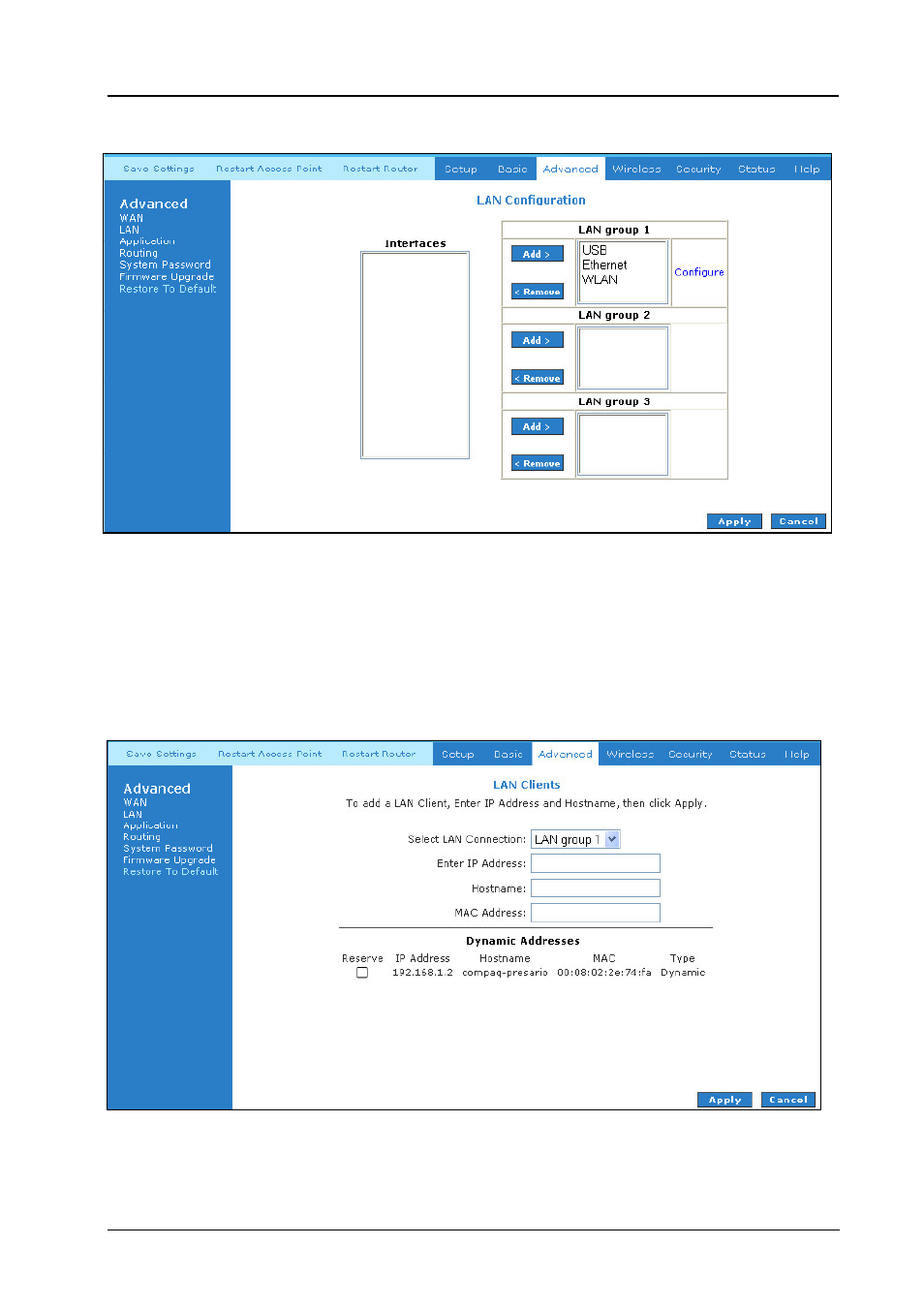

Figure 1-23 : LAN Configuration
5.6.6 LAN Clients
To add a LAN client select LAN clients, under LAN. If DHCP is used, all DHCP clients are
automatically assigned. If a fixed IP address server is on the LAN and you want this server to be
visible via the WAN, you must add its IP address. Once the IP address has been added to you can
apply Port Forwarding and Access Control rules to this IP address.
Figure 1-24 : LAN Clients
