ASUS A7N8X-LA (Focus) Motherboard 3
3. System memory
The motherboard comes with two Double Data Rate (DDR) Dual Inline Memory
Module (DIMM) sockets. These sockets support up to 2GB system memory using
184-pin unbuffered non-ECC PC2700/PC2100 double-sided DDR DIMMs.

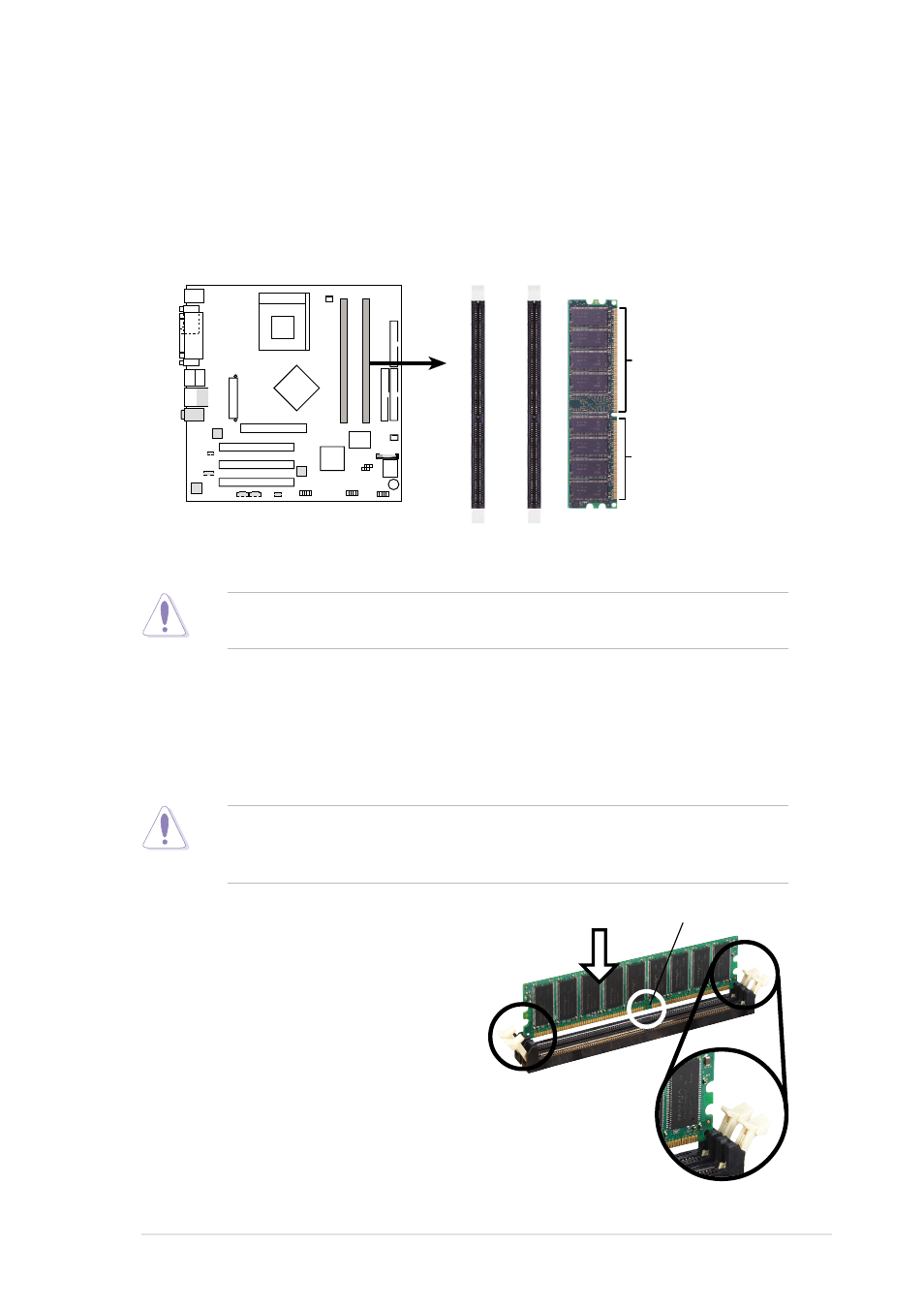

The following figure illustrates the location of the DDR DIMM sockets.
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to both
the motherboard and the components.
Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing
the retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
place and the DIMM is properly
seated.
Installing a DIMM
You may install 64MB, 128MB, 256MB, 512MB, and 1GB DDR DIMMs into the
DIMM sockets using the memory configurations in this section.
Unlocked Retaining Clip
DDR DIMM notch
CAUTION: DIMMs are keyed to fit with only one direction. DO NOT force a
DIMM into a socket to avoid damaging the DIMM.
A7N8X-LA/Focus
A7N8X-LA/Focus
184-Pin DDR DIMM Sockets
80 Pins
104 Pins
DDR1 DDR3
