6 ASUS A7N8X-LA (Focus) Motherboard
5. Jumpers
1. Clear RTC (3-pin CLRTC1)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS.
You can clear the CMOS memory of date, time, and system setup parameters
by erasing the CMOS RTC RAM data. The RAM data in CMOS, that include
system setup information, is powered by the onboard button cell battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (Default) to pins 2-3 (Clear CMOS).
Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap
back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup
to re-enter data.
Except when clearing the RTC RAM, never remove the jumper caps on default
position. Removing the cap will cause system boot failure!

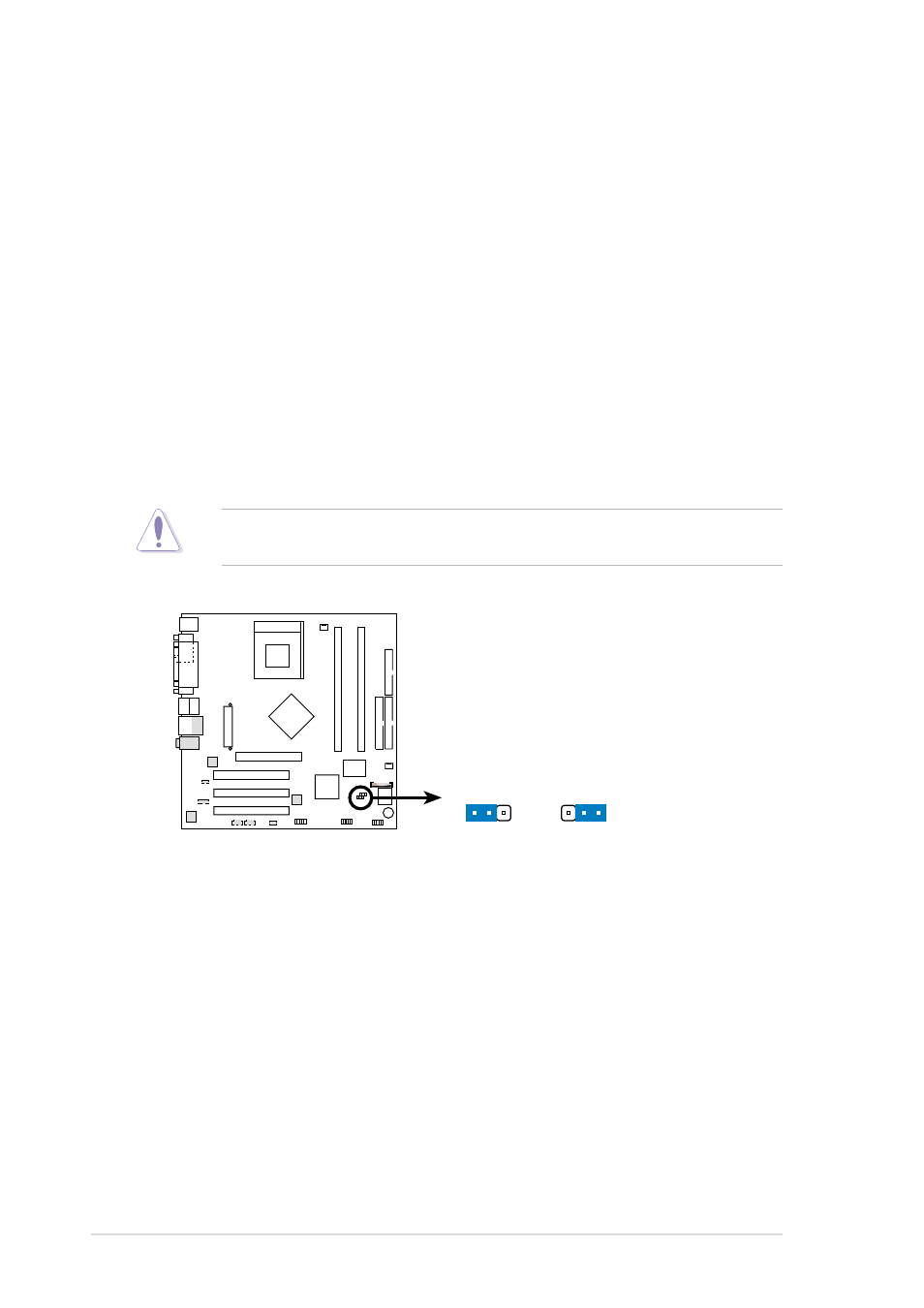

A7N8X-LA/Focus
A7N8X-LA/Focus
Clear RTC RAM
CLRTC1
Normal Clear CMOS
(Default)
2 3 1 2
