12 ASUS A7N8X-LA (Focus) Motherboard

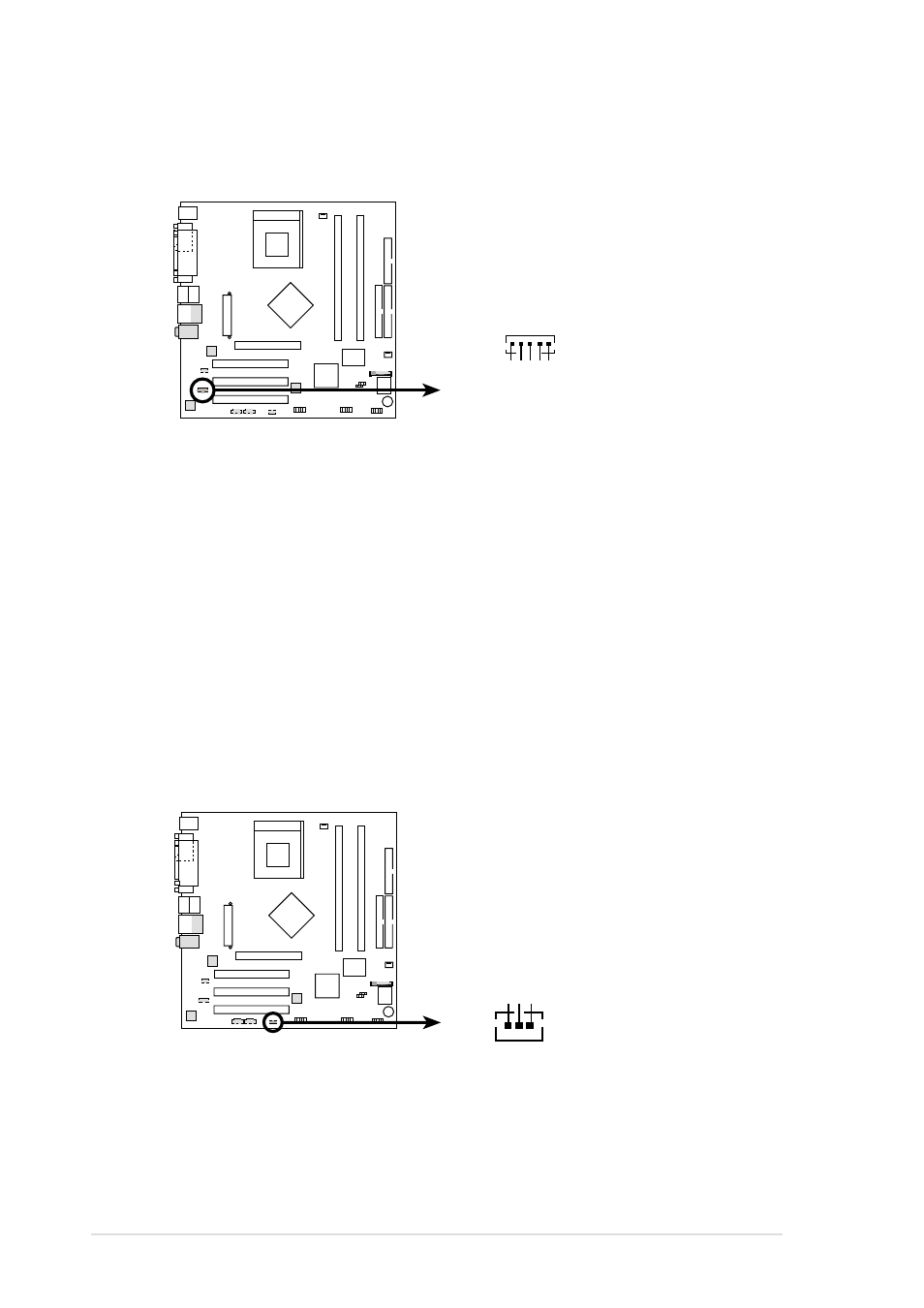

9. Front microphone connector (3-pin FP_MIC1)
This connector is for a chassis-mounted front panel microphone jack. Use a
3-pin audio cable to connect the microphone jack to this connector.
A7N8X-LA/Focus
A7N8X-LA/Focus
Front Microphone Connector
FP_MIC1
MIC Power MIC Input Ground
8. Front headphone connector (5-pin HJACK1)
This connector is for a chassis-mounted front panel headphone jack.
A7N8X-LA/Focus
A7N8X-LA/Focus
Front HeadPhone Header Connector
HJACK1
Analog Ground
HP-L
Signal
FRONT
OUT
-L
Signal
HP-R Signal
FRONT
OUT
-R Signal
1
