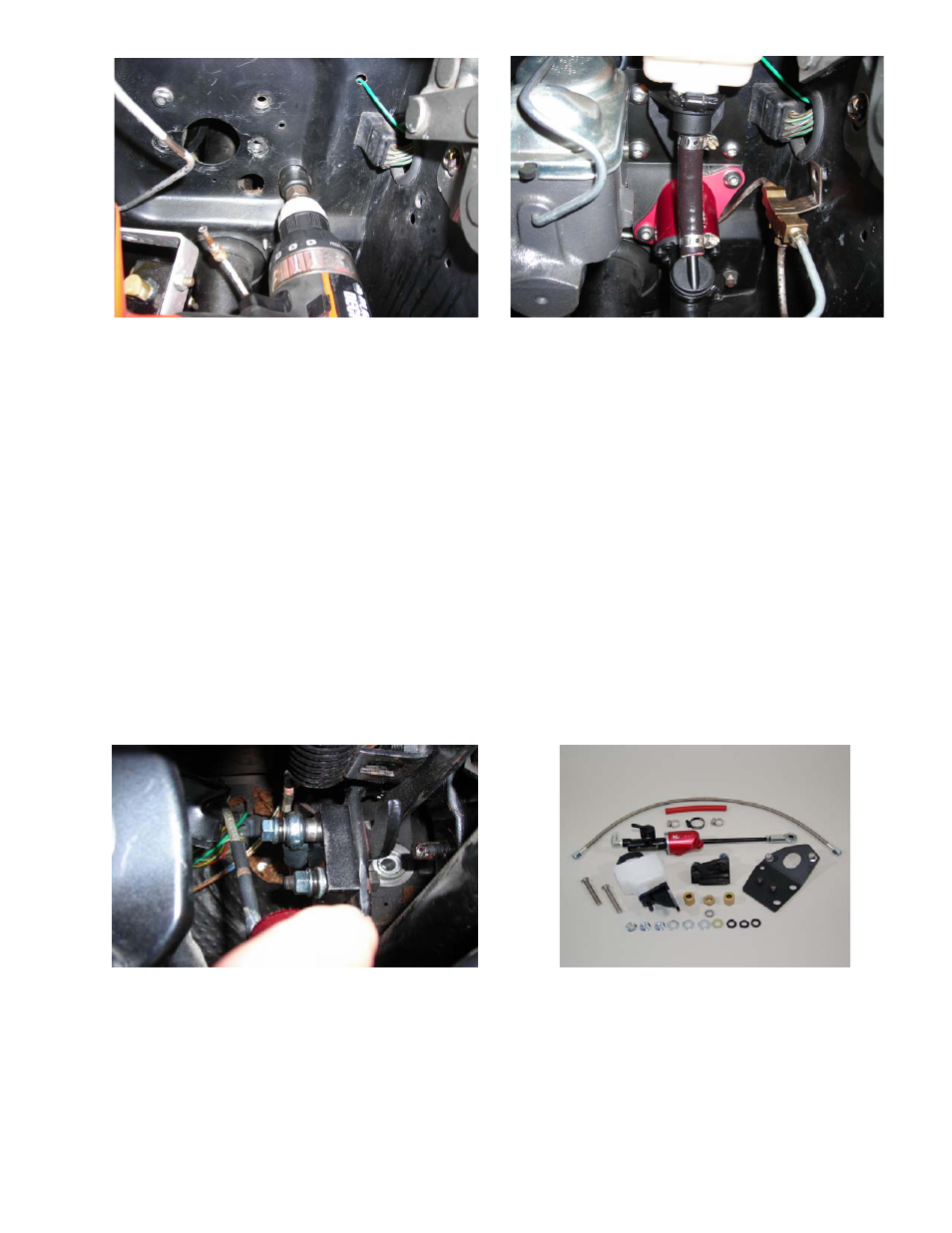

Figure 3 Figure 4
6) Assemble the McLeod master cylinder to the mounting plate with supplied button head silver
screws and lock washers. Tighten screws securely. Re-install the factory brake master cylinder to
the firewall. Install the mounting plate/McLeod master cylinder assembly, passing the pushrod
through the firewall. Attach the mounting plate with appropriate spacers and fasteners to the
firewall. The third mounting location uses a 3/8-16 x 1” bolt, lock washer and nut. Tighten all
three fasteners securely.
7) Install the pedal bracket, with the stud at the top, to the pedal under the dash. Install the .200”
spacer onto the stud; place the rod end on the end of the push rod over the stud with the lock
washer and nut. Remove the heavy pedal return spring from the pedal if present. Swing the pedal
through its range of motion to be certain there is no interference with any component including
wires and or hoses. See Figure 5.
8) Mount the master cylinder reservoir to the mounting plate with the supplied black button head
screws. Connect the reservoir to the master cylinder with the red hose. Secure the reservoir and
hose with supplied clamps (3). See Figure 4
Figure 5 Figure 6
9) Connect the McLeod master cylinder to the slave cylinder with the supplied AN4 line. Fill the
master cylinder with Dot 3 or 4 brake fluid (Do not use synthetic brake fluid!) and bleed system
completely.
10) Adjustments to the pedal height can be made at the rod end attached to the bracket on the brake
pedal. Be certain to tighten the rod end jam nut when adjustment is complete.
11) Re-install the brake lines to the brake master cylinder and bleed the brakes. I0011
