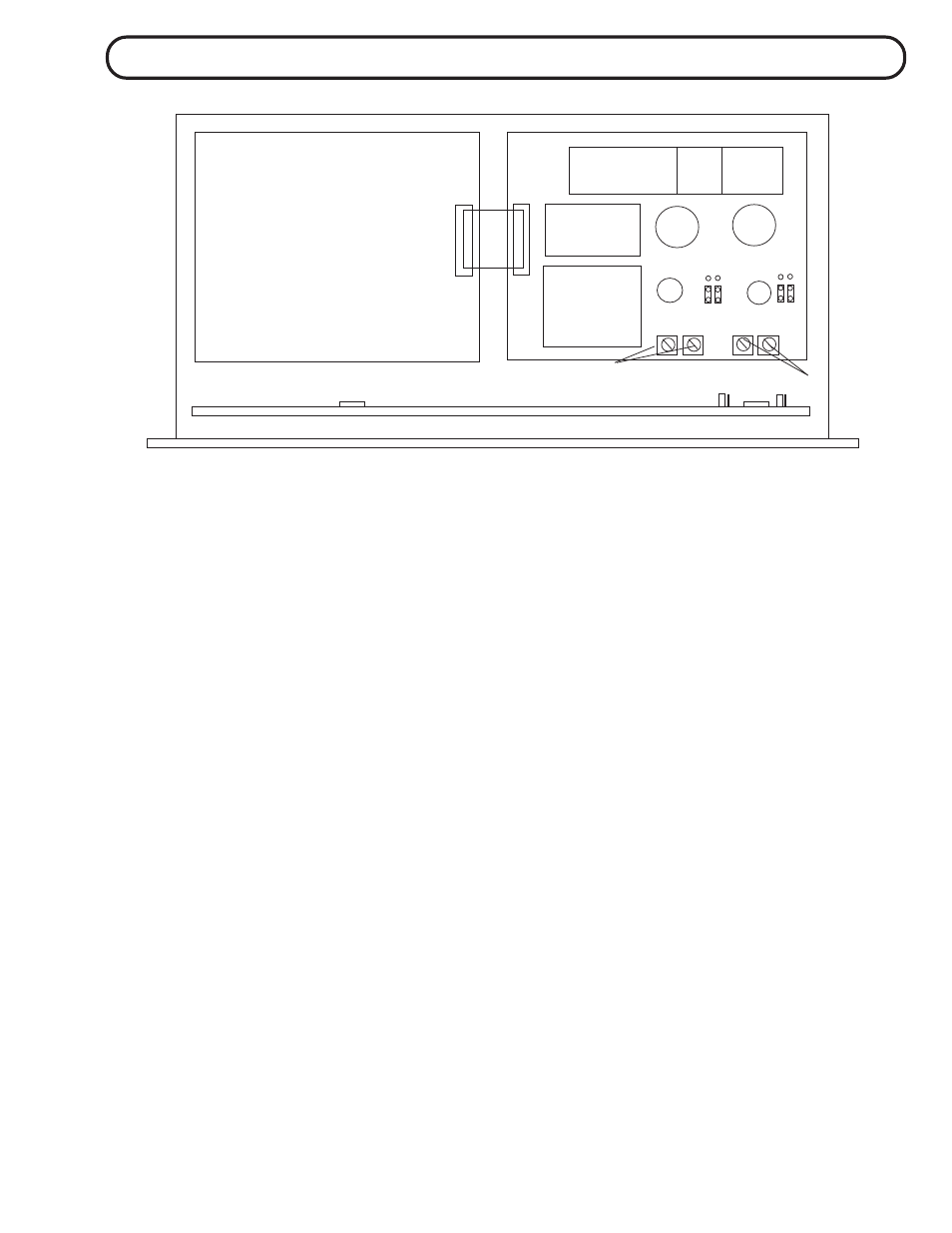

INTERNAL ADJUSTMENTS

INTERNAL ADJUSTMENTS

INTERNAL ADJUSTMENTS

INTERNAL ADJUSTMENTS

INTERNAL ADJUSTMENTS

7044

7044

LEFT

RIGHT

DIGITAL to

ANALOG

CONVERTER

LEFT GAIN

TRIM

RIGHT GAIN

TRIM

The gain of the Wave's tube stages are set at the factory. There are only 4 trimmers (2 per

channel) but because the input to the line amplifier is balanced and it is a minimum feedback design,
it requires a trimmer for each phase or leg. So both trimmers affect the gain and the "balance" of the
two trimmers affect common mode rejection. Yes, this could have been made more convenient, but
it would have compromised some sonic performance.

The method to adjust these requires an oscillator, AC voltmeter, CD test disk with 1K digital

full scale and a special banana to XLR M cable that allows the oscillator to send between: a) pin 1 &
pin 2, b) pin 1 & pin 3, c) pin 2 & pin 3 (normal balanced) and d) between pin1 & pin2+pin3 (for
CMRR). These tests are done with the Volume control turned up full, the appropriate input selected
(nothing else) and no amplifiers connected and the Wave well warmed up.
It is not difficult but be careful - high voltages are right around the tubes. Use an insulated
screwdriver, keep one hand in your pocket and don't touch the screwdriver to any other parts.

With the oscillator set to 1 kHz and 1 volt AC RMS and the AC voltmeter meter reading Output A of
the same channel and the special cable hooked up for:

test a) the output should read

1.3

volts. If not adjust trimmer

1

test b) the output should read

1.3

volts. If not adjust trimmer

2

Repeat this several times due to interaction between the trims.
test c) should now read

4.5

volts. If not, make sure you did a) and b) correctly.

test d) should read 0.0 volts and common mode cancellation should occur.

You may have to slightly & carefully tweak either trimmer 1 or 2 to provide the deepest cancellation
and you should either switch the meter to the most sensitive scale or adjust this while listening to the
output and trimming for the lowest possible signal. If you attempt to do this listening to the output,
be careful, slow and don't change any cables until you turn off the amps. A sudden change from a
tiny signal to full tilt 1K oscillator can easily blow a speaker.
Amps are off, back to using the AC voltmeter? Good, insert the test CD, select that digital input and
the 1K full scale track. You should read 2 volts now.

OUTPUT

SELECTION

(& MUTE)

INSERT

INPUT

SELECTION

1 2 3 4

P-04,P-05

SW-016

SW-015

P-06

PASSIVE

ANTI-

ALIAS

FILTERS

REGULATORS

& WARM-UP

DELAY

1
2

3

HIFI

MASTER

1
2

3

HIFI

MASTER

12AX7

12AX7

JUMPER SETTING FOR

AMPLIFIER GAIN

2,3=FACTORY SET

1,2=+18DBM(MASTER)

NO JUMPER=+24BDM

(PROFESSIONAL)
