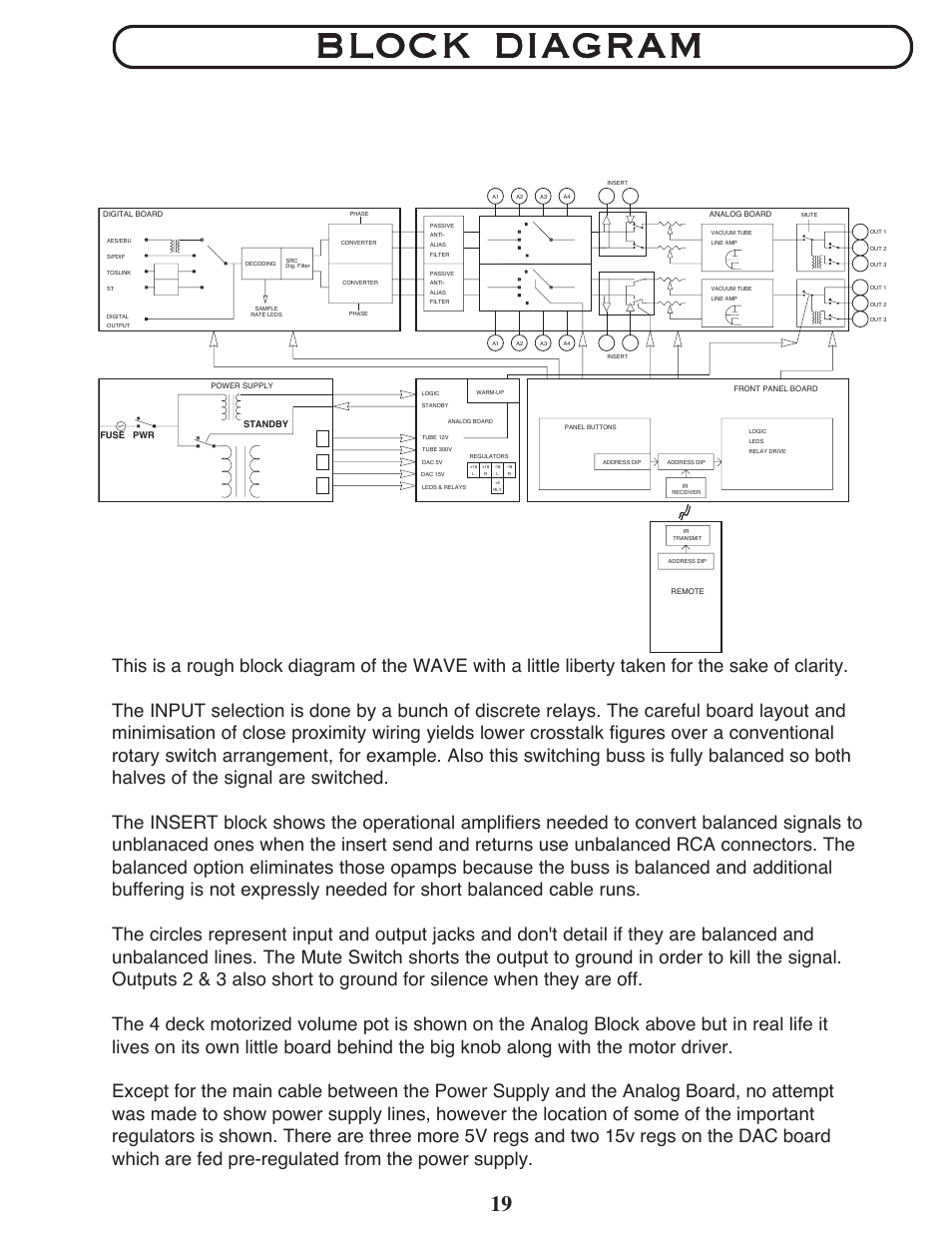

Block diagram – Manley The WAVE DAC/Preamp 24/96 Version Serial Code WAVE016-present 2002 - present User Manual
Page 19
