King of Fans Fulton - Manual (Page 9)

from the receiver unit to the white wire
from the fan assembly.
5. Connect the black wire (To Motor L)
from the receiver unit to the black wire
from the fan assembly.
6. Connect the blue wire (For Light)
from the receiver unit to the blue wire
from the fan.
After wires are connected, carefully tuck
them into the electrical box. Insert the
receiver unit into the mounting plate;
make sure the black antenna wire sits on
top of the receiver unit.
NOTE
THE FREQUENCIES ON YOUR RECEIVER AND
TRANSMITTER HAVE BEEN PRESET AT THE
FACTORY, BEFORE INSTALLING THE
RECEIVER, MAKE SURE THE DIP SWITCHES
ON THE RECEIVER AND TRANSMITTER ARE
SET TO THE SAME FREQUENCY. THE DIP
SWITCHES ON THE TRANSMITTER ARE
LOCATED INSIDE THE BATTERY
COMPARTMENT.
WARNING
EACH WIRE NUT (WIRE CONNECTOR)
SUPPLIED WITH THIS FAN IS DESIGNED TO
ACCEPT UP TO ONE 12 GAUGE HOUSE WIRE
AND TWO WIRES FROM THE FAN. IF YOU
HAVE LARGER THAN 12 GAUGE HOUSE
WIRING OR MORE THAN ONE HOUSE WIRE TO
CONNECT TO THE FAN WIRING, CONSULT AN
ELECTRICIAN FOR THE PROPER SIZE WIRE
NUTS TO USE.

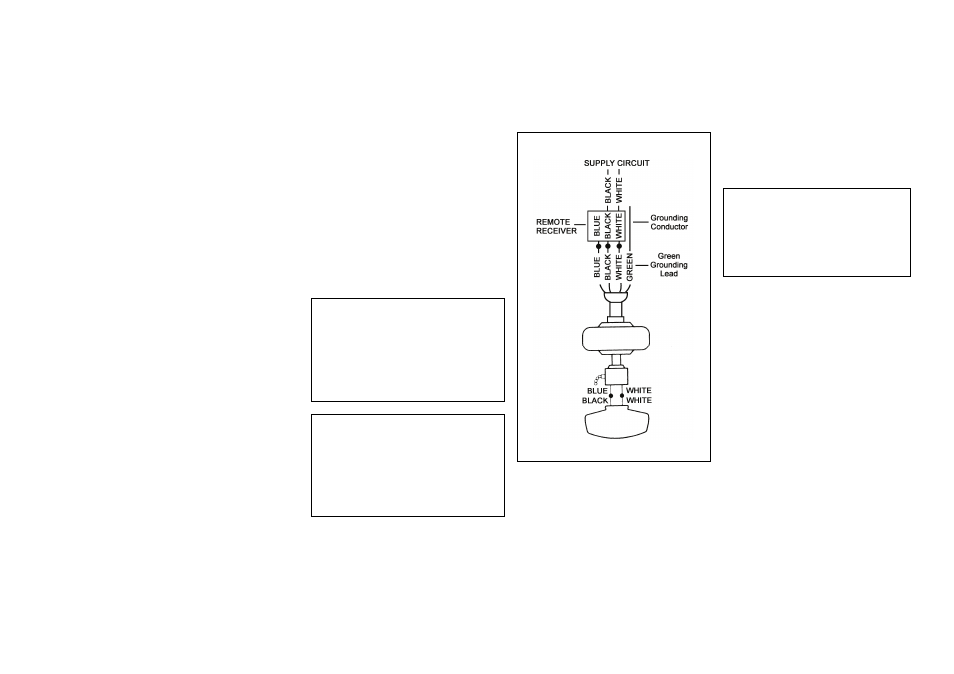

Figure 9
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
WARNING
WHEN USING THE STANDARD
BALL/DOWNROD MOUNTING, THE TAB IN
THE RING AT THE BOTTOM OF THE
MOUNTING PLATE MUST REST IN THE
GROOVE OF THE HANGER BALL. FAILURE
TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO
WIRING.
1. Align the locking slots of the
ceiling canopy with the two screws in
the mounting plate. Push up to engage
the slots and turn clockwise to lock in
place. Immediately tighten the two
mounting screws firmly.
2. Install the remaining two mounting
screws into the holes in the canopy and
tighten firmly.
3. Install the decorative canopy ring
by aligning the ring' s slots with the
screws in the canopy. Rotate the ring
clockwise to lock in place.
4. You may now proceed to attaching
the fan blades.
6.
